F225CET (2012)
CYLINDER & CRANKCASE 1

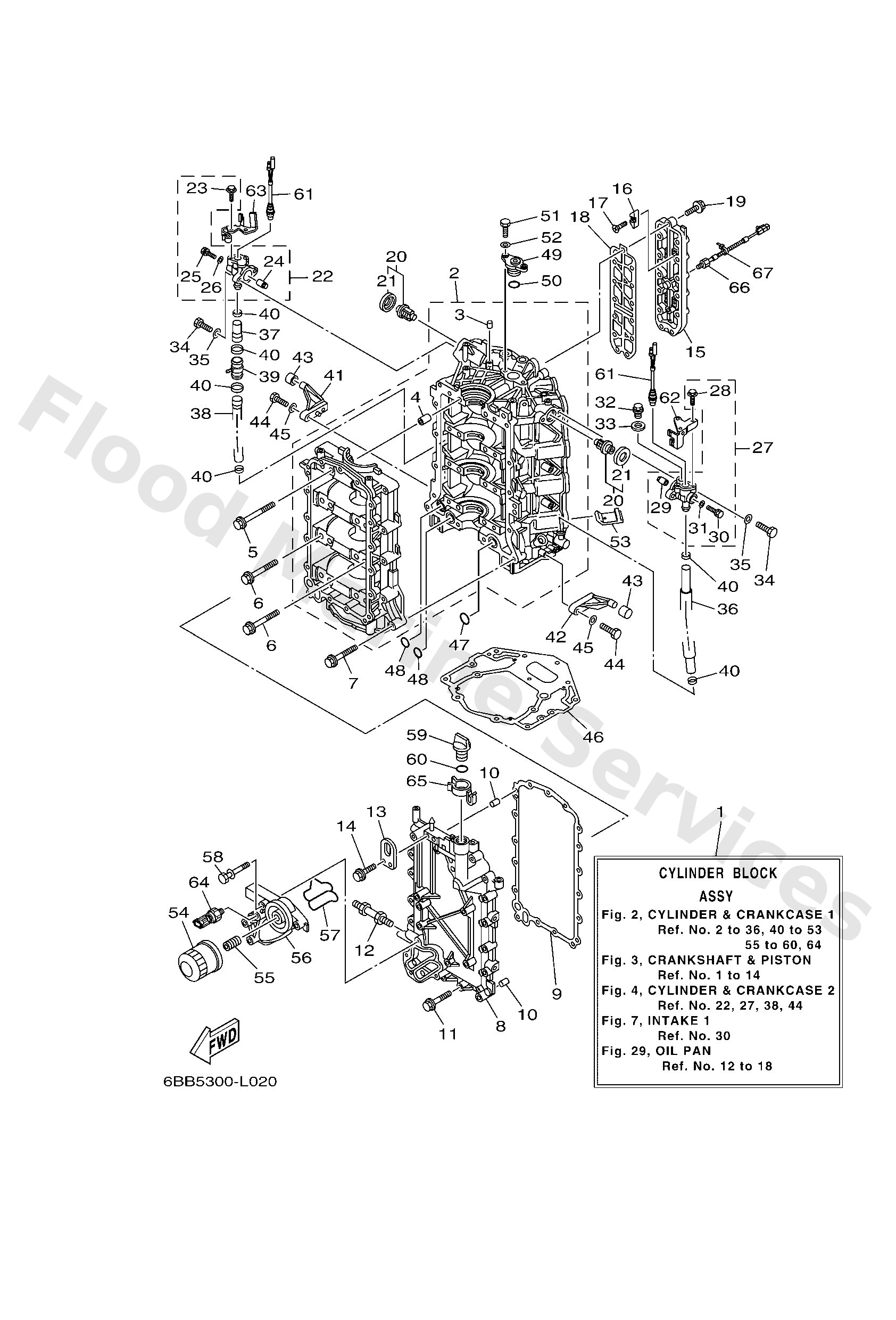

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6P2W009B069S
Go to P/N)PE0-OM-130025
Cylinder Block assembly
Loading…
↗
2
6P21510010
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9181418002
Pin, dowel
Loading…
↗
5
6P21518700
Bolt
Loading…
↗
6
6P21548100
Bolt 1
Loading…
↗
7
9011908M66
Bolt, with washer
Loading…
↗
8
6P215411019S
Cover, crankcase 1
Loading…
↗
9
69J1545100
Gasket, crankcase cover 1
Loading…
↗
11
9011908009
Bolt, with washer
Loading…
↗
12
9011610027
Bolt, stud
Loading…
↗
13
69J1111900
Hanger, engine
Loading…
↗
14
9010506M09
Bolt, flange
Loading…
↗
15
6P21131C009S
Cover, joint
Loading…
↗
16
6E51132500
Anode
Loading…
↗
17
9878004015
Screw, flat head(ga5)
Loading…
↗
18
6P21131B00
Gasket, cover
Loading…
↗
19
9011906MA4
Bolt, with washer
Loading…
↗
20
67F1241101
Thermostat
Loading…
↗
21
67F1241200
Seal, thermostat
Loading…
↗
22
6P21240H009S
Anode assembly
Loading…
↗
23
9010906M80
Bolt
Loading…
↗
24
6P31132500
Anode
Loading…
↗
25
9010505012
Screw, hexagon
Loading…
↗
26
9043005002
Gasket
Loading…
↗
27
6P31240H009S
Anode assembly
Loading…
↗
32
9034014M06
Plug, straight screw(62y)
Loading…
↗
33
9043014115
Gasket (663)
Loading…
↗
34
9709506025
Bolt
Loading…
↗
35
9299506600
Washer, plain (646)
Loading…
↗
36
6P21243A00
Hose 1
Loading…
↗
37
6P21243E00
Hose 2
Loading…
↗
38
6P21243F00
Hose,3
Loading…
↗
39
6S12437800
Pipe, joint 3
Loading…
↗
40
9046511M59
Clamp(63m)
Loading…
↗
41
67F4276101
Stopper
Loading…
↗
42
6P24276100
Stopper
Loading…
↗
43
68F4453301
Damper, upper mount rubber
Loading…
↗
46
69J1135111
Gasket, cylinder
Loading…
↗
47
9321025552
O-ring (22f)
Loading…
↗
48
9321019MJ1
O-ring
Loading…
↗
49
69J1131300
Plug, blind
Loading…
↗
50
9321025647
O-ring (7or)
Loading…
↗
51
9709506020
Bolt(7u8)
Loading…
↗
53
69J1466400
Grommet, water shut
Loading…
↗
54
69J1344001
Element assembly, oil cleaner
Loading…
↗
55
6S51285800
Bolt, union
Loading…
↗
56
6P213446009S
Connector
Loading…
↗
57
6P21347700
Gasket
Loading…
↗
58
9011906025
Bolt, with washer
Loading…
↗
59
6G81536300
Plug, oil
Loading…
↗
60
9321024M79
O-ring
Loading…
↗
61
6P28256001
Thermo switch assembly
Loading…
↗
62
6P28258800
Plate
Loading…
↗
63
6P28238900
Plate 2
Loading…
↗
64
6AW8365100
Sender, oil pressure
Loading…
↗
65
6P28359700
Clamp
Loading…
↗
66
6P28578000
Sensor, knock
Loading…
↗
67
9046511M10
Clamp
Loading…
↗
2
1
B *Part number revision
6Dv-82590-00
Loading…
↗
2
6P21141700
--, 3 UR #1
Plane bearing, crankshaft 2
Loading…
↗
5
6P21141710
Plane bearing, crankshaft 2
Loading…
↗
5
6P21141720
--, 3 UR #3
Plane bearing, crankshaft 2
Loading…
↗
5
6AW1142600
Bearing, thrust 1
Loading…
↗
6
item_description
Loading…
↗
7
6AW1142700
Bearing, thrust 2
Loading…
↗
