F225FET (2020)
CYLINDER & CRANKCASE 1

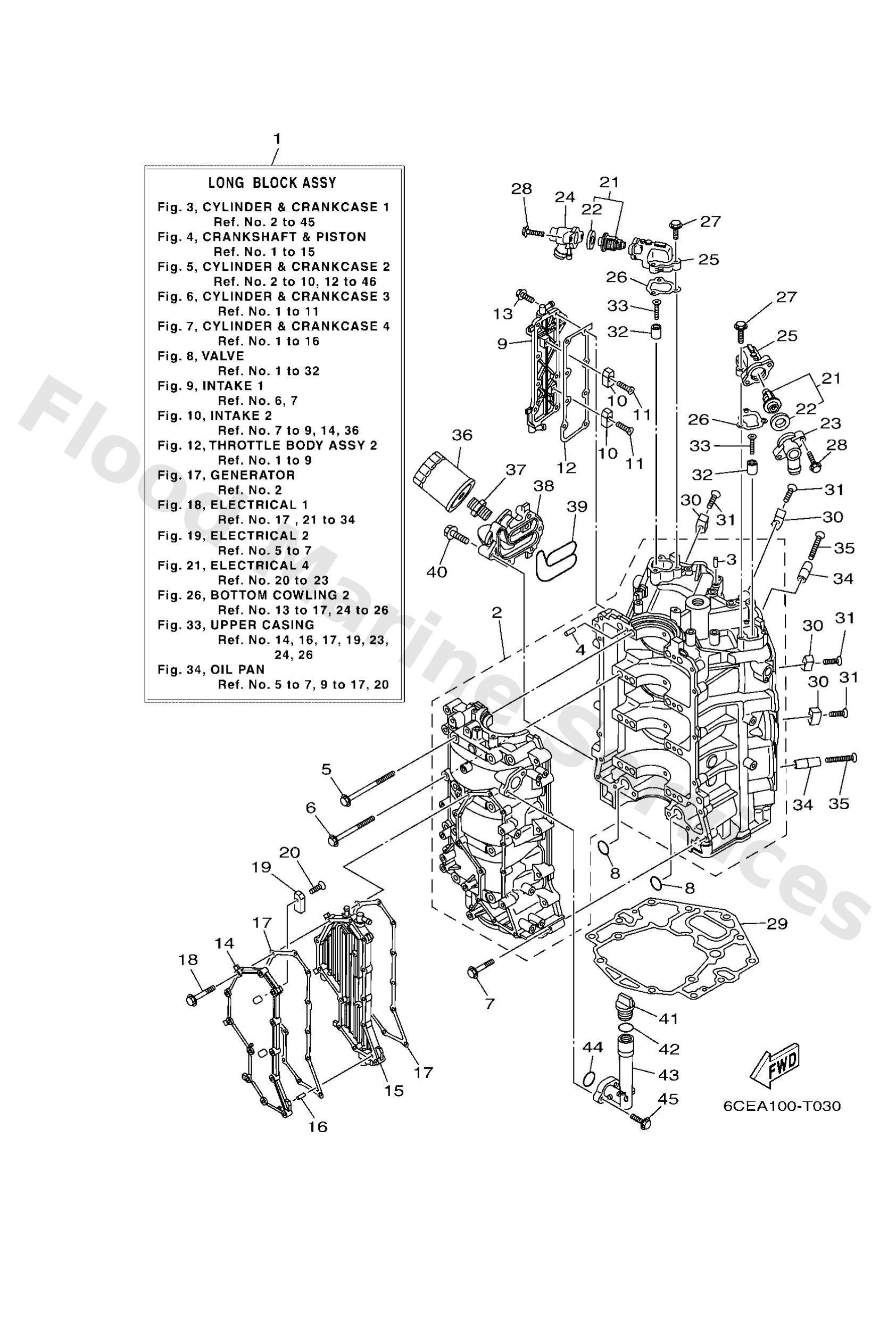

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6CE1100003
Long block assembly
Loading…
↗
2
6CE1510010
Crankcase & plate set
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
5
6CB1518700
Bolt
Loading…
↗
6
6CB1548100
Bolt 1
Loading…
↗
7
9010508175
Bolt, flange
Loading…
↗
8
9321026658
O-ring(36y)
Loading…
↗
9
6CE1131C009S
Cover, joint
Loading…
↗
10
63P1132501
Anode
Loading…
↗
11
9015106M02
Screw, countersunk
Loading…
↗
12
6CB1131B00
Gasket, cover
Loading…
↗
13
9010506M07
Bolt (689)
Loading…
↗
14
6CE15411009S
Cover, crankcase 1
Loading…
↗
15
6CE15421109S
Cover, crankcase 2
Loading…
↗
16
9169040010
Pin, spring
Loading…
↗
17
6CB1545101
Gasket, crankcase cover 1
Loading…
↗
18
9010506151
Bolt, flange
Loading…
↗
21
6CE1241100
Thermostat
Loading…
↗
22
67F1241200
Seal, thermostat
Loading…
↗
23
6CE12413B09S
Cover, thermostat
Loading…
↗
24
6CE12413A09S
Cover, thermostat
Loading…
↗
25
6CB12422109S
Cover, housing
Loading…
↗
26
6CB1242711
Gasket, housing cover 1
Loading…
↗
27
9502706025
Bolt, washer based(4kg)
Loading…
↗
28
9010506037
Bolt, flange
Loading…
↗
29
6CB1135100
Gasket, cylinder
Loading…
↗
30
6AW1132P00
Anode 5
Loading…
↗
31
9878006530
Screw, flat head
Loading…
↗
32
68T1132500
Anode
Loading…
↗
33
9015105M05
Screw, countersunk
Loading…
↗
34
6AW1132N01
Anode 4
Loading…
↗
35
9878006550
Screw flat head
Loading…
↗
36
N261344003
Element assembly, oil cleaner
Loading…
↗
37
9040119001
Bolt, union
Loading…
↗
38
6CE13446109S
Connector
Loading…
↗
39
6CB1347700
Gasket
Loading…
↗
41
6G81536300
Plug, oil
Loading…
↗
42
9321024M79
O-ring
Loading…
↗
43
6CB1531900
Joint
Loading…
↗
44
9321027370
O-ring(1kt)
Loading…
↗
