F25AE (2009)
CYLINDER & CRANKCASE 1

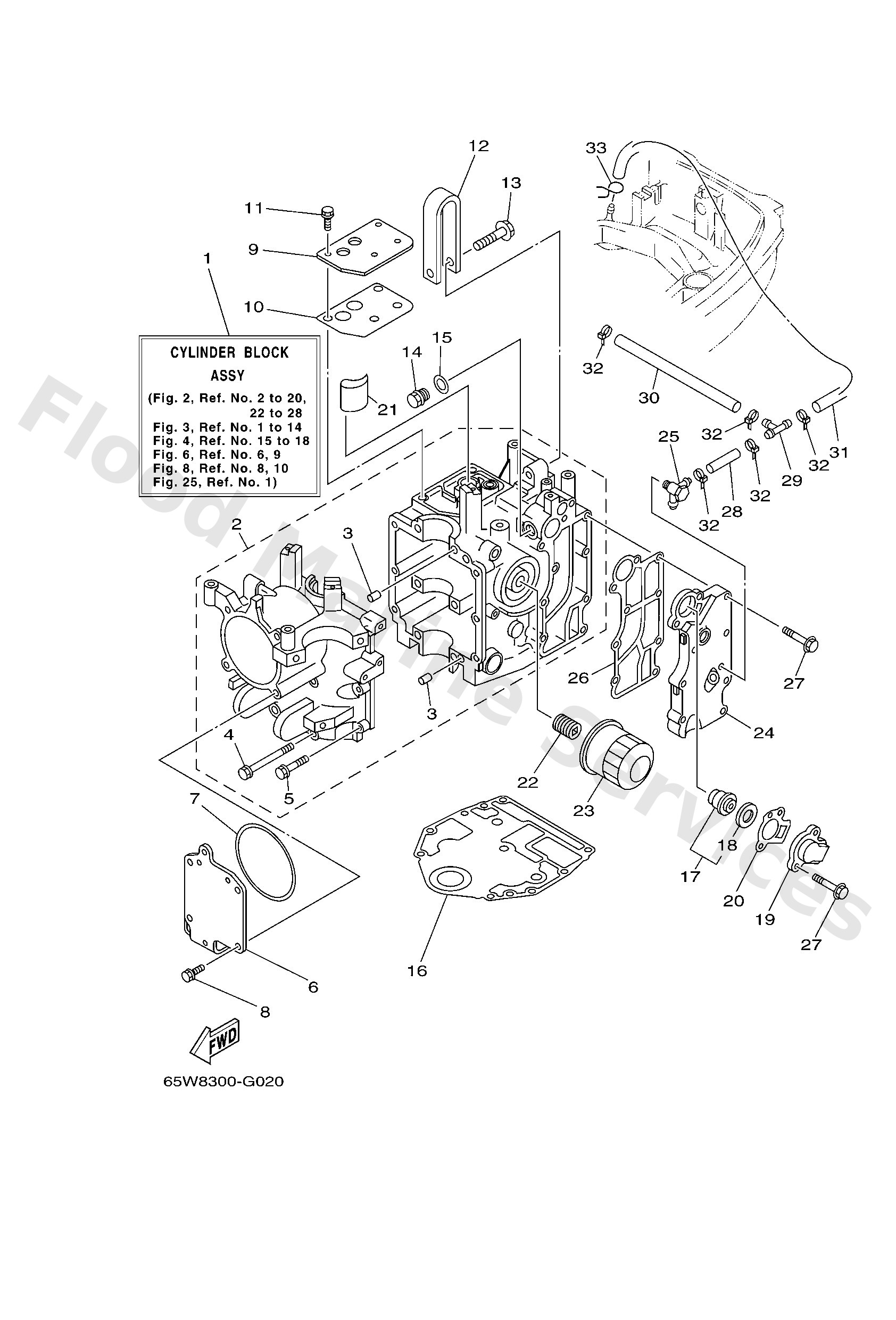

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
65WW009B121S
Cylinder Block assembly
Loading…
↗
2
65W15100111S
Crankcase assembly
Loading…
↗
3
9953008012
Pin, dowel(6g8)
Loading…
↗
4
9011908M01
Bolt, with washer(62y)
Loading…
↗
5
9011906MA5
Bolt, with washer
Loading…
↗
6
65W1512101
Crankcase 2
Loading…
↗
7
65W1566300
Seal
Loading…
↗
8
65W1222800
Bolt
Loading…
↗
9
65W1116801
-
Loading…
↗
10
65W1116901
Gasket, breather cover
Loading…
↗
12
65W1111900
2 – 11
Loading…
↗
13
9010508M87
Bolt, washer based
Loading…
↗
14
9034014M06
Plug, straight screw(62y)
Loading…
↗
15
9043014115
Gasket (663)
Loading…
↗
16
65W1135110
Gasket, cylinder
Loading…
↗
17
6G81241103
Thermostat
Loading…
↗
18
6881241200
Seal, thermostat
Loading…
↗
19
6H312413001S
Cover, thermostat
Loading…
↗
20
62Y1241400
Gasket, cover
Loading…
↗
21
65W1328600
Cleaner
Loading…
↗
22
9040120M00
Bolt, union(62y)
Loading…
↗
23
5GH1344000
Element assembly, oil cleaner
Loading…
↗
24
65W41113101S
Outer cover, exhaust
Loading…
↗
25
62Y1137201
FLUSHING KIT
Nipple, hose
Loading…
↗
26
65W4111401
Gasket, exhaust outer cover
Loading…
↗
28
9044509068
Hose (l420)
Loading…
↗
29
6882437800
Pipe, joint
Loading…
↗
30
9044509095
Hose (L215)
Loading…
↗
31
9044509104
Hose (l1500)
Loading…
↗
32
9046511M10
Clamp
Loading…
↗
33
9046708004
Clip, pipe 6162435600
