F25GET (2018)
CYLINDER & CRANKCASE 1

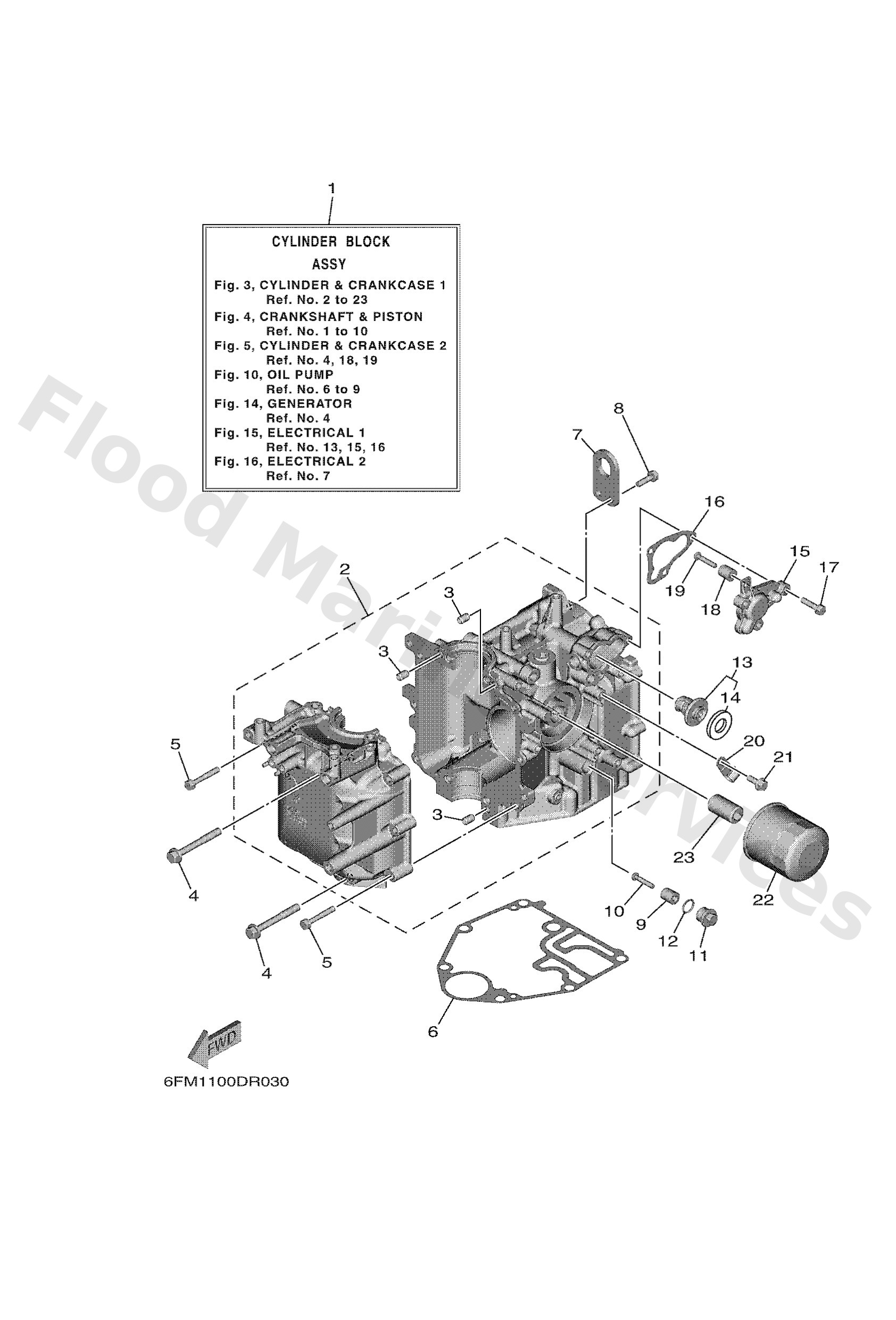

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6FMW009B001S
Cylinder block assembly
Loading…
↗
2
6FM1510000
Crankcase assembly
Loading…
↗
3
9953008012
Pin, dowel(6g8)
Loading…
↗
4
9011908093
Bolt, with washer
Loading…
↗
5
9751306540
Bolt, with washer(6l2)
Loading…
↗
6
6FM1135100
Gasket, cylinder
Loading…
↗
7
6FM1111900
Hanger, engine
Loading…
↗
8
9010506M07
Bolt (689)
Loading…
↗
9
6G81132500
Anode
Loading…
↗
10
9898005025
Screw, panhead (a93)
Loading…
↗
11
6G811197A0
Plug, blind
Loading…
↗
12
9321013M63
O-ring (6g8)
Loading…
↗
13
6FM1241100
Thermostat
Loading…
↗
14
6FM1241200
Seal, thermostat
Loading…
↗
15
6FM12413001S
Cover, thermostat
Loading…
↗
16
6FM1241400
Gasket, cover
Loading…
↗
17
9011906MA3
Bolt, with washer
Loading…
↗
20
9046508M83
Clamp
Loading…
↗
21
9589506016
Bolt, flange deep recess
Loading…
↗
22
5GH1344060
Element assembly, oil cleaner
Loading…
↗
23
6C51285800
Bolt, union
Loading…
↗
