F30BET (2024)
CYLINDER & CRANKCASE 1

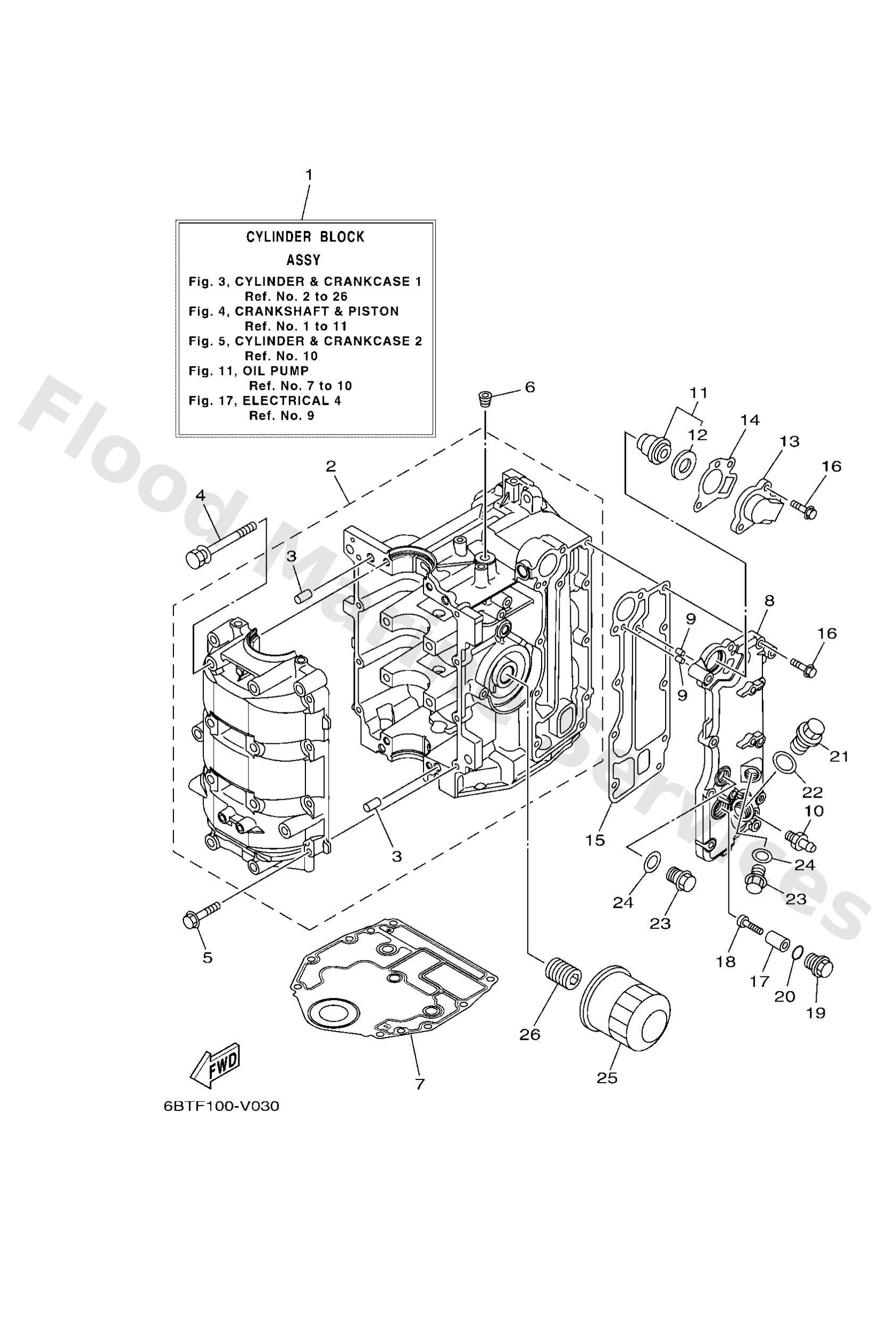

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6BGW009B031S
Cylinder block assembly
Loading…
↗
2
6BG15109011S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908154
Bolt, with washer
Loading…
↗
5
9751306535
Bolt(3rv)
Loading…
↗
6
9034451003
Plug, taper screw
Loading…
↗
7
6BG1135102
Gasket, cylinder
Loading…
↗
8
6BG41113001S
Outer cover, exhaust
Loading…
↗
9
9360410M03
Pin, dowel (688)
Loading…
↗
10
62Y1248110
Pipe 1
Loading…
↗
11
6G81241103
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
6BG12413001S
Cover, thermostat
Loading…
↗
14
62Y1241401
Gasket, cover
Loading…
↗
15
6BG4111400
Gasket, exhaust outer cover
Loading…
↗
16
9011906MA5
Bolt, with washer
Loading…
↗
17
6G81132500
Anode
Loading…
↗
18
9898005025
Screw, panhead (a93)
Loading…
↗
19
6G811197A0
Plug, blind
Loading…
↗
20
9321013M63
O-ring (6g8)
Loading…
↗
21
9034018M09
Plug, straight screw
Loading…
↗
22
90201186F1
Washer, plate (22f)
Loading…
↗
23
9034014M06
Plug, straight screw(62y)
Loading…
↗
24
9043014115
Gasket (663)
Loading…
↗
25
5GH1344080
Element assembly, oil cleaner
Loading…
↗
26
6C512858A0
Bolt, union
Loading…
↗
