F40CET (2004)
CYLINDER & CRANKCASE 1

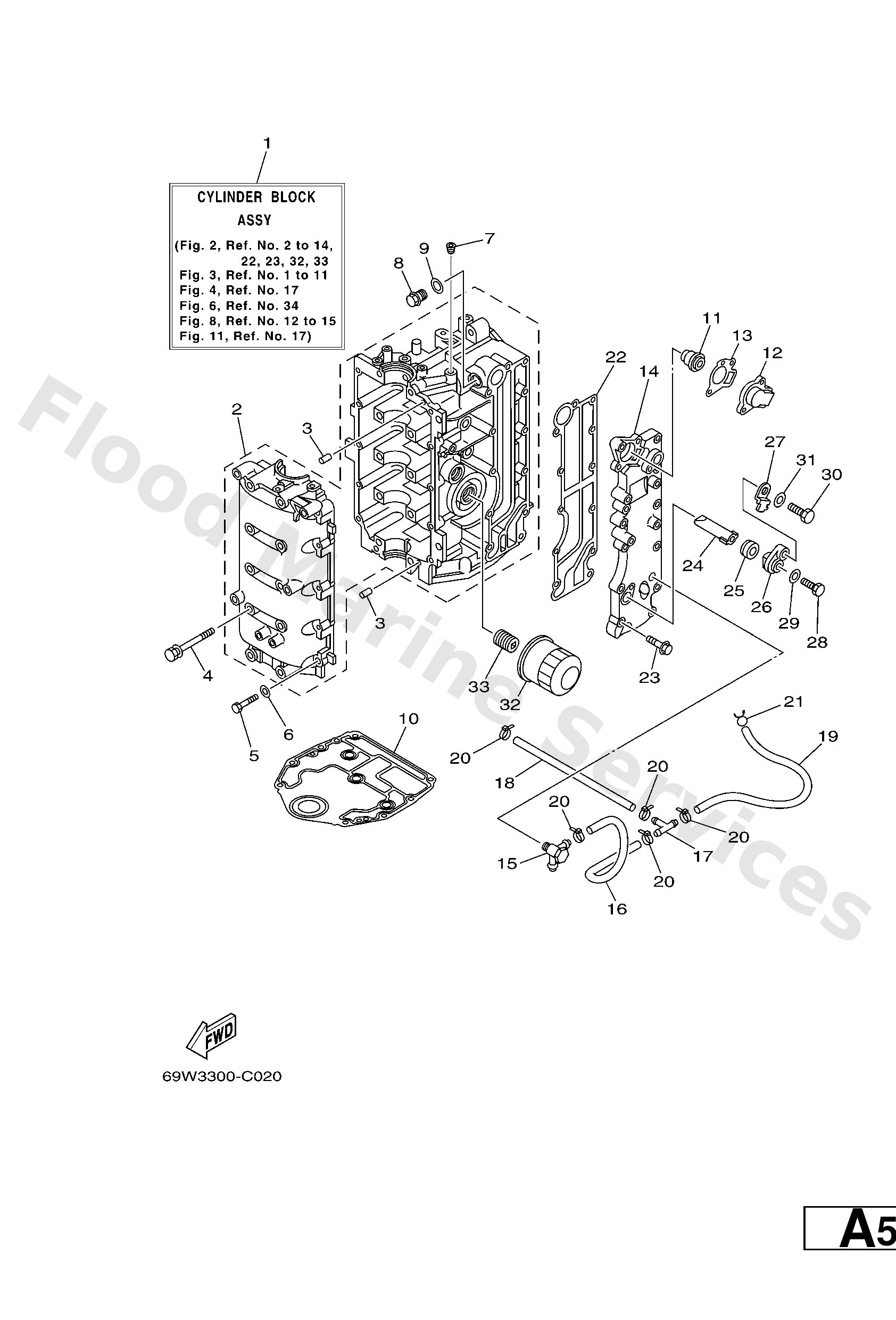

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
69WW009B011S
Cylinder Block assembly
Loading…
↗
2
69W15100001S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908M01
Bolt, with washer(62y)
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
9034451003
Plug, taper screw
Loading…
↗
8
9034014M06
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
67C1135101
Gasket, cylinder
Loading…
↗
11
6G81241102
Thermostat
Loading…
↗
12
6H312413001S
Cover, thermostat
Loading…
↗
13
62Y1241400
Gasket, cover
Loading…
↗
14
62Y41113201S
Outer Cover, Exhaust
Loading…
↗
15
62Y1137201
FLUSHING KIT
Nipple, hose
Loading…
↗
16
9044509068
Hose (l420)
Loading…
↗
17
6882437800
Pipe, joint
Loading…
↗
18
9044509095
Hose (L215)
Loading…
↗
19
9044509105
Hose (l420)
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
9046708M18
Clip
Loading…
↗
22
62Y4111400
Gasket, exhaust outer cover
Loading…
↗
23
9011906MA5
Bolt, with washer
Loading…
↗
24
62Y1132500
Anode
Loading…
↗
25
66M1132800
Grommet, anode
Loading…
↗
26
66M113270094
Cover, anode
Loading…
↗
27
66M1253500
Plate
Loading…
↗
28
9709505012
Bolt, hexagon
Loading…
↗
29
9299505600
Washer, plain (646)
Loading…
↗
30
9709506020
Bolt(7u8)
Loading…
↗
31
9299506600
Washer, plain (646)
Loading…
↗
32
5GH1344000
Element assembly, oil cleaner
Loading…
↗
33
9040120M00
Bolt, union(62y)
Loading…
↗
