F4AMH (2009)
CYLINDER & CRANKCASE 1

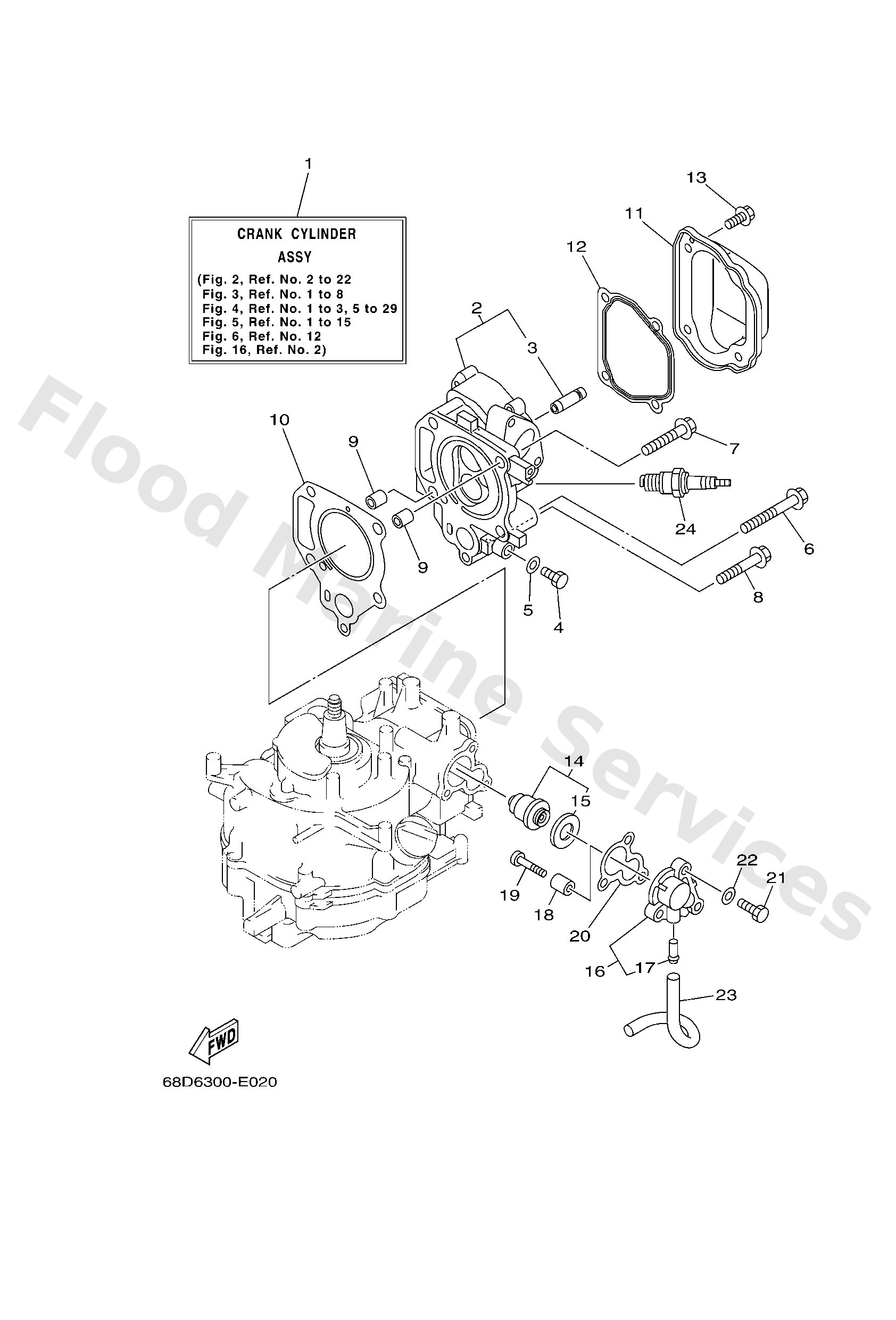

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
68DWE090111S
Crank Cylinder assembly
Loading…
↗
2
68DE1111101S
Head, Cylinder 1
Loading…
↗
3
67D1113310
Guide, valve 1
Loading…
↗
4
9709508014
Bolt, hexagon deep recess
Loading…
↗
5
9043008800
Gasket (256-11198-00)
Loading…
↗
6
9010508M36
Bolt (6g8)
Loading…
↗
7
9010508046
Bolt, flange
Loading…
↗
8
9010506056
Bolt, flange
Loading…
↗
9
9951010114
Pin, dowel(3vd)
Loading…
↗
10
67D11181A0
Gasket, cylinder head 1
Loading…
↗
11
67D1119100
Cover, cylinder head 1
Loading…
↗
12
68DE1193A0
Gasket head cover
Loading…
↗
13
9010506039
Bolt, flange
Loading…
↗
14
66M1241101
Thermostat
Loading…
↗
15
6881241200
Seal, thermostat
Loading…
↗
16
68DE2413001S
Cover, thermostat
Loading…
↗
17
6502437800
Pipe, joint 2
Loading…
↗
18
68DE132500
Anode
Loading…
↗
19
9788005025
Screw, panhead (a93)
Loading…
↗
20
68DE2414A0
Gasket, cover
Loading…
↗
21
9709506020
Bolt(7u8)
Loading…
↗
22
9299506600
Washer, plain (646)
Loading…
↗
23
9044509807
Hose (l180)
Loading…
↗
24
9470200248
Plug, spark (br6hs)
