F5AMH (2019)
CYLINDER & CRANKCASE 1

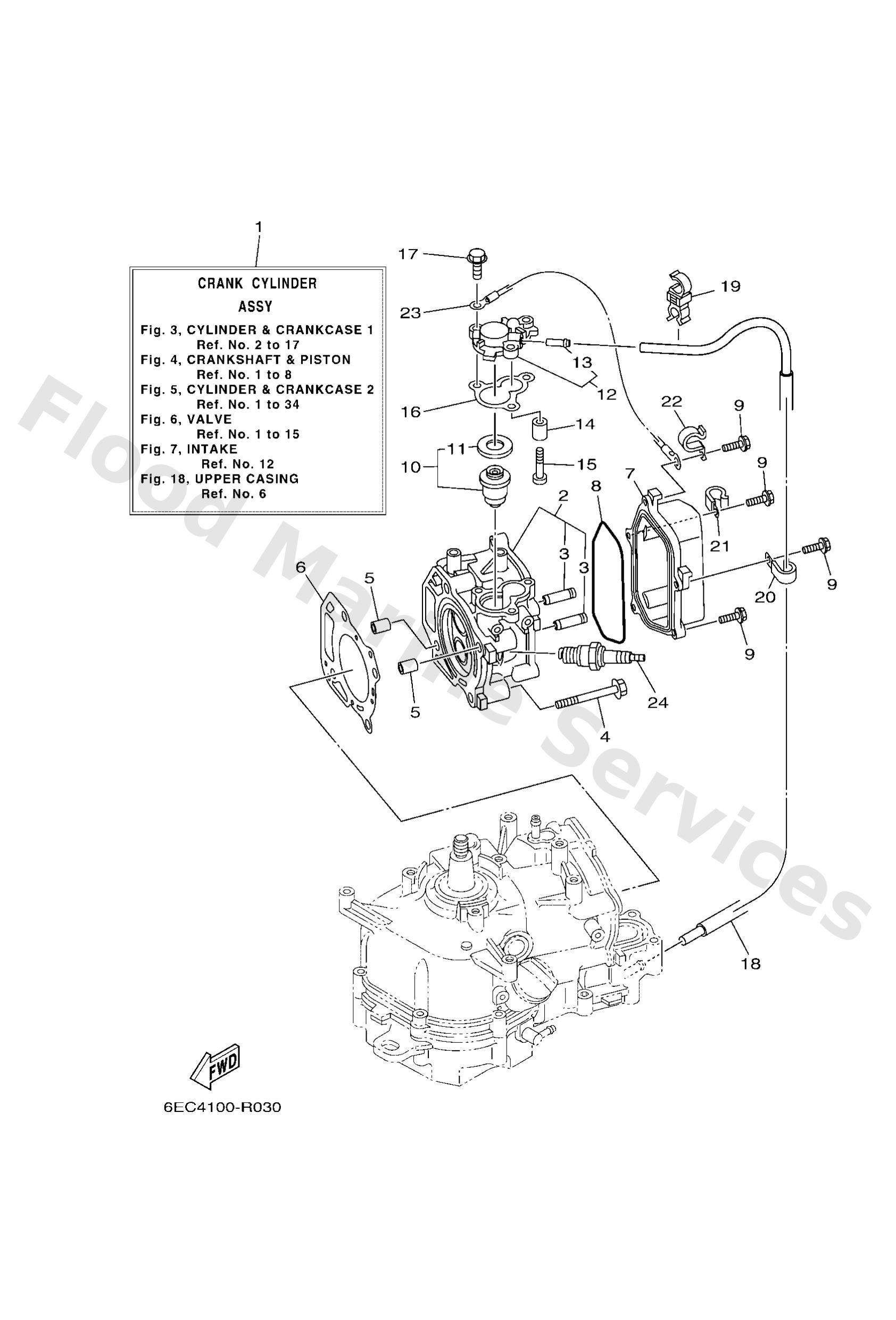

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6EEWE090011S
Crank cylinder ass
Loading…
↗
2
6EEE1111001S
Head, cylinder 1
Loading…
↗
3
6EEE113310
Guide, valve 1
Loading…
↗
4
9010508M36
Bolt (6g8)
Loading…
↗
5
9953010114
Pin, dowel(3vd)
Loading…
↗
6
6BX1118100
Gasket, cylinder head 1
Loading…
↗
7
6EEE119100
Cover, cylinder he
Loading…
↗
8
6EEE135600
Seal, cylinder 2
Loading…
↗
9
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
10
66M1241101
Thermostat
Loading…
↗
11
6881241200
Seal, thermostat
Loading…
↗
12
6EEE2413001S
Cover, thermostat
Loading…
↗
13
6EEF437700
Pipe, joint 2
Loading…
↗
14
6G81132500
Anode
Loading…
↗
15
9788005025
Screw, panhead (a93)
Loading…
↗
16
67D12414A0
Gasket, cover
Loading…
↗
17
9011906MA2
Bolt, with washer
Loading…
↗
18
6EEF432300
Pipe 12
Loading…
↗
19
9046409021
Clamp
Loading…
↗
20
9046506M86
Clamp
Loading…
↗
22
9046508371
Clamp(4km)
Loading…
↗
23
6EEH251900
Wire, earth lead
Loading…
↗
24
9470200372
Plug, spark (cr6hsb)
Loading…
↗
