F60AET (2007)
CYLINDER & CRANKCASE 1

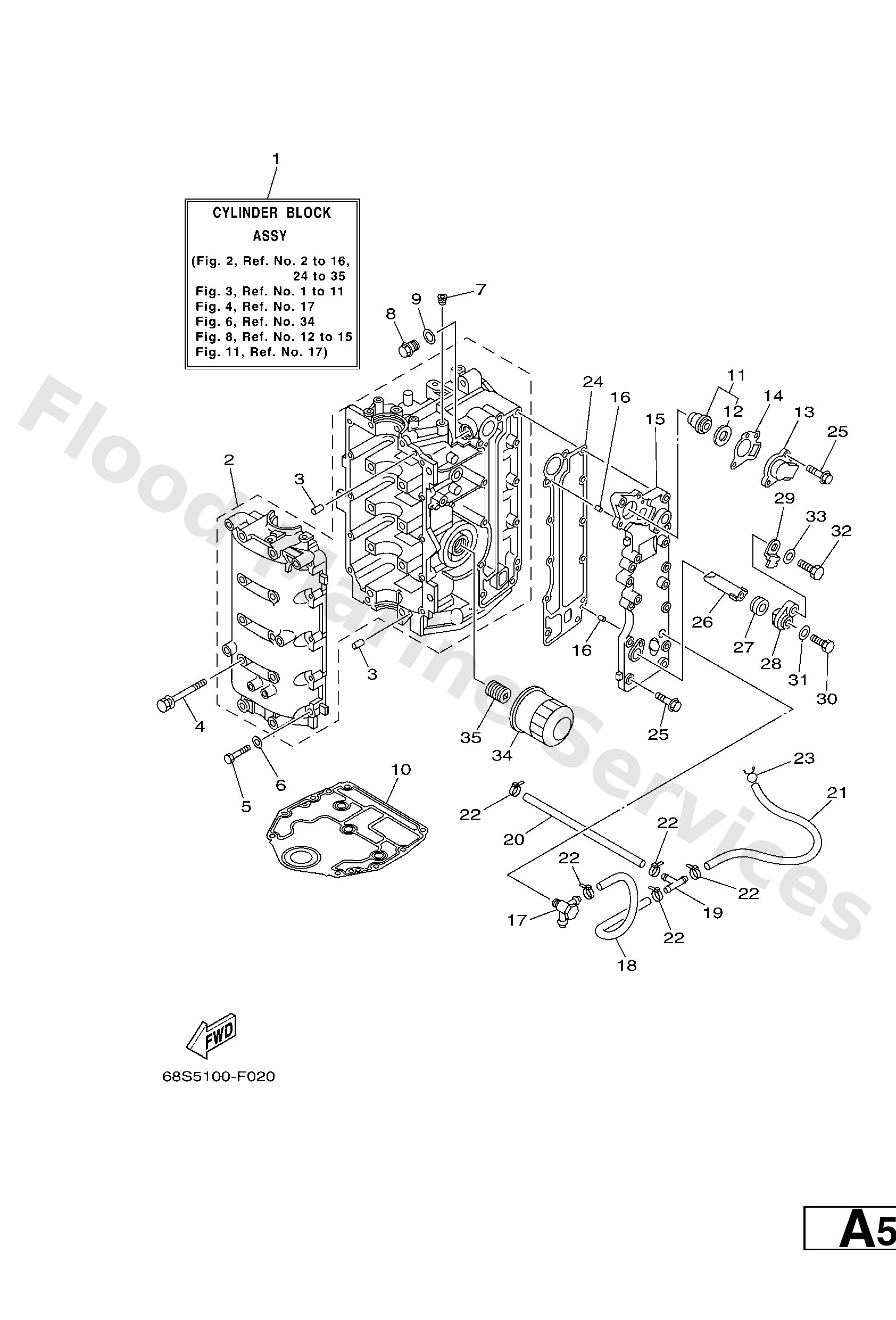

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
69WW009B021S
-
Loading…
↗
2
69W15100101S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908M01
Bolt, with washer(62y)
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
9034451003
Plug, taper screw
Loading…
↗
8
9034014M06
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
67C1135101
Gasket, cylinder
Loading…
↗
11
6G81241103
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
6C512413001S
Cover, thermostat
Loading…
↗
14
62Y1241400
Gasket, cover
Loading…
↗
15
69W41113001S
Outer Cover, Exhaust
Loading…
↗
16
9360410M03
Pin, dowel (688)
Loading…
↗
17
62Y1137201
FLUSHING KIT
Nipple, hose
Loading…
↗
18
9044509068
Hose (l420)
Loading…
↗
19
6882437800
Pipe, joint
Loading…
↗
20
9044509095
Hose (L215)
Loading…
↗
21
9044509104
Hose (l1500)
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
9046708M18
Clip
Loading…
↗
24
6C54111410
Gasket, exhaust outer cover
Loading…
↗
25
9011906MA5
Bolt, with washer
Loading…
↗
26
62Y1132500
Anode
Loading…
↗
27
66M1132800
Grommet, anode
Loading…
↗
28
66M113270094
Cover, anode
Loading…
↗
29
66M1253500
Plate
Loading…
↗
30
9709505012
Bolt, hexagon
Loading…
↗
31
9299505600
Washer, plain (646)
Loading…
↗
32
9709506020
Bolt(7u8)
Loading…
↗
33
9299506600
Washer, plain (646)
Loading…
↗
34
5GH1344020
Element assembly, oil cleaner
Loading…
↗
35
6C51285800
Bolt, union
Loading…
↗
