F6AMH (2004)
CYLINDER & CRANKCASE 1

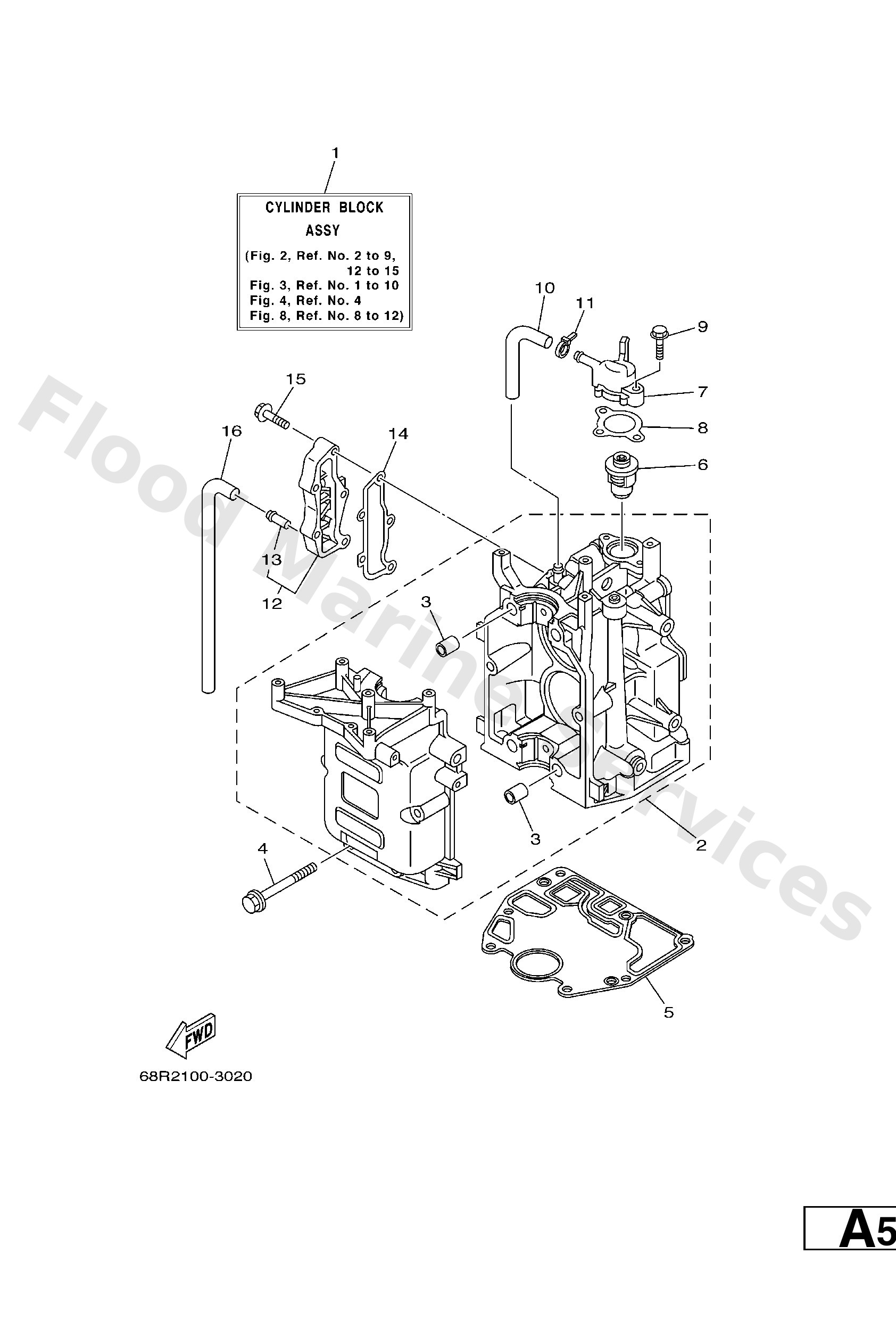

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
68TW009B101S
Cylinder block ass'y
Loading…
↗
2
68T15100101S
Crank case assembly
Loading…
↗
3
9953012016
Pin, dowel
Loading…
↗
4
9011908M29
Bolt, with washer
Loading…
↗
5
68T1135100
Gasket, cylinder
Loading…
↗
6
66M1241100
Thermostat
Loading…
↗
7
68T12413001S
Cover, thermostat
Loading…
↗
8
6G812414A0
Gasket, cover
Loading…
↗
9
9011906MA2
Bolt, with washer
Loading…
↗
10
68T1248100
Pipe 1
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
68T41113001S
Outer cover, exhaust
Loading…
↗
13
6E92437800
Pipe, Joint 3
Loading…
↗
14
68T41114A0
Gasket, exhaust outer cover
Loading…
↗
15
9011906MA3
Bolt, with washer
Loading…
↗
16
68T1248200
Pipe 2
Loading…
↗
