F6CMH (2014)
CYLINDER & CRANKCASE 1

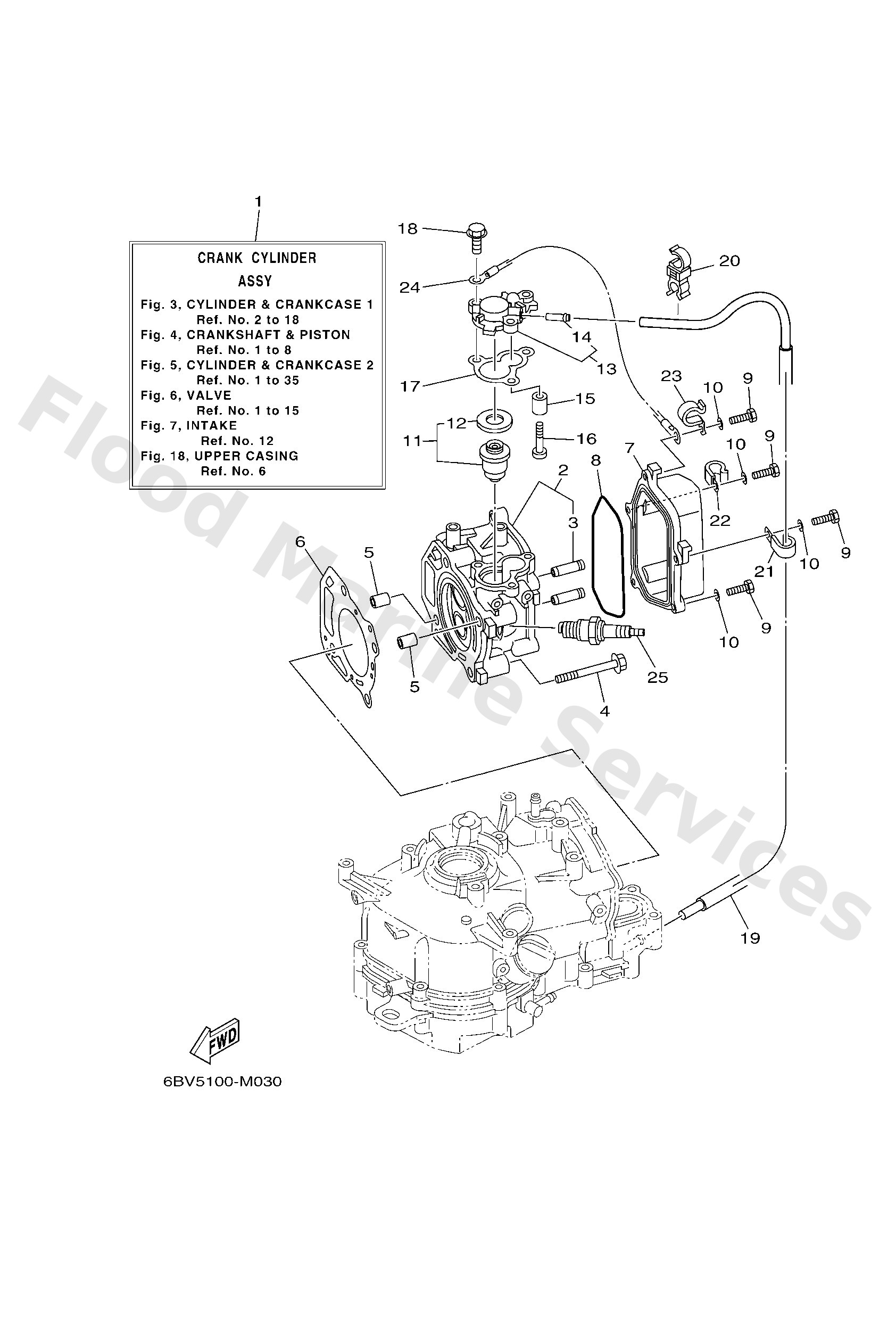

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6BXWE090001S
Crank cylinder ass
Loading…
↗
2
6BXE1111001S
Head, cylinder with ex valve
Loading…
↗
3
67D1113310
Guide, valve 1
Loading…
↗
4
9010508M36
Bolt (6g8)
Loading…
↗
5
9953010114
Pin, dowel(3vd)
Loading…
↗
6
6BX1118100
Gasket, cylinder head 1
Loading…
↗
7
6BXE1191005B
Cover, cylinder he
Loading…
↗
8
6BX1135600
Seal, cylinder 2
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
66M1241101
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
68DE2413001S
Cover, thermostat
Loading…
↗
14
6502437800
Pipe, joint 2
Loading…
↗
15
68DE132500
Anode
Loading…
↗
16
9898005025
Screw, panhead (a93)
Loading…
↗
17
68DE2414A0
Gasket, cover
Loading…
↗
18
9011906MA2
Bolt, with washer
Loading…
↗
19
6BXF432300
Pipe 12
Loading…
↗
20
9046409021
Clamp
Loading…
↗
21
9046506M86
Clamp
Loading…
↗
23
9046508371
Clamp(4km)
Loading…
↗
24
6G08251900
Wire, earth lead
Loading…
↗
25
9470200372
Plug, spark (cr6hsb)
Loading…
↗
