F70AET (2024)
CYLINDER & CRANKCASE 1

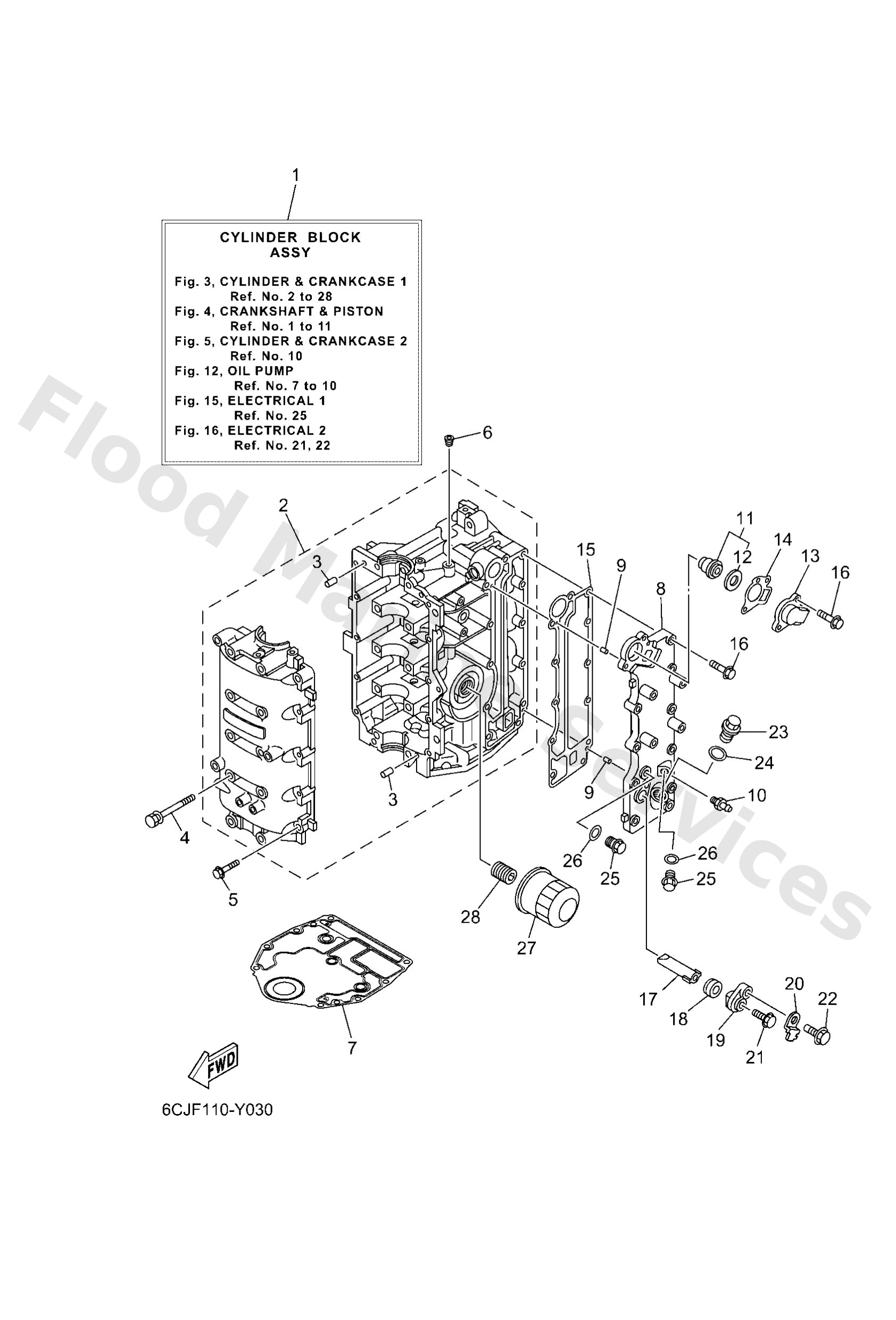

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6CJW009B049S
Cylinder block assembly
Loading…
↗
2
6CJ1510001
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908154
Bolt, with washer
Loading…
↗
5
9751306535
Bolt(3rv)
Loading…
↗
6
9034451003
Plug, taper screw
Loading…
↗
7
6BG1135102
Gasket, cylinder
Loading…
↗
8
6C541113119S
Outer cover, exhaust
Loading…
↗
9
9360410M03
Pin, dowel (688)
Loading…
↗
10
62Y1248110
Pipe 1
Loading…
↗
11
6G81241103
Thermostat
Loading…
↗
12
6881241200
Seal, thermostat
Loading…
↗
13
6C512413009S
Cover, thermostat
Loading…
↗
14
62Y1241401
Gasket, cover
Loading…
↗
15
6C54111410
Gasket, exhaust outer cover
Loading…
↗
16
9011906MA5
Bolt, with washer
Loading…
↗
17
62Y1132500
Anode
Loading…
↗
18
66M1132801
Grommet, anode
Loading…
↗
19
66M113270094
Cover, anode
Loading…
↗
20
66M1253500
Plate
Loading…
↗
21
9759505512
Bolt, hexagon
Loading…
↗
22
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
23
9034018M09
Plug, straight screw
Loading…
↗
24
90201186F1
Washer, plate (22f)
Loading…
↗
25
9034014M06
Plug, straight screw(62y)
Loading…
↗
26
9043014115
Gasket (663)
Loading…
↗
27
5GH1344080
Element assembly, oil cleaner
Loading…
↗
28
6C512858A0
Bolt, union
Loading…
↗
