F80DET (2019)
CYLINDER & CRANKCASE 1

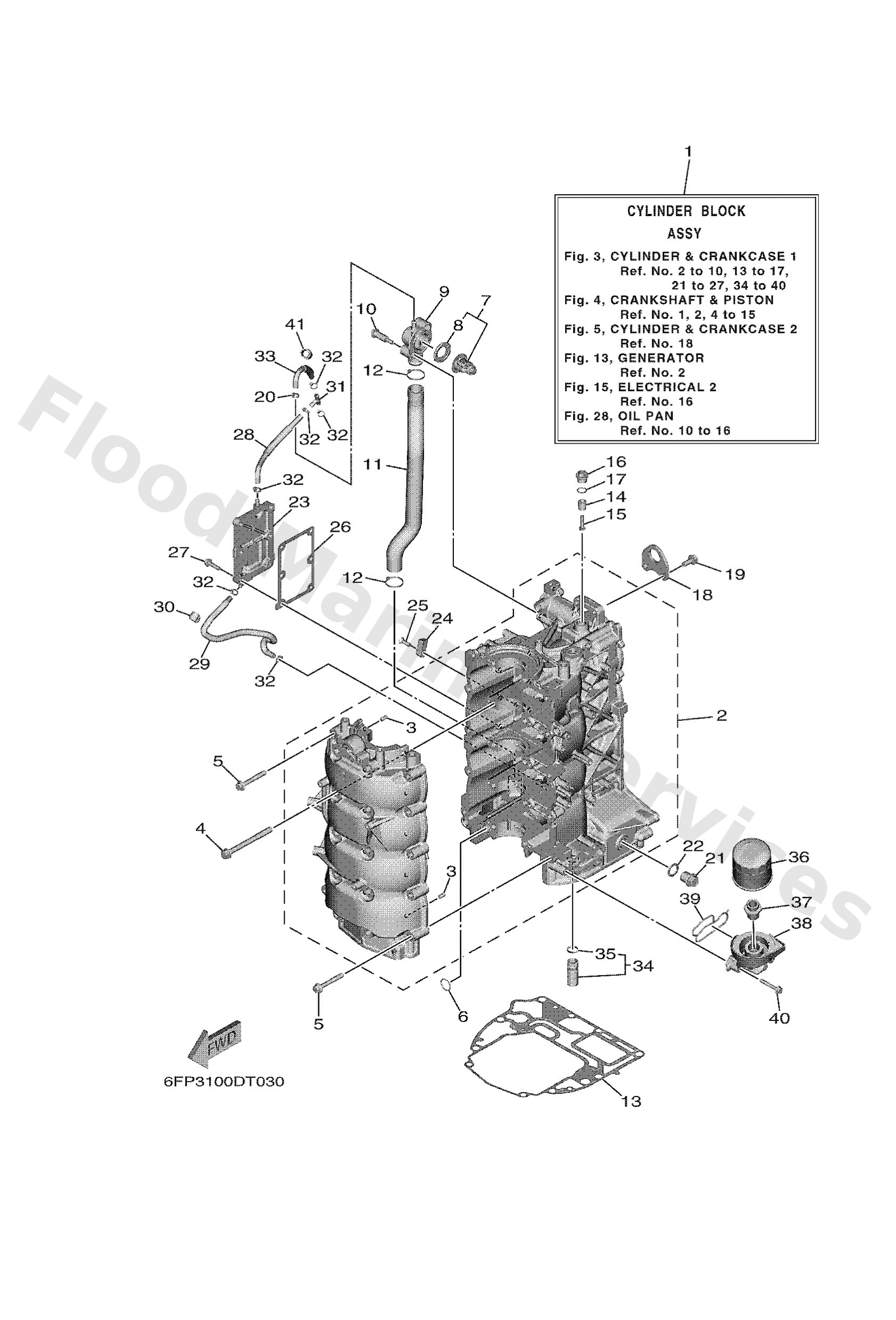

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6FPW009B019S
Cylinder block assembly
Loading…
↗
2
6FP15109029S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011910057
Bolt, with washer
Loading…
↗
5
9010508170
Bolt, flange
Loading…
↗
6
9321019MJ1
O-ring
Loading…
↗
7
6FP1241100
Thermostat
Loading…
↗
8
6EK1241200
Seal, thermostat
Loading…
↗
9
6EK1241300
Cover, thermostat
Loading…
↗
10
9010906286
Bolt
Loading…
↗
11
6EK1243A00
Hose 1
Loading…
↗
12
9046511M59
Clamp(63m)
Loading…
↗
13
6EK1135100
Gasket, cylinder
Loading…
↗
14
6G81132500
Anode
Loading…
↗
15
9898005025
Screw, panhead (a93)
Loading…
↗
16
6G811197A0
Plug, blind
Loading…
↗
17
9321013M63
O-ring (6g8)
Loading…
↗
18
6FP1111900
Hanger, engine
Loading…
↗
19
95D9508020
Bolt, flange deep recess
Loading…
↗
20
9046511M10
Clamp
Loading…
↗
21
9034018M09
Plug, straight screw
Loading…
↗
22
90201186F1
Washer, plate (22f)
Loading…
↗
23
6FP15414009S
Cover, air cleaner
Loading…
↗
24
63P1132501
Anode
Loading…
↗
25
9015106M02
Screw, countersunk
Loading…
↗
26
6FP1535300
Gasket, drain
Loading…
↗
27
9010506037
Bolt, flange
Loading…
↗
28
6FP1248300
Pipe 3
Loading…
↗
29
6FP1248400
Pipe 4
Loading…
↗
30
9046508M83
Clamp
Loading…
↗
31
6882437800
Pipe, joint
Loading…
↗
33
6FP1248500
Pipe 5
Loading…
↗
34
6EK1349000
Relief valve assembly
Loading…
↗
35
6CB1347300
O-ring
Loading…
↗
36
5GH1344070
Element assembly, oil cleaner
Loading…
↗
37
9040120007
Bolt, union
Loading…
↗
38
6FP1344600
Connector
Loading…
↗
39
6FP1347500
Gasket
Loading…
↗
40
9010506151
Bolt, flange
Loading…
↗
41
9046413227
Clamp
Loading…
↗
