FL115AET (2004)
CYLINDER & CRANKCASE 1

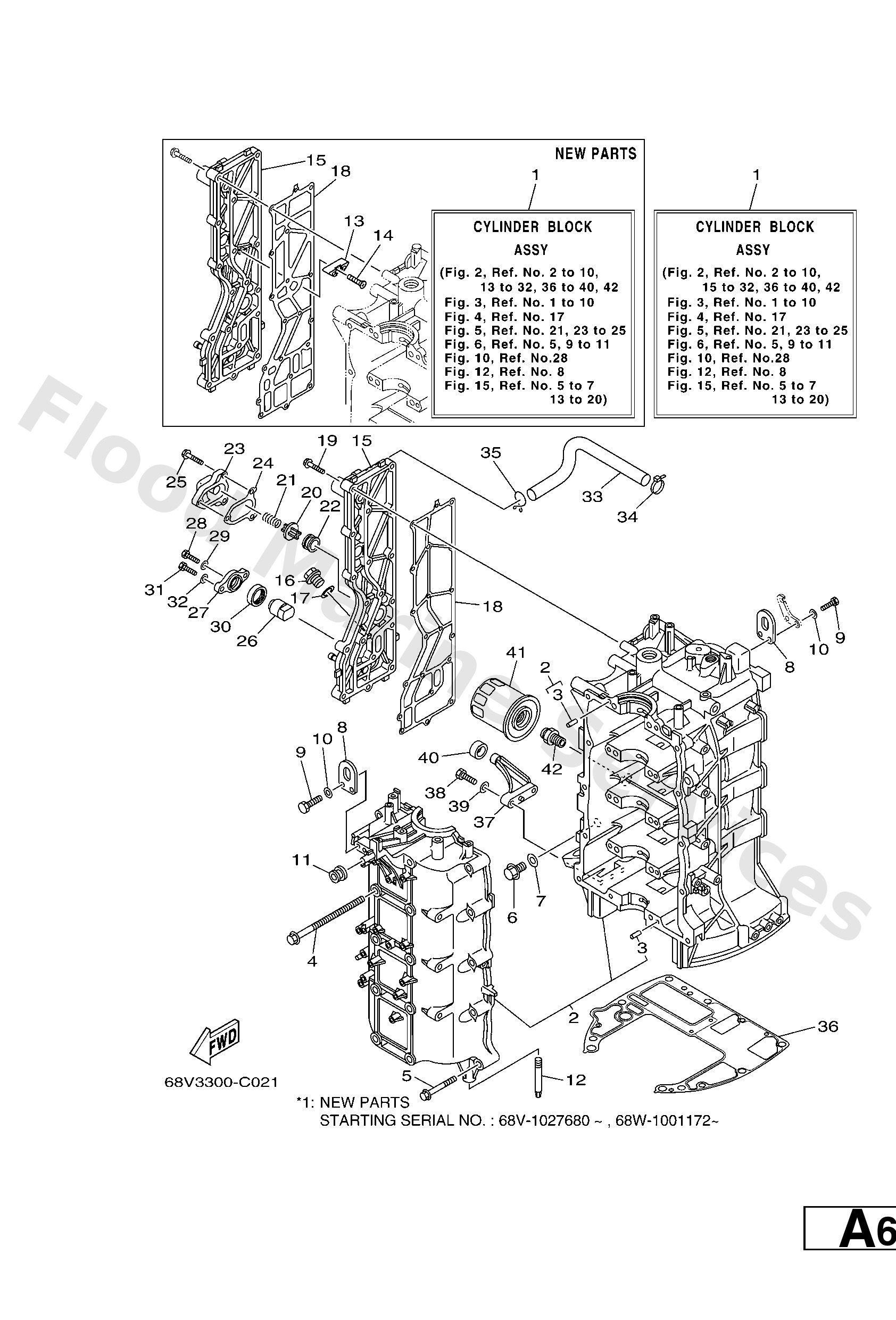

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
68VW009B051S
NEW PARTS *1
Cylinder block assembly
Loading…
↗
1
68VW009B041S
Cylinder block assembly
Loading…
↗
2
68V15100011S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011910M88
Bolt, with washer
Loading…
↗
5
9011908M66
Bolt, with washer
Loading…
↗
6
9034014M06
Plug, straight screw(62y)
Loading…
↗
7
9043014115
Gasket (663)
Loading…
↗
8
62Y1111900
Hanger, engine
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
9048012072
Grommet(53y)
Loading…
↗
12
67F1514200
Guide 1
Loading…
↗
13
6E51132500
NEW PARTS *1
Anode
Loading…
↗
14
9878004016
NEW PARTS *1
Screw, flat head(ga5)
Loading…
↗
15
68V41113001S
Outer cover, exhaust
Loading…
↗
15
68V41113011S
NEW PARTS *1
Outer cover, exhaust
Loading…
↗
16
9034018M09
Plug, straight screw
Loading…
↗
17
9043018130
Gasket (1j7)
Loading…
↗
18
67F41114A0
Gasket, exhaust outer cover
Loading…
↗
18
67F41114A1
NEW PARTS *1
Gasket, exhaust outer cover
Loading…
↗
19
9011906MA4
Bolt, with washer
Loading…
↗
20
6G51241600
Valve, pressure control
Loading…
↗
21
9050116M11
Spring, compression (688)
Loading…
↗
22
9048020M05
Grommet (688)
Loading…
↗
23
67F1246A001S
Cover 1
Loading…
↗
24
67F12435A0
Gasket
Loading…
↗
25
9011906MA2
Bolt, with washer
Loading…
↗
26
68V1132500
Anode
Loading…
↗
27
67F113270094
Anode cover assembly
Loading…
↗
28
9707506020
Bolt(7u8)
Loading…
↗
30
67F1132800
Grommet, anode
Loading…
↗
31
9707508025
Bolt, hexagon deep recess
Loading…
↗
32
9299508600
Washer, plain (663)
Loading…
↗
33
67F1243A00
Hose 1
Loading…
↗
34
9046511M10
Clamp
Loading…
↗
35
9046720M15
Clip
Loading…
↗
36
68V1135100
Gasket, cylinder
Loading…
↗
37
67F427610094
Stopper
Loading…
↗
38
9709506025
Bolt
Loading…
↗
40
68F4453300
Damper, upper mount rubber
Loading…
↗
41
5GH1344000
Element assembly, oil cleaner
Loading…
↗
42
9040120145
Bolt, union
Loading…
↗
