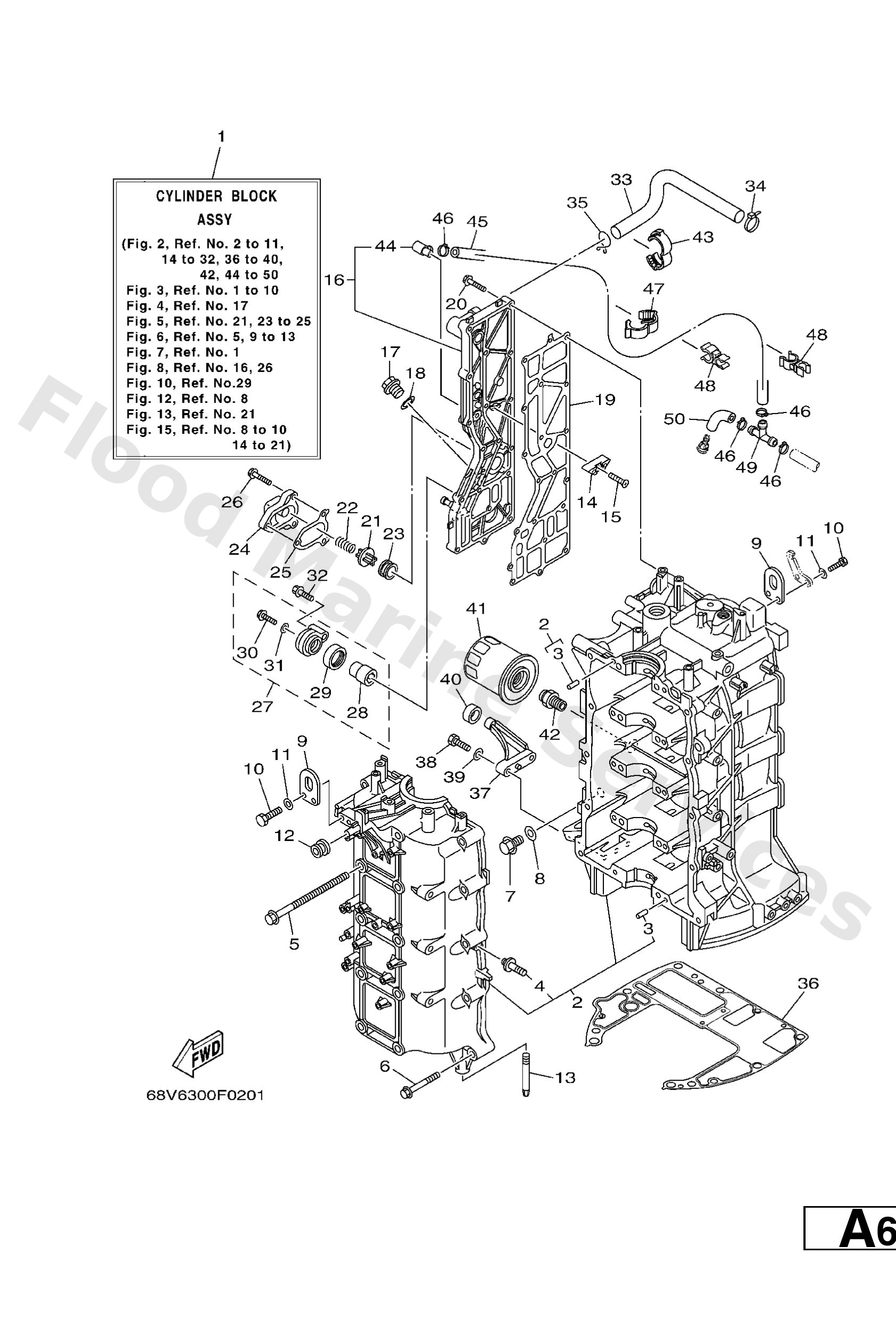

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

Reference
Description
Price


1
68VW009B081S Go to P/N)PE0-OM-070004
Cylinder block assembly
Loading…

↗
2
68V15100021S
Crankcase assembly
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
68V4458101
Bolt
Loading…

↗
5
9011910M88
Bolt, with washer
Loading…

↗
6
9011908M66
Bolt, with washer
Loading…

↗
7
9034014M06
Plug, straight screw(62y)
Loading…

↗
8
9043014115
Gasket (663)
Loading…

↗
9
62Y1111900
Hanger, engine
Loading…

↗
10
9709506020
Bolt(7u8)
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
9048012072
Grommet(53y)
Loading…

↗
13
67F1514200
Guide 1
Loading…

↗
14
6E51132500
Anode
Loading…

↗
15
9878004016
Screw, flat head(ga5)
Loading…

↗
16
6D841113101S
Outer cover, exhaust
Loading…

↗
17
9034018M09
Plug, straight screw
Loading…

↗
18
9043018130
Gasket (1j7)
Loading…

↗
19
67F41114A2
Gasket, exhaust outer cover
Loading…

↗
20
9011906MA4
Bolt, with washer
Loading…

↗
21
6G51241600
Valve, pressure control
Loading…

↗
22
9050116M11
Spring, compression (688)
Loading…

↗
23
9048020M05
Grommet (688)
Loading…

↗
24
67F1246A011S
Cover 1
Loading…

↗
25
67F12435A0
Gasket
Loading…

↗
26
9011906MA2
Bolt, with washer
Loading…

↗
27
69J1130110
Anode cover assembly
Loading…

↗
28
68V1132502
Anode
Loading…

↗
29
67F1132800
Grommet, anode
Loading…

↗
30
9010506M07
Bolt (689)
Loading…

↗
31
9043006M03
Gasket (6f5)
Loading…

↗
32
9757508540
Bolt, hexagon w/w deep recess
Loading…

↗
33
67F1243A00
Hose 1
Loading…

↗
34
9046511M10
Clamp
Loading…

↗
35
9046720M15
Clip
Loading…

↗
36
68V1135100
Gasket, cylinder
Loading…

↗
37
67F427610094
Stopper
Loading…

↗
38
9709506025
Bolt
Loading…

↗
40
68F4453300
Damper, upper mount rubber
Loading…

↗
41
5GH1344000
Element assembly, oil cleaner
Loading…

↗
42
9040120145
Bolt, union
Loading…

↗
43
9046416001
Clamp
Loading…

↗
44
6761137200
Nipple, hose
Loading…

↗
45
68V4254100
Pipe 1
Loading…

↗
47
9046416003
Clamp
Loading…

↗
48
9046410010
Clamp
Loading…

↗
49
6882437800
Pipe, joint
Loading…

↗
50
61A2431600
Pipe 6
Loading…

↗
?
21
68V-W009B-07-1S
Loading…

↗
?
2161
-
Loading…

↗
?
219
67F-41114-A1
Loading…

↗
?
244
-
Loading…

↗
?
245
-
Loading…

↗
?
246
-
Loading…

↗
?
247
-
Loading…

↗
?
248
-
Loading…

↗
?
249
-
Loading…

↗
?
71
68V-14200-04
Loading…

↗
?
816
68V-24519-00
Loading…

↗
?
826
68V-2247A-00
Loading…

↗
?
1321
-
Loading…

↗
