FL115AET (2009)
CYLINDER & CRANKCASE 1

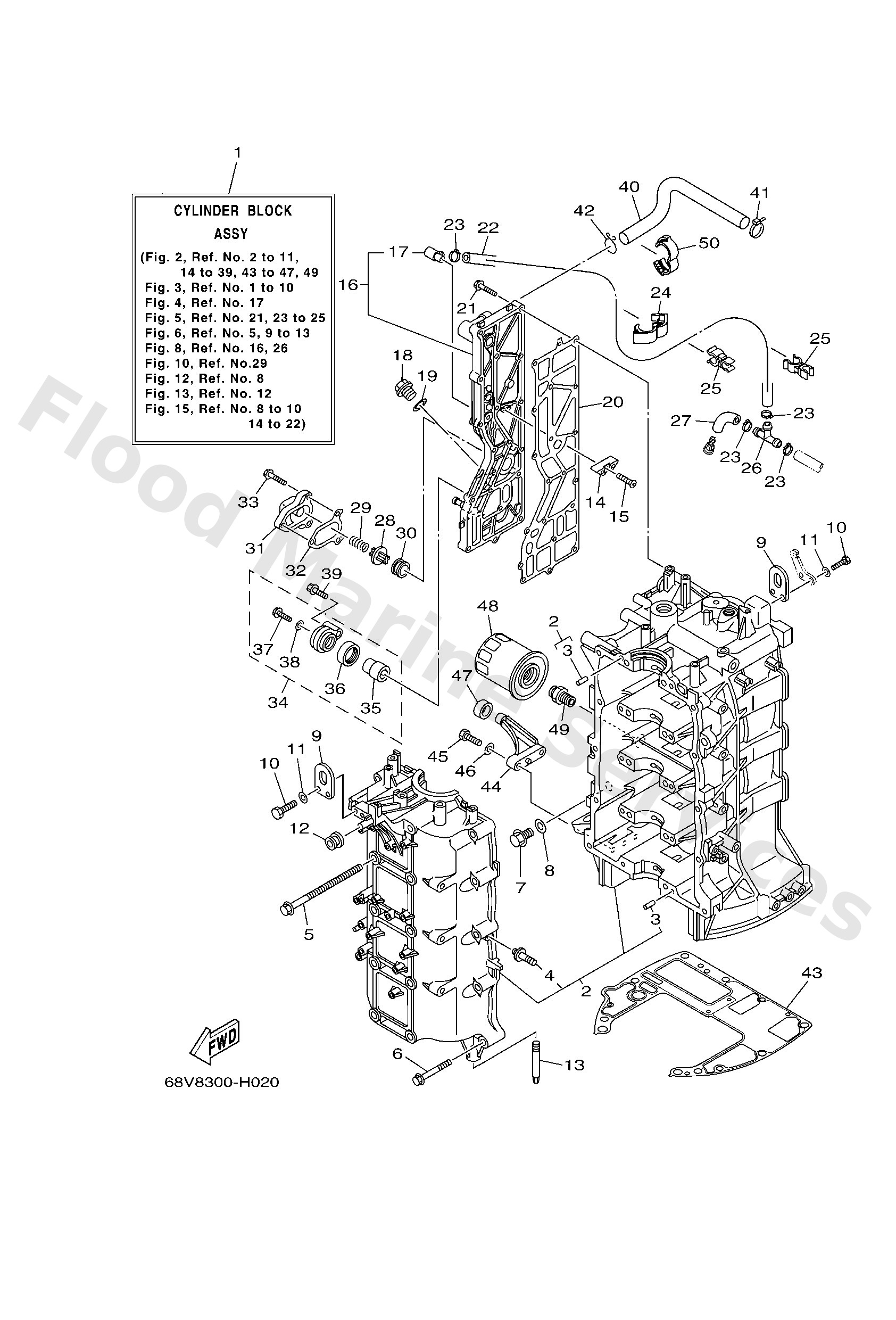

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
68VW009B089S
Cylinder block assembly
Loading…
↗
2
68V15100029S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
68V4458101
Bolt
Loading…
↗
5
9011910M88
Bolt, with washer
Loading…
↗
6
9011908M66
Bolt, with washer
Loading…
↗
7
9034014M06
Plug, straight screw(62y)
Loading…
↗
8
9043014115
Gasket (663)
Loading…
↗
9
62Y1111900
Hanger, engine
Loading…
↗
10
9709506020
Bolt(7u8)
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
9048012072
Grommet(53y)
Loading…
↗
13
67F1514200
Guide 1
Loading…
↗
14
6E51132500
Anode
Loading…
↗
15
9878004016
Screw, flat head(ga5)
Loading…
↗
16
6D841113309S
Outer cover, exhaust
Loading…
↗
17
6761137200
Nipple, hose
Loading…
↗
18
9034018M09
Plug, straight screw
Loading…
↗
19
9043018130
Gasket (1j7)
Loading…
↗
20
67F41114A2
Gasket, exhaust outer cover
Loading…
↗
21
9011906MA4
Bolt, with washer
Loading…
↗
22
68V4254100
Pipe 1
Loading…
↗
23
9046511M10
Clamp
Loading…
↗
24
9046418004
Clamp
Loading…
↗
25
9046410010
Clamp
Loading…
↗
26
6882437800
Pipe, joint
Loading…
↗
27
61A2431600
Pipe 6
Loading…
↗
28
6G51241600
Valve, pressure control
Loading…
↗
29
9050116M11
Spring, compression (688)
Loading…
↗
30
9048020M05
Grommet (688)
Loading…
↗
31
67F1246A019S
Cover 1
Loading…
↗
32
67F12435A0
Gasket
Loading…
↗
33
9011906MA2
Bolt, with washer
Loading…
↗
34
69J1130110
Anode cover assembly
Loading…
↗
35
68V1132502
Anode
Loading…
↗
36
67F1132800
Grommet, anode
Loading…
↗
37
9010506M07
Bolt (689)
Loading…
↗
38
9043006M03
Gasket (6f5)
Loading…
↗
39
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
40
67F1243A00
Hose 1
Loading…
↗
42
9046720M15
Clip
Loading…
↗
43
68V1135100
Gasket, cylinder
Loading…
↗
44
67F427610194
Stopper
Loading…
↗
45
9709506025
Bolt
Loading…
↗
47
68F4453301
Damper, upper mount rubber
Loading…
↗
48
5GH1344000
Element assembly, oil cleaner
Loading…
↗
49
9040120007
Bolt, union
Loading…
↗
50
9046416001
Clamp
Loading…
↗
