FL115BET (2016)
CYLINDER & CRANKCASE 1

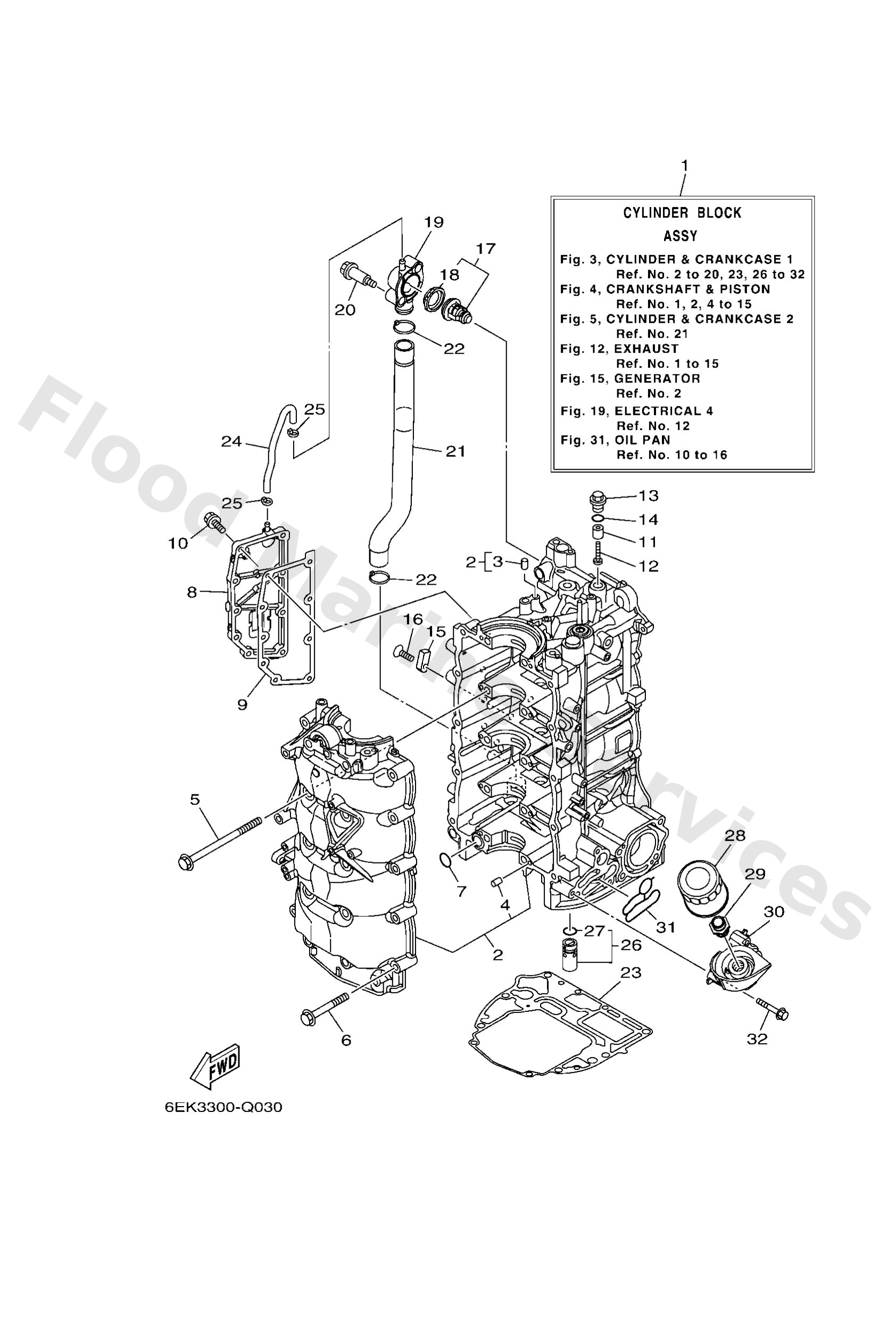

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6EKW009B029S
Cylinder Block assembly
Loading…
↗
2
6EK15109019S
Crankcase assembly
Loading…
↗
3
9360619M23
Pin, dowel
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
9011910057
Bolt, with washer
Loading…
↗
6
9010508170
Bolt, flange
Loading…
↗
7
9321019MJ1
O-ring
Loading…
↗
8
6EK15414009S
Cover, air cleaner
Loading…
↗
9
6EK1535300
Gasket, drain
Loading…
↗
10
9010506037
Bolt, flange
Loading…
↗
11
6G81132500
Anode
Loading…
↗
12
9898005025
Screw, panhead (a93)
Loading…
↗
13
6G811197A0
Plug, blind
Loading…
↗
14
9321013M63
O-ring (6g8)
Loading…
↗
15
63P1132501
Anode
Loading…
↗
16
9015106M02
Screw, countersunk
Loading…
↗
17
6EK1241100
Thermostat
Loading…
↗
18
6EK1241200
Seal, thermostat
Loading…
↗
19
6EK1241300
Cover, thermostat
Loading…
↗
20
9010906286
Bolt
Loading…
↗
21
6EK1243A00
Hose 1
Loading…
↗
22
9046511M59
Clamp(63m)
Loading…
↗
23
6EK1135100
Gasket, cylinder
Loading…
↗
24
6EK1248300
Pipe 3
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
26
6EK1349000
Relief valve assembly
Loading…
↗
27
6CB1347300
O-ring
Loading…
↗
28
5GH1344030
Element assembly, oil cleaner
Loading…
↗
29
9040120007
Bolt, union
Loading…
↗
30
6EK1344600
Connector
Loading…
↗
31
6EK1347500
Gasket
Loading…
↗
32
9010506151
Bolt, flange
Loading…
↗
