FL150BET (2012)
CYLINDER & CRANKCASE 1

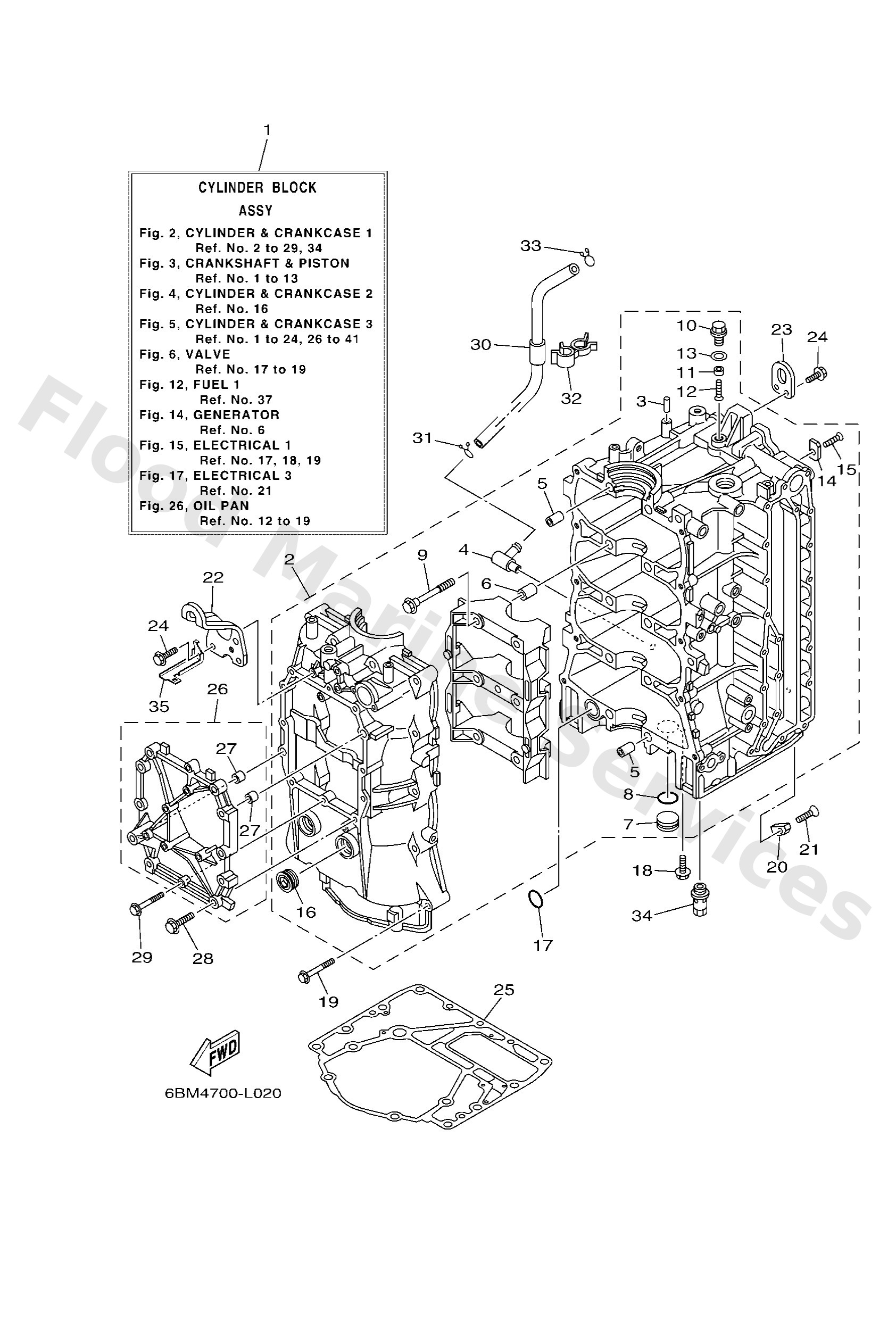

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6BMW009B029S
Cylinder block assembly
Loading…
↗
2
63PW1510039S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
63P1137200
Nipple, hose
Loading…
↗
5
9181418002
Pin, dowel
Loading…
↗
7
9033825004
Plug
Loading…
↗
8
9321025647
O-ring (7or)
Loading…
↗
9
9010510071
Bolt, flange
Loading…
↗
10
63P1119700
Plug, blind
Loading…
↗
11
63P1132521
Anode
Loading…
↗
12
9878005016
Ybs53-516 screw,flat head
Loading…
↗
13
9043014115
Gasket (663)
Loading…
↗
14
63P1132511
Anode
Loading…
↗
15
9015106M02
Screw, countersunk
Loading…
↗
16
9034027129
Plug, straight screw
Loading…
↗
17
9321025552
O-ring (22f)
Loading…
↗
18
9011906M81
Bolt, with washer
Loading…
↗
19
9011908M66
Bolt, with washer
Loading…
↗
20
63P1132501
Anode
Loading…
↗
22
63P1111900
Hanger, engine
Loading…
↗
23
68F1111900
Hanger, engine
Loading…
↗
24
9011906MA2
Bolt, with washer
Loading…
↗
25
63P1135100
Gasket, cylinder
Loading…
↗
26
6BM115110094
Cover, crank
Loading…
↗
27
9181111001
Pin, dowel
Loading…
↗
28
9011908022
Bolt, with washer
Loading…
↗
29
9010506037
Bolt, flange
Loading…
↗
30
6BM1137700
Hose
Loading…
↗
31
9046715M14
Clip(62y)
Loading…
↗
32
9046416013
Clamp
Loading…
↗
34
63P1349000
Relief valve assembly
Loading…
↗
35
63P8258800
Plate
Loading…
↗
