FL250DET (2011)
CYLINDER & CRANKCASE 1

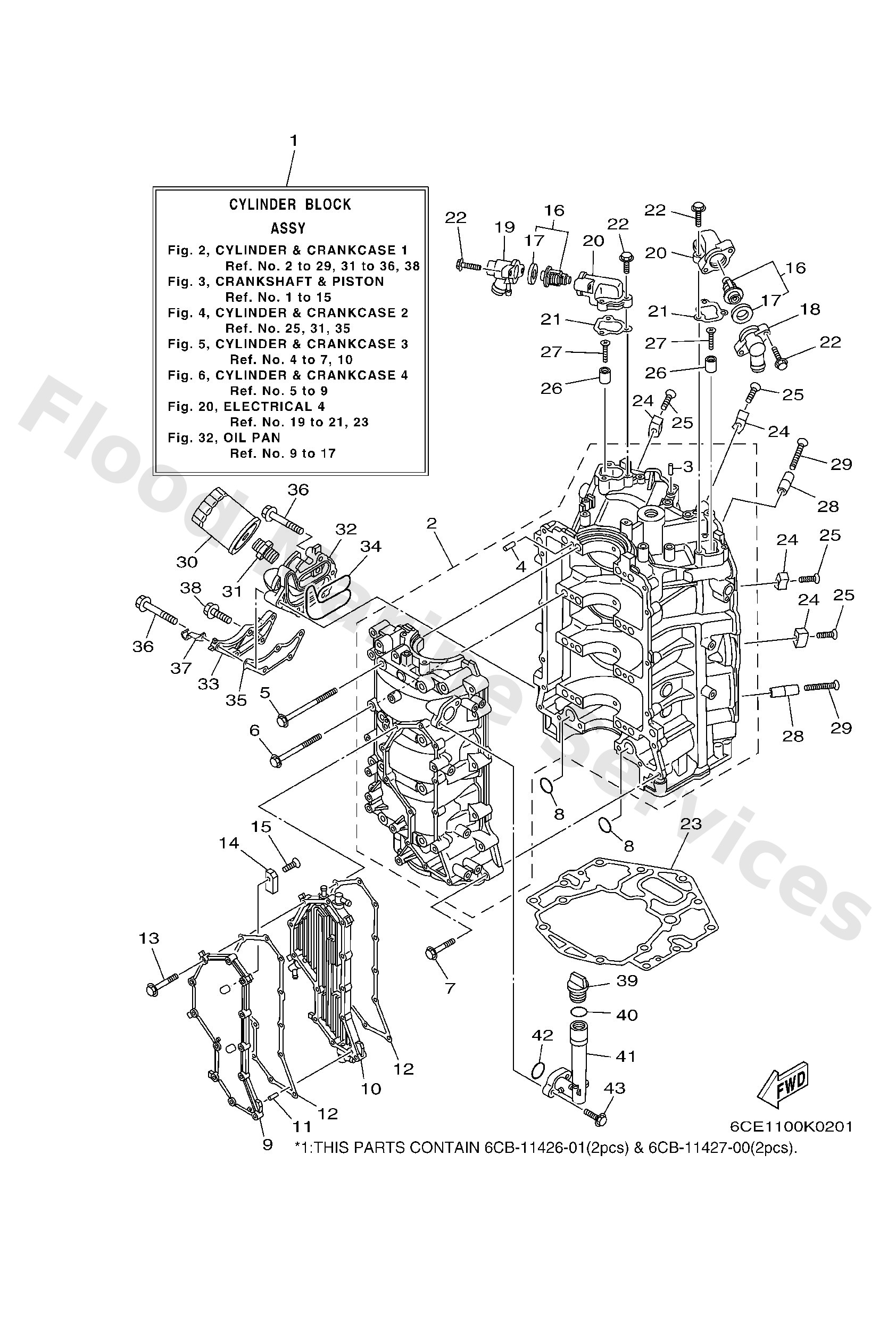

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6CEW009B029S
Go to P/N)PE0-OM-110010
Cylinder Block assembly
Loading…
↗
2
6CEW151001
Go to P/N)PE0-OM-110010
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
5
6CB1518700
Bolt
Loading…
↗
6
6CB1548100
Bolt 1
Loading…
↗
7
9010508175
Bolt, flange
Loading…
↗
8
9321026658
O-ring(36y)
Loading…
↗
9
6CE15411009S
Cover, crankcase 1
Loading…
↗
10
6CE15421009S
Cover, crankcase 2
Loading…
↗
11
9169040010
Pin, spring
Loading…
↗
12
6CB1545100
Gasket, crankcase cover 1
Loading…
↗
13
9010506151
Bolt, flange
Loading…
↗
14
63P1132501
Anode
Loading…
↗
15
9015106M02
Screw, countersunk
Loading…
↗
16
6CE1241100
Thermostat
Loading…
↗
17
67F1241200
Seal, thermostat
Loading…
↗
18
6CB1241301
Cover, thermostat
Loading…
↗
19
6CE12413009S
Cover, thermostat
Loading…
↗
20
6CB1242201
Cover, Housing
Loading…
↗
21
6CB1242700
Gasket, housing cover 1
Loading…
↗
22
9010506037
Bolt, flange
Loading…
↗
23
6CB1135100
Gasket, cylinder
Loading…
↗
24
6AW1132P00
Anode 5
Loading…
↗
25
9878006530
Screw, flat head
Loading…
↗
26
68T1132500
Anode
Loading…
↗
27
9015105M05
Screw, countersunk
Loading…
↗
28
6AW1132N01
Anode 4
Loading…
↗
29
9878006550
Screw flat head
Loading…
↗
30
N261344000
Element assembly, oil cleaner
Loading…
↗
31
9040119001
Bolt, union
Loading…
↗
32
6CE13446009S
Connector
Loading…
↗
33
6CE13881009S
Cover 1
Loading…
↗
34
6CB1347700
Gasket
Loading…
↗
35
6CE1347500
Gasket
Loading…
↗
36
9010506056
Bolt, flange
Loading…
↗
37
9046508M82
Clamp
Loading…
↗
39
6G81536300
Plug, oil
Loading…
↗
40
9321024M79
O-ring
Loading…
↗
41
6CB1531900
Joint
Loading…
↗
42
9321027370
O-ring(1kt)
Loading…
↗
1
6CEW009B009S
B
6Ce-W009B-02-9S Cylinder Block assembly
Loading…
↗
2
6CE1510000
6Ce-W1510-01
Loading…
↗
7
6CB1142600
Bearing, thrust 1
Loading…
↗
15
