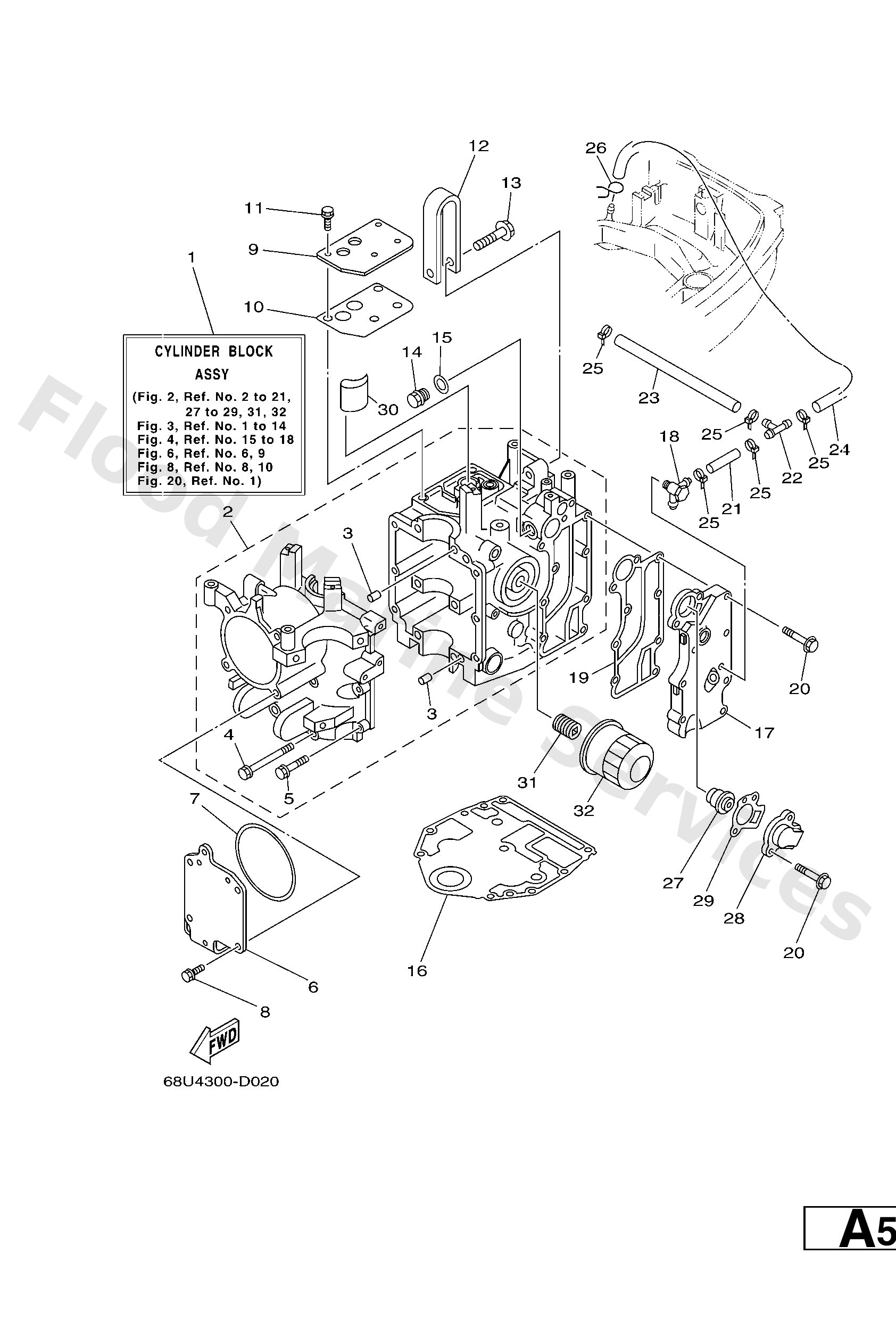

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

Reference
Description
Price


1
65WW009B121S
Cylinder Block assembly
Loading…

↗
2
65W15100111S
Crankcase assembly
Loading…

↗
3
9953008012
Pin, dowel(6g8)
Loading…

↗
4
9011908M01
Bolt, with washer(62y)
Loading…

↗
5
9011906MA5
Bolt, with washer
Loading…

↗
6
65W1512101
Crankcase 2
Loading…

↗
7
65W1566300
Seal
Loading…

↗
8
65W1222800
Bolt
Loading…

↗
9
65W1116801
-
Loading…

↗
10
65W1116901
Gasket, breather cover
Loading…

↗
12
65W1111900
2 – 11
Loading…

↗
13
9010508M87
Bolt, washer based
Loading…

↗
14
9034014M06
Plug, straight screw(62y)
Loading…

↗
15
9043014115
Gasket (663)
Loading…

↗
16
65W1135110
Gasket, cylinder
Loading…

↗
17
65W41113101S
Outer cover, exhaust
Loading…

↗
18
62Y1137201 FLUSHING KIT
Nipple, hose
Loading…

↗
19
65W4111400
Gasket, exhaust outer cover
Loading…

↗
21
9044509068
Hose (l420)
Loading…

↗
22
6882437800
Pipe, joint
Loading…

↗
23
9044509095
Hose (L215)
Loading…

↗
24
9044509104
Hose (l1500)
Loading…

↗
25
9046511M10
Clamp
Loading…

↗
26
9046708004
Clip, pipe 6162435600
Loading…

↗
27
6G81241103
Thermostat
Loading…

↗
28
6H312413001S
Cover, thermostat
Loading…

↗
29
62Y1241400
Gasket, cover
Loading…

↗
30
65W1328600
Cleaner
Loading…

↗
31
9040120M00
Bolt, union(62y)
Loading…

↗
32
5GH1344000
Element assembly, oil cleaner
Loading…

↗
