FT25FET (2017)
CYLINDER & CRANKCASE 1

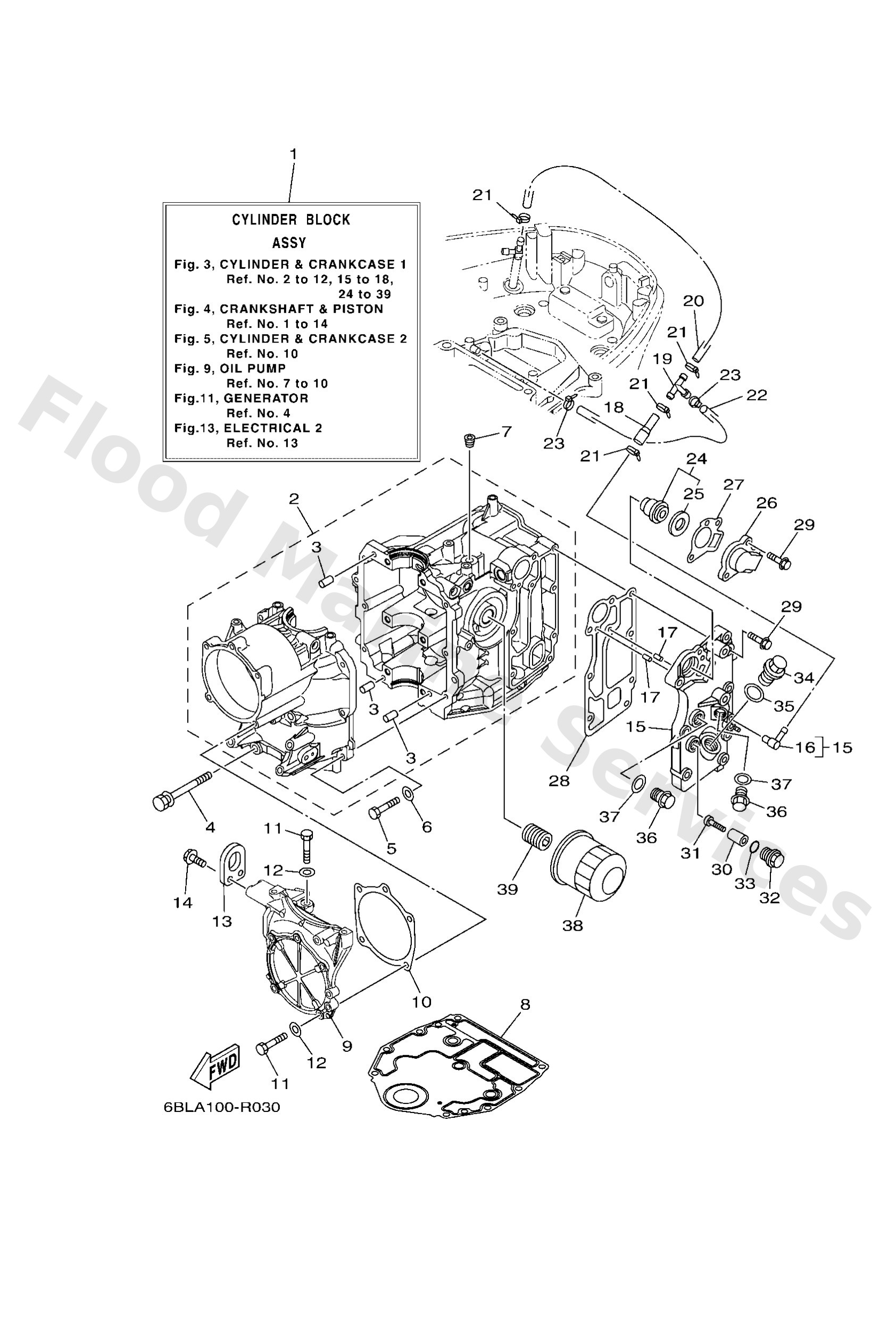

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6BLW009B021S
Cylinder block assembly
Loading…
↗
2
6BL1510002
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908M01
Bolt, with washer(62y)
Loading…
↗
5
9701306025
Bolt(62y)
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
9034451003
Plug, taper screw
Loading…
↗
8
6BG1135100
Gasket, cylinder
Loading…
↗
9
6BL15121001S
Crankcase 2
Loading…
↗
10
6BL1566300
Seal
Loading…
↗
13
62Y1111900
Hanger, engine
Loading…
↗
14
9759506520
Bolt(7u8)
Loading…
↗
15
6BL41113011S
Outer cover, exhaust
Loading…
↗
16
6H11137200
Nipple, hose
Loading…
↗
17
9360410M03
Pin, dowel (688)
Loading…
↗
18
6BP1248100
Pipe 1
Loading…
↗
19
6882437800
Pipe, joint
Loading…
↗
20
9044509251
Hose (l420)
Loading…
↗
21
9046511M10
Clamp
Loading…
↗
22
9044509104
Hose (l1500)
Loading…
↗
24
6G81241103
Thermostat
Loading…
↗
25
6881241200
Seal, thermostat
Loading…
↗
26
6C512413009S
Cover, thermostat
Loading…
↗
27
62Y1241400
Gasket, cover
Loading…
↗
28
6BL4111400
Gasket, exhaust outer cover
Loading…
↗
29
9011906MA5
Bolt, with washer
Loading…
↗
30
6G81132500
Anode
Loading…
↗
31
9898005025
Screw, panhead (a93)
Loading…
↗
32
6G811197A0
Plug, blind
Loading…
↗
33
9321013M63
O-ring (6g8)
Loading…
↗
34
9034018M09
Plug, straight screw
Loading…
↗
35
90201186F1
Washer, plate (22f)
Loading…
↗
36
9034014M06
Plug, straight screw(62y)
Loading…
↗
37
9043014115
Gasket (663)
Loading…
↗
38
5GH1344060
Element assembly, oil cleaner
Loading…
↗
39
6C51285800
Bolt, union
Loading…
↗
