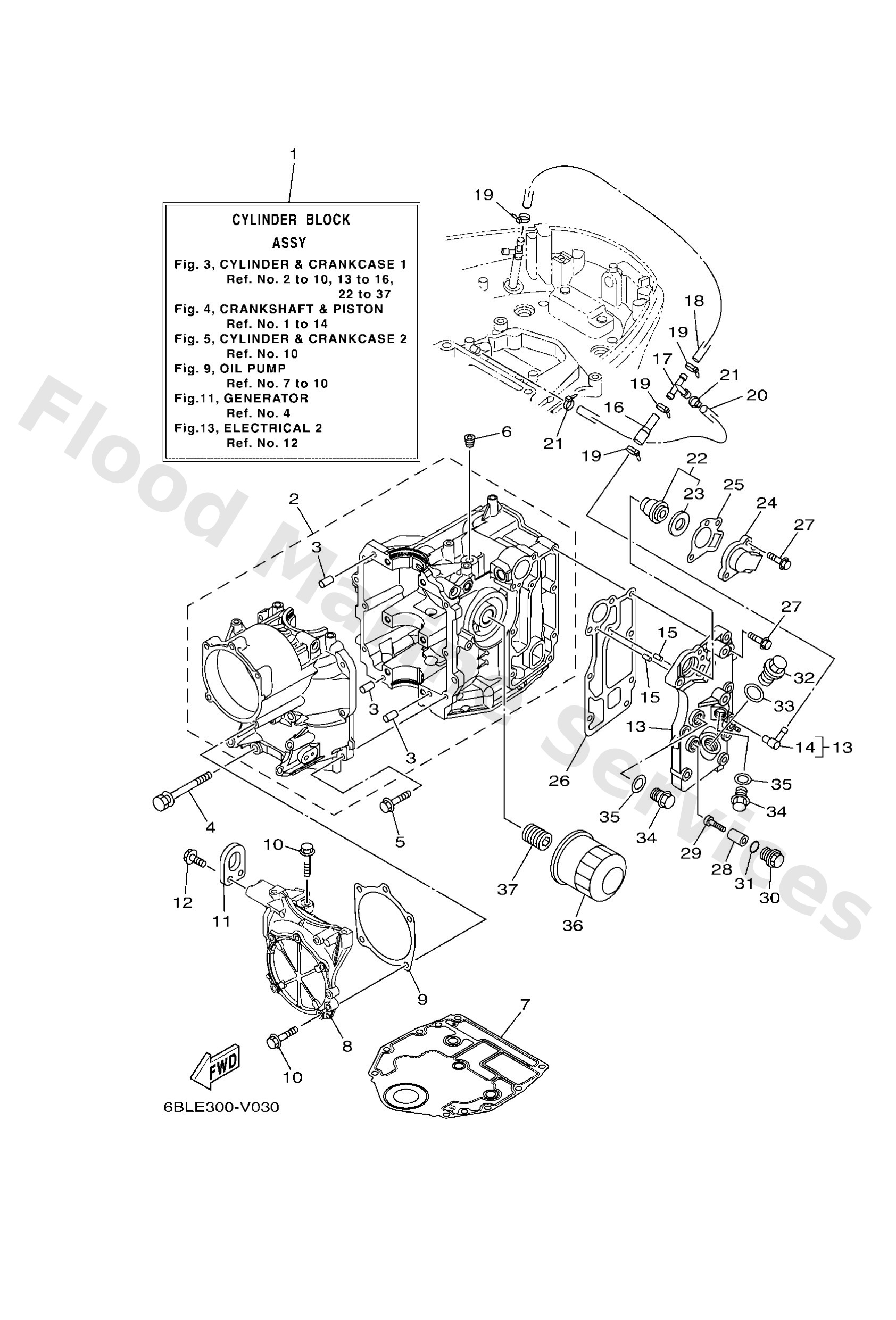

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

Reference
Description
Price


1
6BLW009B031S
Cylinder block assembly
Loading…

↗
2
6BL1510002
Crankcase assembly
Loading…

↗
3
9360612019
Pin, dowel (614)
Loading…

↗
4
9011908M01
Bolt, with washer(62y)
Loading…

↗
5
9751306525
Bolt, with washer(61b)
Loading…

↗
6
9034451003
Plug, taper screw
Loading…

↗
7
6BG1135101
Gasket, cylinder
Loading…

↗
8
6BL15121001S
Crankcase 2
Loading…

↗
9
6BL1566300
Seal
Loading…

↗
11
62Y1111900
Hanger, engine
Loading…

↗
12
97E9506520
Bolt, hexagon w/w deep recess
Loading…

↗
13
6BL41113011S
Outer cover, exhaust
Loading…

↗
14
6H11137200
Nipple, hose
Loading…

↗
15
9360410M03
Pin, dowel (688)
Loading…

↗
16
6BP1248100
Pipe 1
Loading…

↗
17
6882437800
Pipe, joint
Loading…

↗
18
9044509251
Hose (l420)
Loading…

↗
19
9046511M10
Clamp
Loading…

↗
20
9044509104
Hose (l1500)
Loading…

↗
22
6G81241103
Thermostat
Loading…

↗
23
6881241200
Seal, thermostat
Loading…

↗
24
6BG12413001S
Cover, thermostat
Loading…

↗
25
62Y1241400
Gasket, cover
Loading…

↗
26
6BL4111400
Gasket, exhaust outer cover
Loading…

↗
27
9011906MA5
Bolt, with washer
Loading…

↗
28
6G81132500
Anode
Loading…

↗
29
9898005025
Screw, panhead (a93)
Loading…

↗
30
6G811197A0
Plug, blind
Loading…

↗
31
9321013M63
O-ring (6g8)
Loading…

↗
32
9034018M09
Plug, straight screw
Loading…

↗
33
90201186F1
Washer, plate (22f)
Loading…

↗
34
9034014M06
Plug, straight screw(62y)
Loading…

↗
35
9043014115
Gasket (663)
Loading…

↗
36
5GH1344080
Element assembly, oil cleaner
Loading…

↗
37
6C512858A0
Bolt, union
Loading…

↗
