Yamaha Outboard Parts - CYLINDER & CRANKCASE 1 - FT8DMH (2008) | Flood Marine

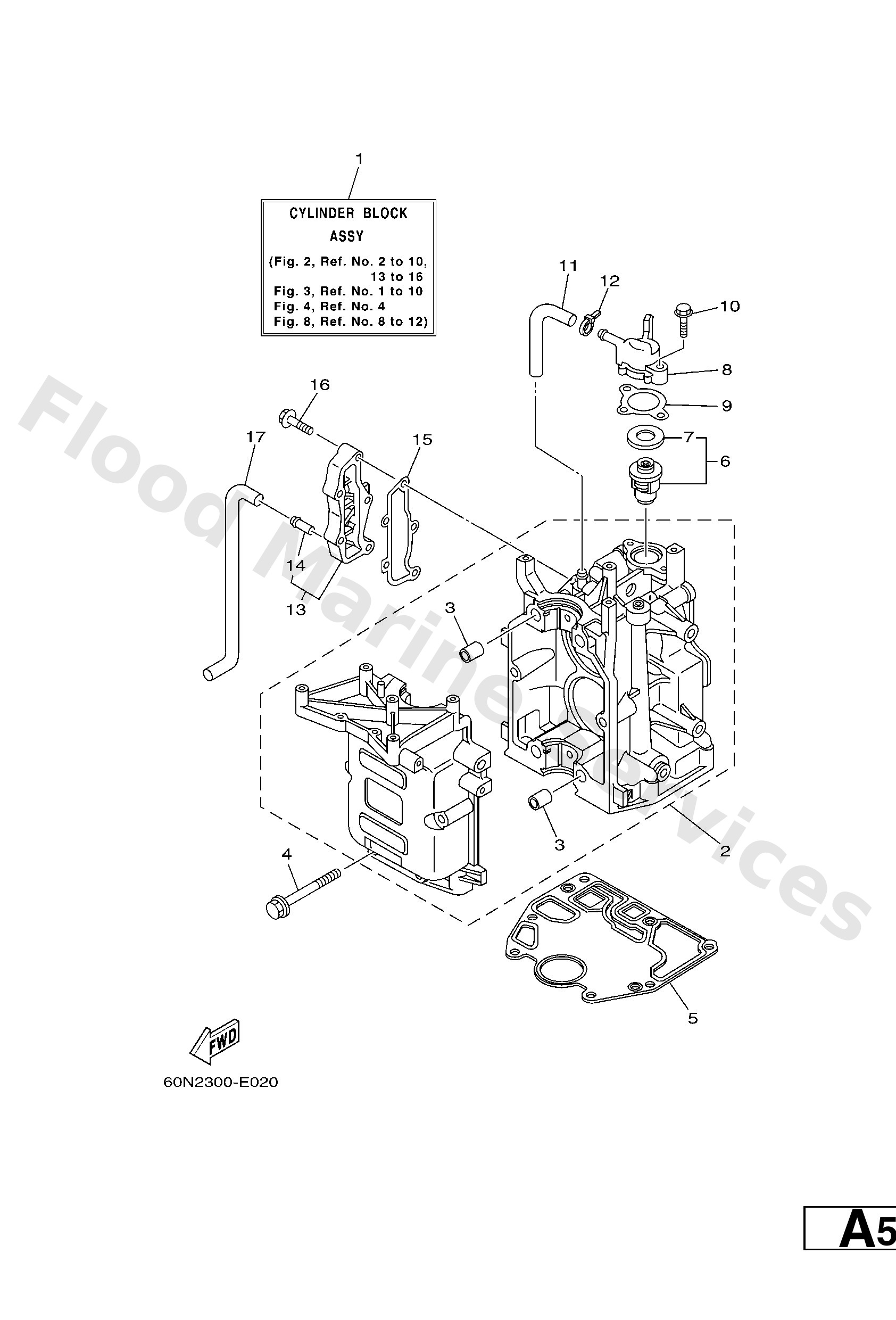

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

Reference
Description
Price


1
60RWE09B001S
Cylinder block ass'y
Loading…

↗
2
60RE5100001S
Crank case assembly
Loading…

↗
3
9181212001
Pin, dowel
Loading…

↗
4
9011908M29
Bolt, with washer
Loading…

↗
5
68T1135100
Gasket, cylinder
Loading…

↗
6
66M1241101
Thermostat
Loading…

↗
7
6881241200
Seal, thermostat
Loading…

↗
8
68T12413001S
Cover, thermostat
Loading…

↗
9
60RE2414A0
Gasket, cover
Loading…

↗
10
9011906MA2
Bolt, with washer
Loading…

↗
11
60RE248100
Pipe 1
Loading…

↗
12
9046511M10
Clamp
Loading…

↗
13
60RG1113001S
Outer cover, exhaust
Loading…

↗
14
6E92437800
Pipe, Joint 3
Loading…

↗
15
68T41114A0
Gasket, exhaust outer cover
Loading…

↗
16
9011906MA3
Bolt, with washer
Loading…

↗
17
60RE248200
Pipe 2
Loading…

↗
