FT9.9GMH (2008)
CYLINDER & CRANKCASE 1

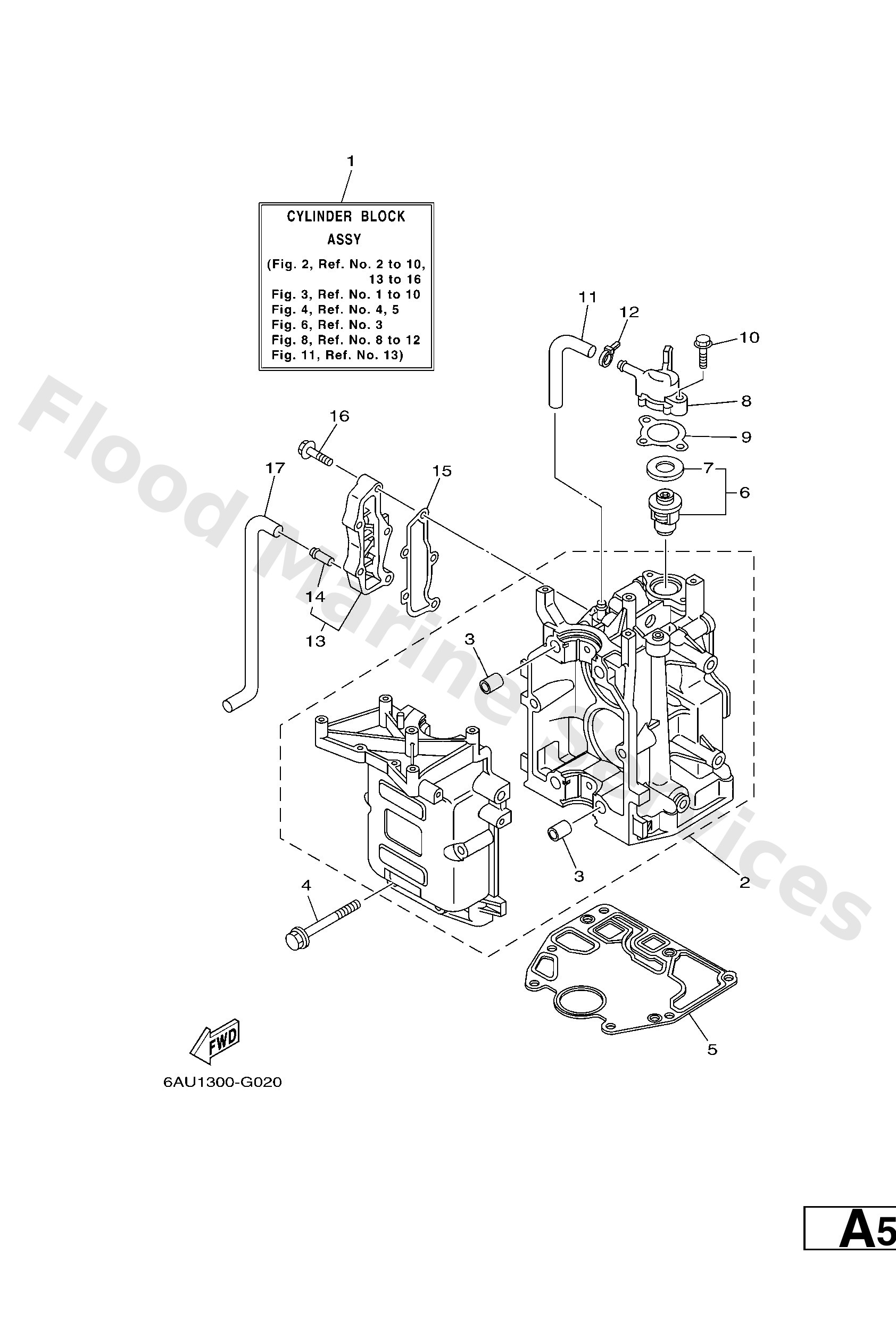

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6AUW009B001S
Cylinder block assembly
Loading…
↗
2
6AU15100001S
Crankcase assembly
Loading…
↗
3
9953012016
Pin, dowel
Loading…
↗
4
9011908M29
Bolt, with washer
Loading…
↗
5
68T1135100
Gasket, cylinder
Loading…
↗
6
66M1241101
Thermostat
Loading…
↗
7
6881241200
Seal, thermostat
Loading…
↗
8
68T12413001S
Cover, thermostat
Loading…
↗
9
6G812414A0
Gasket, cover
Loading…
↗
10
9011906MA2
Bolt, with washer
Loading…
↗
11
68T1248100
Pipe 1
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
6AU41113001S
Outer cover, exhaust
Loading…
↗
14
6E92437800
Pipe, Joint 3
Loading…
↗
15
68T41114A0
Gasket, exhaust outer cover
Loading…
↗
16
9011906MA3
Bolt, with washer
Loading…
↗
17
68T1248200
Pipe 2
Loading…
↗
