L200FETO (2008)
CYLINDER & CRANKCASE 1

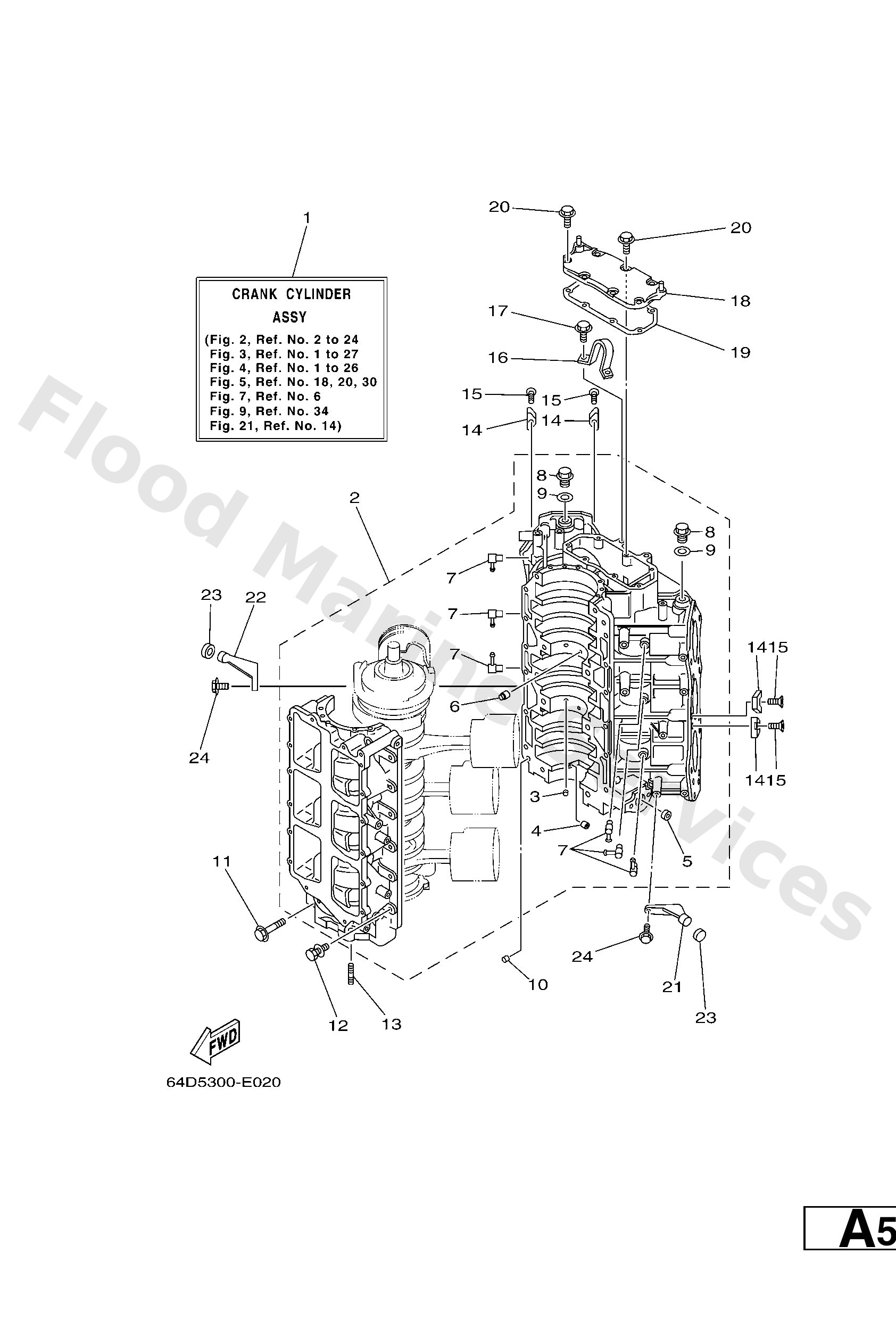

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
64EW0090151S
Crank Cylinder assembly
Loading…
↗
2
64E15100011S
Crankcase assembly
Loading…
↗
3
6241137900
Valve, check
Loading…
↗
4
9038406M07
Bush, bimetal formed(6r3)
Loading…
↗
5
9038414M09
Bush, bimetal formed(6r3)
Loading…
↗
6
6631151801
Lock, bearing
Loading…
↗
7
6461137001
Check valve assembly
Loading…
↗
8
9034014M00
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
9360812063
Pin, dowel (626)
Loading…
↗
11
9010510M20
Bolt (6e5)
Loading…
↗
12
9011908M94
Bolt, with washer
Loading…
↗
13
9011608026
Bolt, stud (6e5)
Loading…
↗
14
6E51132500
Anode
Loading…
↗
15
9878004015
Screw, flat head(ga5)
Loading…
↗
16
67H1111901
Hanger, engine
Loading…
↗
17
9011908MA3
Bolt, with washer
Loading…
↗
18
6K711371011S
Cover
Loading…
↗
19
6E511381A2
Gasket 1
Loading…
↗
20
9011906MA2
Bolt, with washer
Loading…
↗
21
6E542761001S
Stopper
Loading…
↗
22
6E542762001S
Stopper
Loading…
↗
23
68F4453300
Damper, upper mount rubber
Loading…
↗
