LF150B (2021)
CYLINDER & CRANKCASE 1

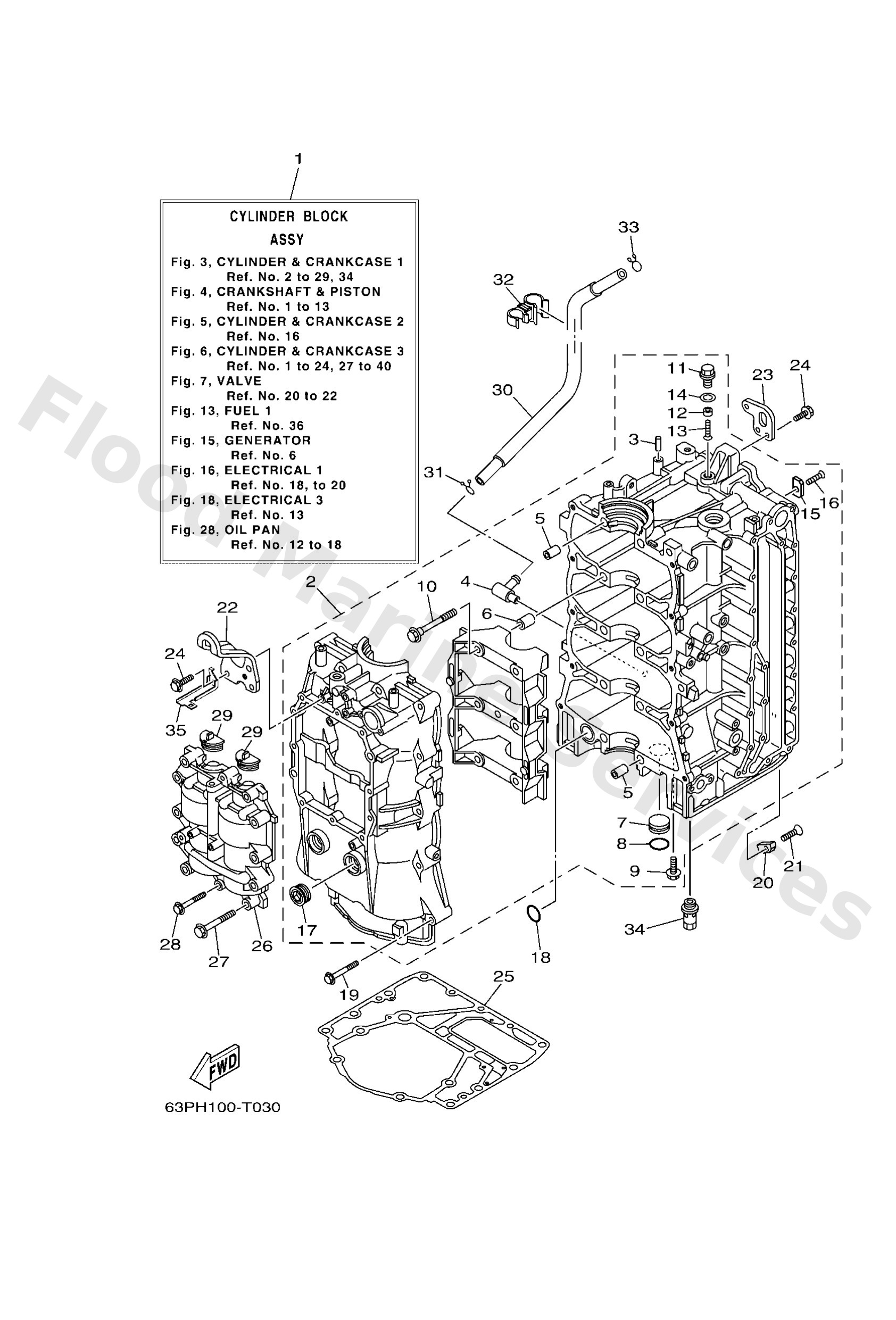

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
63PW009B149S
Cylinder block assembly
Loading…
↗
2
63PW1510049S
Crankcase assembly
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
63P1137200
Nipple, hose
Loading…
↗
5
9181418002
Pin, dowel
Loading…
↗
7
9033825004
Plug
Loading…
↗
8
9321025647
O-ring (7or)
Loading…
↗
9
9011906276
Bolt, with washer
Loading…
↗
10
9010510071
Bolt, flange
Loading…
↗
11
63P1119700
Plug, blind
Loading…
↗
12
63P1132521
Anode
Loading…
↗
13
9878005016
Ybs53-516 screw,flat head
Loading…
↗
14
9043014115
Gasket (663)
Loading…
↗
15
63P1132511
Anode
Loading…
↗
16
9015106M02
Screw, countersunk
Loading…
↗
17
9034027129
Plug, straight screw
Loading…
↗
18
9321025552
O-ring (22f)
Loading…
↗
19
9011908M66
Bolt, with washer
Loading…
↗
20
63P1132501
Anode
Loading…
↗
22
63P1111900
Hanger, engine
Loading…
↗
23
63P1111910
Hanger, engine
Loading…
↗
24
9011906MA2
Bolt, with washer
Loading…
↗
25
63P1135103
Gasket, cylinder
Loading…
↗
26
63P1150004
Balancer assembly
Loading…
↗
28
9011906MA6
Bolt, with washer
Loading…
↗
29
63P1151200
Seal, crank cover
Loading…
↗
30
63P1137710
Hose
Loading…
↗
31
9046715M14
Clip(62y)
Loading…
↗
32
9046415007
Clamp
Loading…
↗
34
63P1349000
Relief valve assembly
Loading…
↗
35
63P8258800
Plate
