LZ300AETO (2004)
CYLINDER & CRANKCASE 1

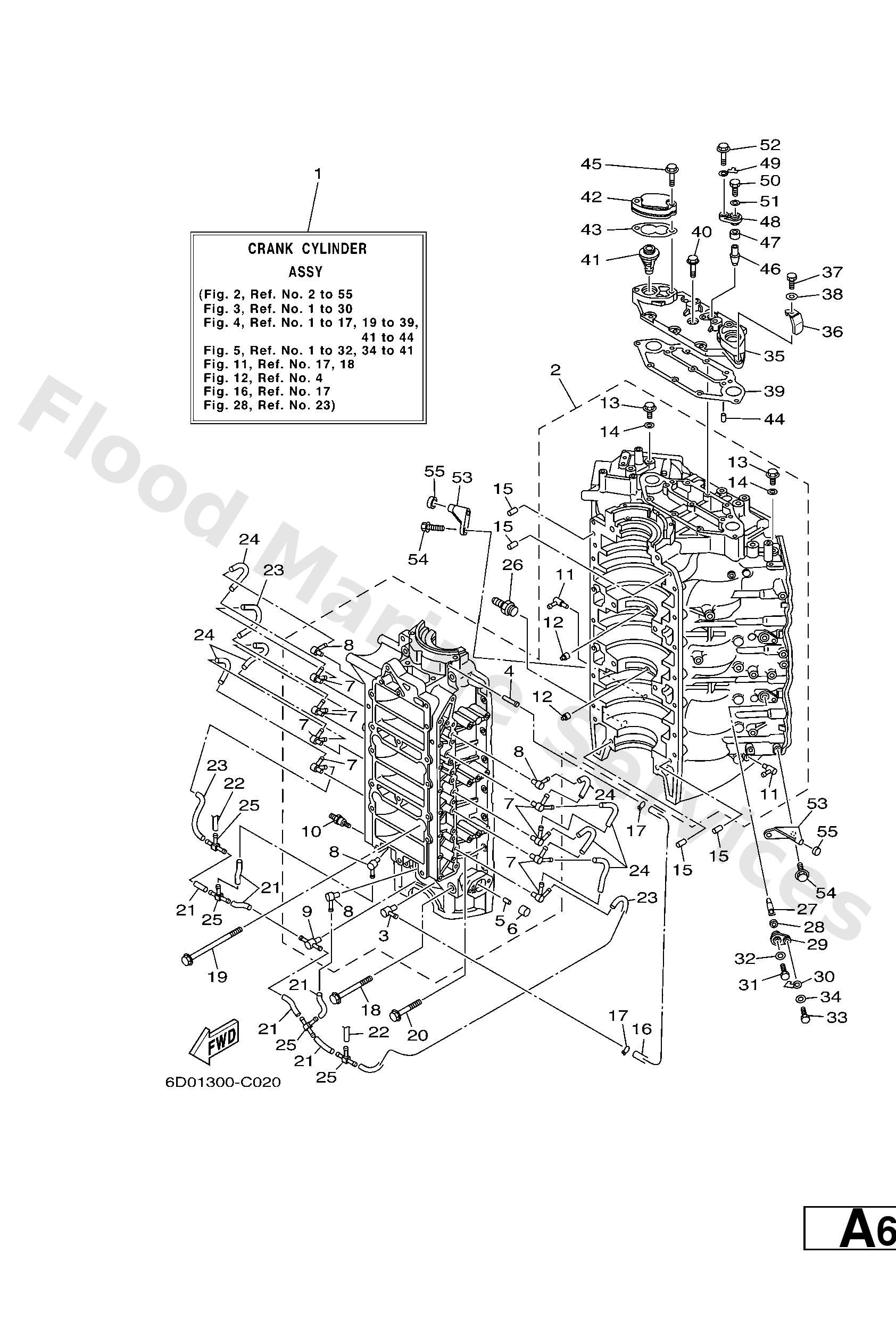

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6D0W0090101S
Crank cylinder assembly
Loading…
↗
2
6D015100001S
Crankcase assembly
Loading…
↗
3
6E51137201
Nipple, hose
Loading…
↗
4
6241448500
Pipe, joint
Loading…
↗
5
9038406M07
Bush, bimetal formed(6r3)
Loading…
↗
6
9038316M01
Bush, formed(61a)
Loading…
↗
7
60V1137000
Check valve assembly
Loading…
↗
8
6501137001
Check valve assembly
Loading…
↗
9
60V1137010
Check valve assembly
Loading…
↗
10
9011608012
Bolt, stud
Loading…
↗
11
6D01137200
-
Loading…
↗
12
6631151801
Lock, bearing
Loading…
↗
13
9034014M00
Plug, straight screw(62y)
Loading…
↗
14
9043014115
Gasket (663)
Loading…
↗
15
9360812063
Pin, dowel (626)
Loading…
↗
16
9044507M10
-
Loading…
↗
17
9046807M02
Clip (6e5)
Loading…
↗
18
9751310590
Bolt, with washer
Loading…
↗
19
9011910M11
Bolt, With Washer
Loading…
↗
20
9011906089
Bolt, with washer
Loading…
↗
21
9044507M03
Hose (l200)
Loading…
↗
22
9044507016
Hose (l60)
Loading…
↗
23
9044507M29
Hose (l200)
Loading…
↗
24
9044507MA6
Hose (l200)
Loading…
↗
25
6E02437800
Pipe, joint
Loading…
↗
26
6G51258100
Joint, hose
Loading…
↗
27
60V1132501
Anode
Loading…
↗
28
66M1132800
Grommet, anode
Loading…
↗
29
66M113270094
Cover, anode
Loading…
↗
30
66M1253500
Plate
Loading…
↗
31
9709505012
Bolt, hexagon
Loading…
↗
32
9299505600
Washer, plain (646)
Loading…
↗
33
9701306020
Bolt(62y)
Loading…
↗
34
9290306600
Washer, plain (646)
Loading…
↗
35
60V113710094
Cover
Loading…
↗
36
60V2413500
Clamp 1
Loading…
↗
37
9701305012
Bolt, hexagon
Loading…
↗
38
9290305600
Washer, plain (646)
Loading…
↗
39
60V1138100
Gasket 1
Loading…
↗
40
9011906MA2
Bolt, with washer
Loading…
↗
41
60V1241100
Thermostat
Loading…
↗
42
60V12413001S
Cover, Thermostat
Loading…
↗
43
60V12414A0
Gasket, cover
Loading…
↗
44
9948006012
Pin
Loading…
↗
45
9011906055
Bolt, with washer
Loading…
↗
46
66M1132500
Anode
Loading…
↗
53
6E542761001S
Stopper
Loading…
↗
55
68F4453300
Damper, upper mount rubber
Loading…
↗
