VF115A (2024)
CYLINDER & CRANKCASE 1

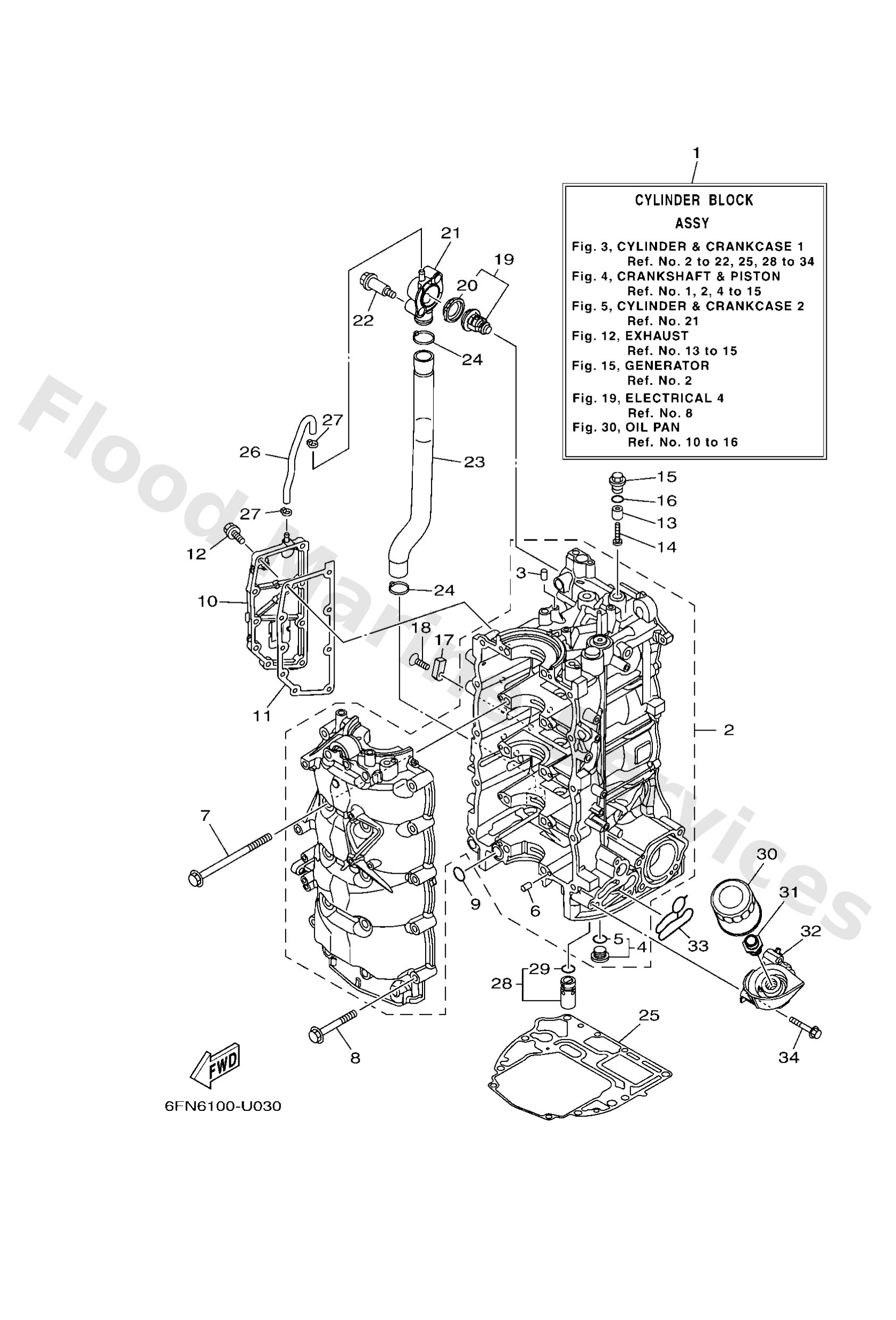

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
6EKW009B139S
Cylinder block assembly
Loading…
↗
2
6EK15109029S
Crankcase assembly
Loading…
↗
3
9360619M23
Pin, dowel
Loading…
↗
4
6EK1131300
Plug, blind
Loading…
↗
5
93210207A0
O-ring
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
9011910057
Bolt, with washer
Loading…
↗
8
9010508170
Bolt, flange
Loading…
↗
9
9321019MJ1
O-ring
Loading…
↗
10
6EK15414009S
Cover, air cleaner
Loading…
↗
11
6EK1535301
Gasket, drain
Loading…
↗
12
9010506037
Bolt, flange
Loading…
↗
13
6G81132500
Anode
Loading…
↗
14
9898005025
Screw, panhead (a93)
Loading…
↗
15
6G811197A0
Plug, blind
Loading…
↗
16
9321013M63
O-ring (6g8)
Loading…
↗
17
63P1132501
Anode
Loading…
↗
18
9015106M02
Screw, countersunk
Loading…
↗
19
6EK1241100
Thermostat
Loading…
↗
20
6EK1241200
Seal, thermostat
Loading…
↗
21
6EK1241300
Cover, thermostat
Loading…
↗
22
9010906286
Bolt
Loading…
↗
23
6EK1243A00
Hose 1
Loading…
↗
24
9046511M59
Clamp(63m)
Loading…
↗
25
6EK1135101
Gasket, cylinder
Loading…
↗
26
6EK1248300
Pipe 3
Loading…
↗
27
9046511M10
Clamp
Loading…
↗
28
6EK1349000
Relief valve assembly
Loading…
↗
29
6CB1347300
O-ring
Loading…
↗
30
5GH1344071
Element assembly, oil cleaner
Loading…
↗
31
9040120007
Bolt, union
Loading…
↗
32
6EK1344600
Connector
Loading…
↗
33
6EK1347500
Gasket
Loading…
↗
34
9010506151
Bolt, flange
Loading…
↗
