Z200PETO (2004)
CYLINDER & CRANKCASE 1

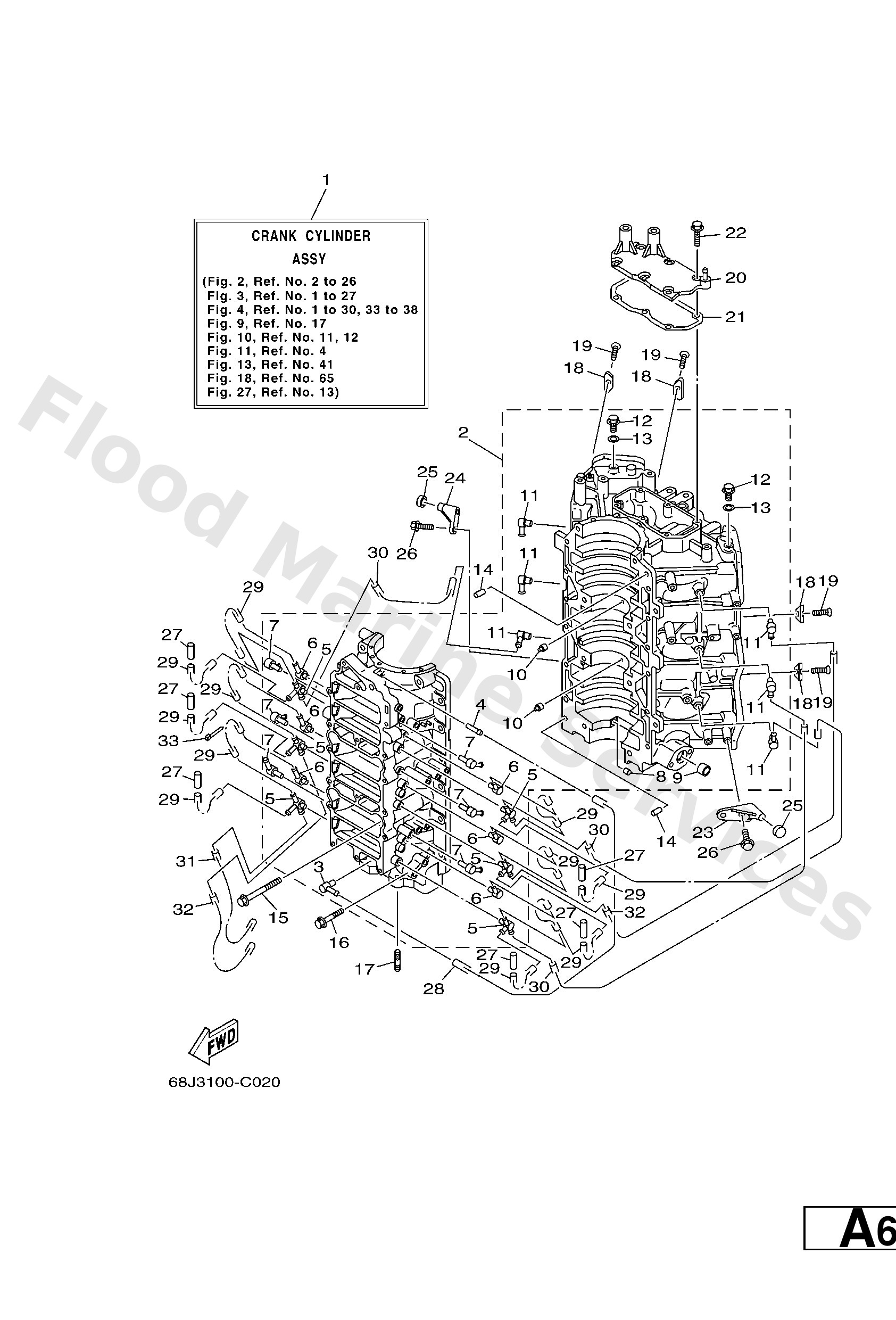

Diagram: CYLINDER & CRANKCASE 1
Parts List
Reference
Description
Price
1
60FW0090111S
Crank cylinder assembly
Loading…
↗
1
68HW0090131S
Crank cylinder assembly
Loading…
↗
2
68H15100001S
Crankcase assembly
Loading…
↗
2
60F15100001S
Crankcase assembly
Loading…
↗
3
6E51137201
Nipple, hose
Loading…
↗
4
6241448500
Pipe, joint
Loading…
↗
5
68F1137201
Nipple, hose
Loading…
↗
6
6501137001
Check valve assembly
Loading…
↗
7
68F1355200
Nozzle
Loading…
↗
8
9038406M07
Bush, bimetal formed(6r3)
Loading…
↗
9
9038414M09
Bush, bimetal formed(6r3)
Loading…
↗
10
6631151801
Lock, bearing
Loading…
↗
11
6461137001
Check valve assembly
Loading…
↗
12
9034014M00
Plug, straight screw(62y)
Loading…
↗
13
9043014115
Gasket (663)
Loading…
↗
14
9360812063
Pin, dowel (626)
Loading…
↗
15
9010510M20
Bolt (6e5)
Loading…
↗
16
9011908M94
Bolt, with washer
Loading…
↗
17
9011608M45
Bolt, stud (6e5)
Loading…
↗
18
6E51132500
Anode
Loading…
↗
19
9878004015
Screw, flat head(ga5)
Loading…
↗
20
68F11371001S
Cover
Loading…
↗
21
68F1138100
Gasket 1
Loading…
↗
22
9011906MA2
Bolt, with washer
Loading…
↗
23
6E542761001S
Stopper
Loading…
↗
24
6E542762001S
Stopper
Loading…
↗
25
68F4453300
Damper, upper mount rubber
Loading…
↗
27
9044507M03
Hose (l200)
Loading…
↗
28
9044507M10
-
Loading…
↗
29
9044507MA6
Hose (l200)
Loading…
↗
30
9044507MA4
Hose (l390)
Loading…
↗
31
9044507M45
Hose (l390)
Loading…
↗
32
9044507M27
Hose (l390)
Loading…
↗
33
9046407M20
Clamp(6h0)
Loading…
↗
