250GETO (2007)
CYLINDER & CRANKCASE 2

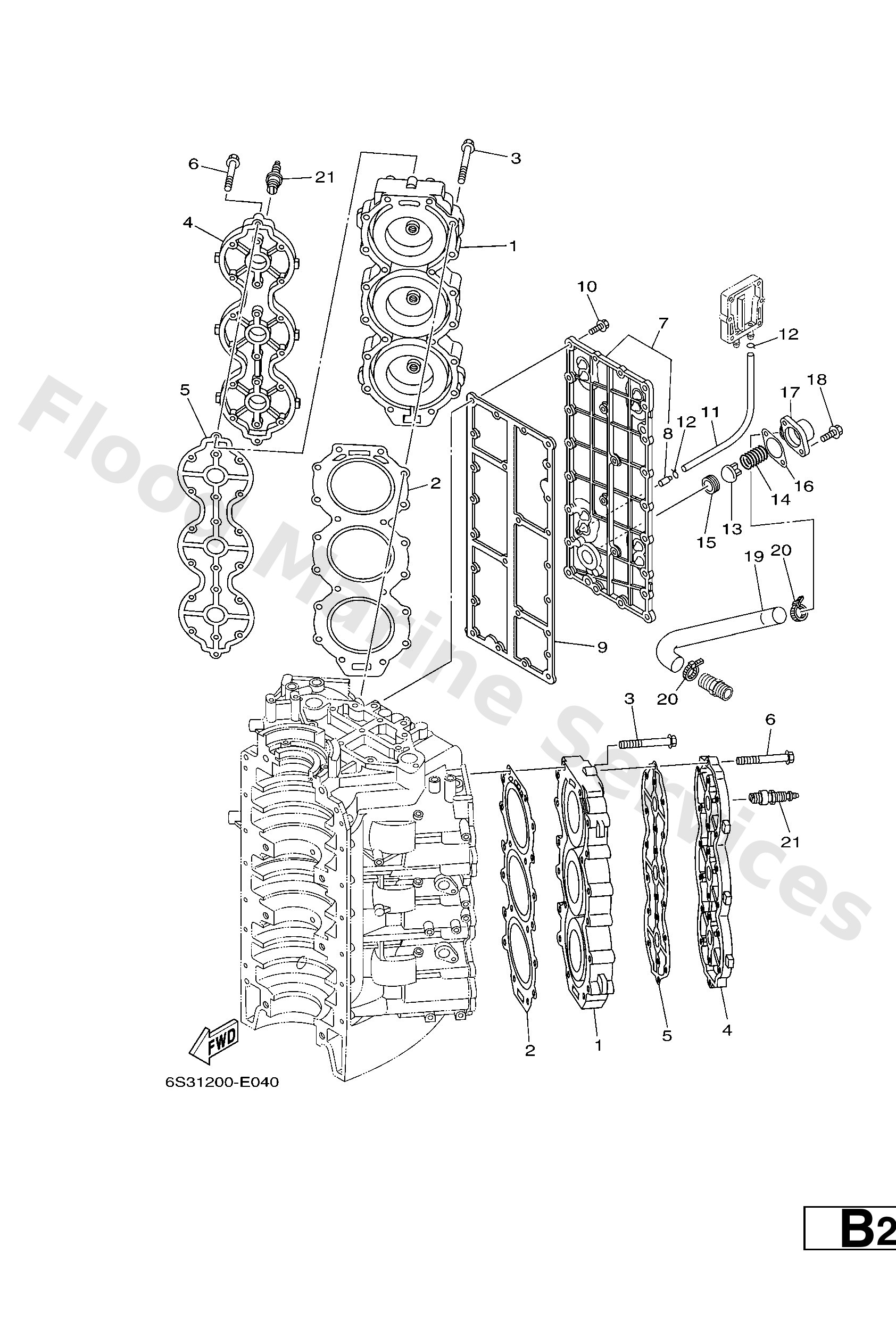

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6S311111001S
Head, cylinder 1
Loading…
↗
2
6S31118100
Gasket, cylinder head 1
Loading…
↗
3
9011908MA8
Bolt, with washer
Loading…
↗
4
6S311191001S
Cover, cylinder head 1
Loading…
↗
5
6S31119300
Gasket, head cover 1
Loading…
↗
6
9011906MA3
Bolt, with washer
Loading…
↗
7
61A41113001S
Outer cover, exhaust
Loading…
↗
8
6502437800
Pipe, joint 2
Loading…
↗
9
6S34111200
Gasket, exhaust inner cover
Loading…
↗
11
61A2431200
Pipe 2
Loading…
↗
12
9046708M18
Clip
Loading…
↗
13
60H1241600
Valve, pressure control
Loading…
↗
14
9050116M11
Spring, compression (688)
Loading…
↗
15
9048020M05
Grommet (688)
Loading…
↗
16
6G511382A1
Gasket 2
Loading…
↗
17
6G511372001S
Cover, bypass 2
Loading…
↗
18
9011906MA2
Bolt, with washer
Loading…
↗
19
61A1257600
Hose 1
Loading…
↗
20
9046513M18
Clamp
Loading…
↗
21
9470200247
Plug, spark (br8hs-10)
Loading…
↗
