F13.5AEP (2005)
CYLINDER & CRANKCASE 2

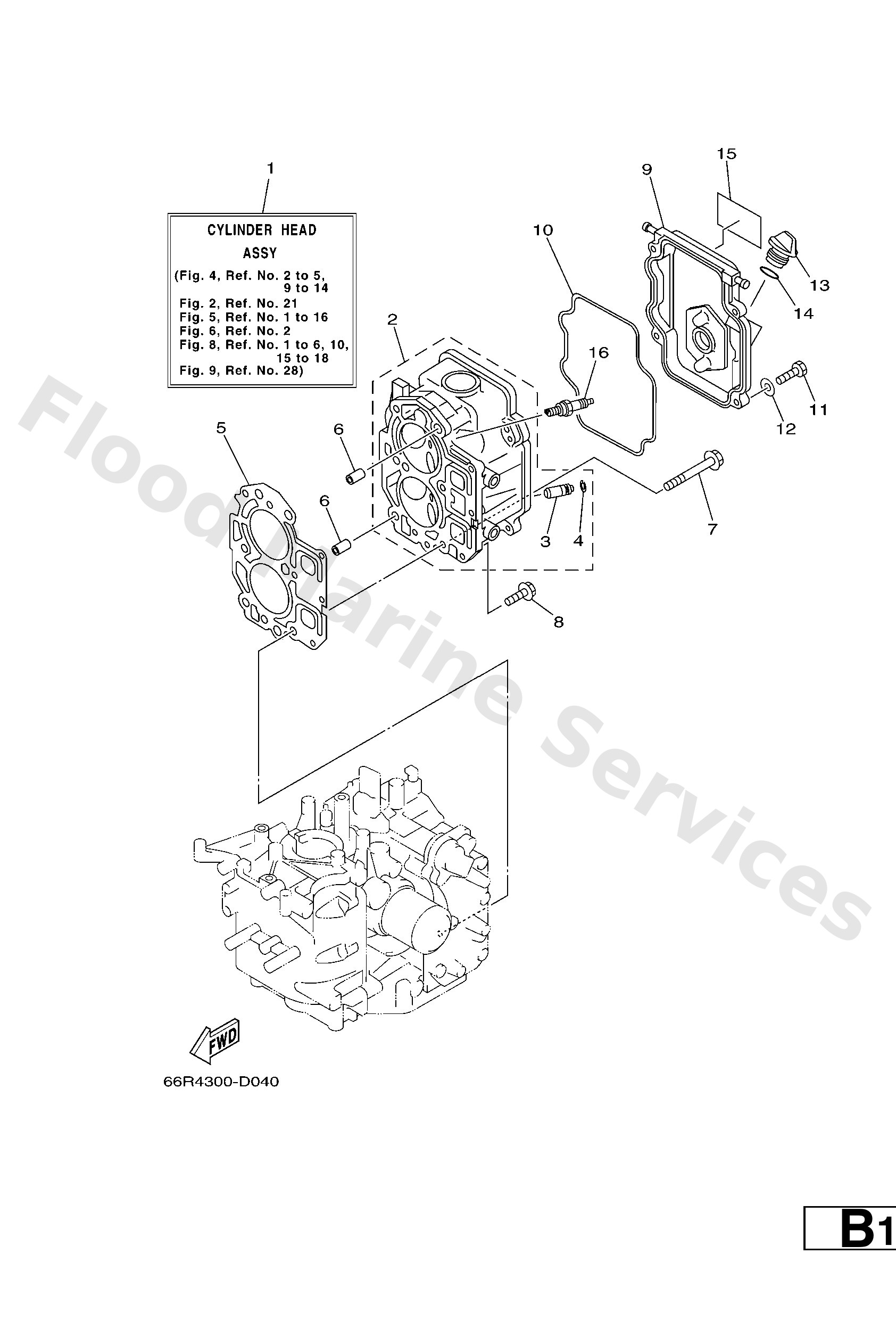

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
66MW009A021S
Cylinder Head assembly
Loading…
↗
2
66M11111011S
Head, cylinder 1
Loading…
↗
3
66M1113310
-
Loading…
↗
4
9345009M01
Circlip (6g8)
Loading…
↗
5
66M1118110
Gasket, cylinder head 1
Loading…
↗
6
9951010114
Pin, dowel(3vd)
Loading…
↗
7
9010508M78
Bolt, washer based
Loading…
↗
8
9011906MA3
Bolt, with washer
Loading…
↗
9
66M11191001S
-
Loading…
↗
10
66M1135600
Seal, cylinder 2
Loading…
↗
11
9709506020
Bolt(7u8)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6G81536300
Plug, oil
Loading…
↗
14
9321024M79
O-ring
Loading…
↗
15
66M1213860
Mark, Caution
Loading…
↗
16
9470100375
Plug, spark (dpr6ea-9)(62y)
Loading…
↗
