F2.5BMH (2021)
CYLINDER & CRANKCASE 2

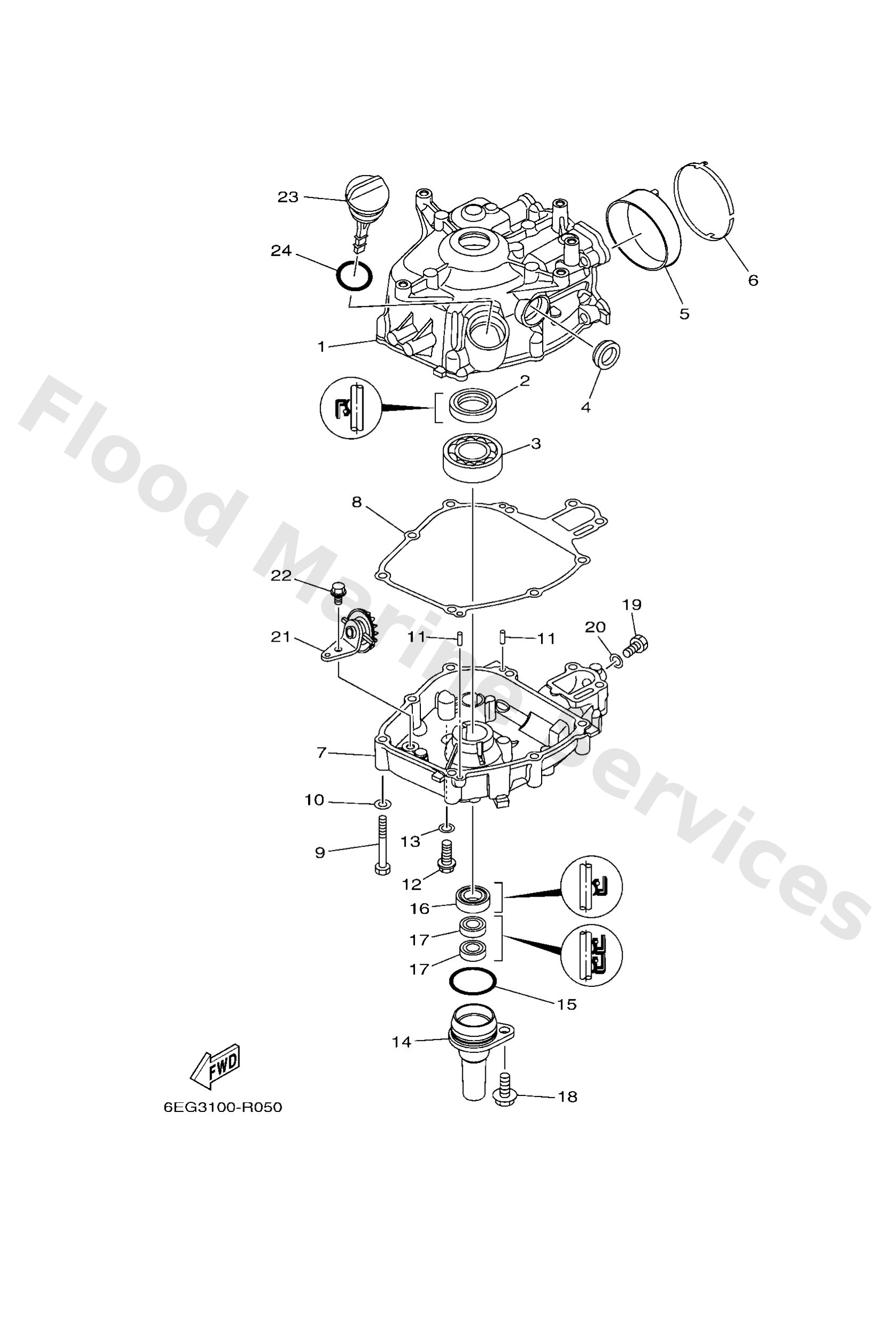

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6EGE1311001S
Cylinder 1
Loading…
↗
2
9310220814
Oil seal
Loading…
↗
3
93306272Y2
Bearing
Loading…
↗
4
3Y61536100
Gauge, level
Loading…
↗
5
6EG1466400
Grommet, water shut
Loading…
↗
6
6EG1246L00
Ring, stop 1
Loading…
↗
7
6EGE5111001S
Crankcase 1
Loading…
↗
8
6EG1135100
Gasket, cylinder
Loading…
↗
9
9701306045
Bolt, hexagon
Loading…
↗
10
9290306600
Washer, plain (646)
Loading…
↗
11
9360412M07
Pin, dowel (688)
Loading…
↗
12
9010508M76
Bolt, washer based
Loading…
↗
13
9020108818
Washer
Loading…
↗
14
6EGE539600CA
Housing, oil seal
Loading…
↗
15
9321035803
O-ring
Loading…
↗
17
9310209800
Oil seal
Loading…
↗
18
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
19
97D9508014
Bolt, hexagon deep recess
Loading…
↗
20
9043008143
Gasket (256-11198-00)
Loading…
↗
21
6EGE310200
Gear unit assembly
Loading…
↗
22
9581706012
Bolt, flange
Loading…
↗
23
6EGE536200
Plug, oil level
Loading…
↗
24
9321024800
O-ring
Loading…
↗
