F200CET (2025)
CYLINDER & CRANKCASE 2

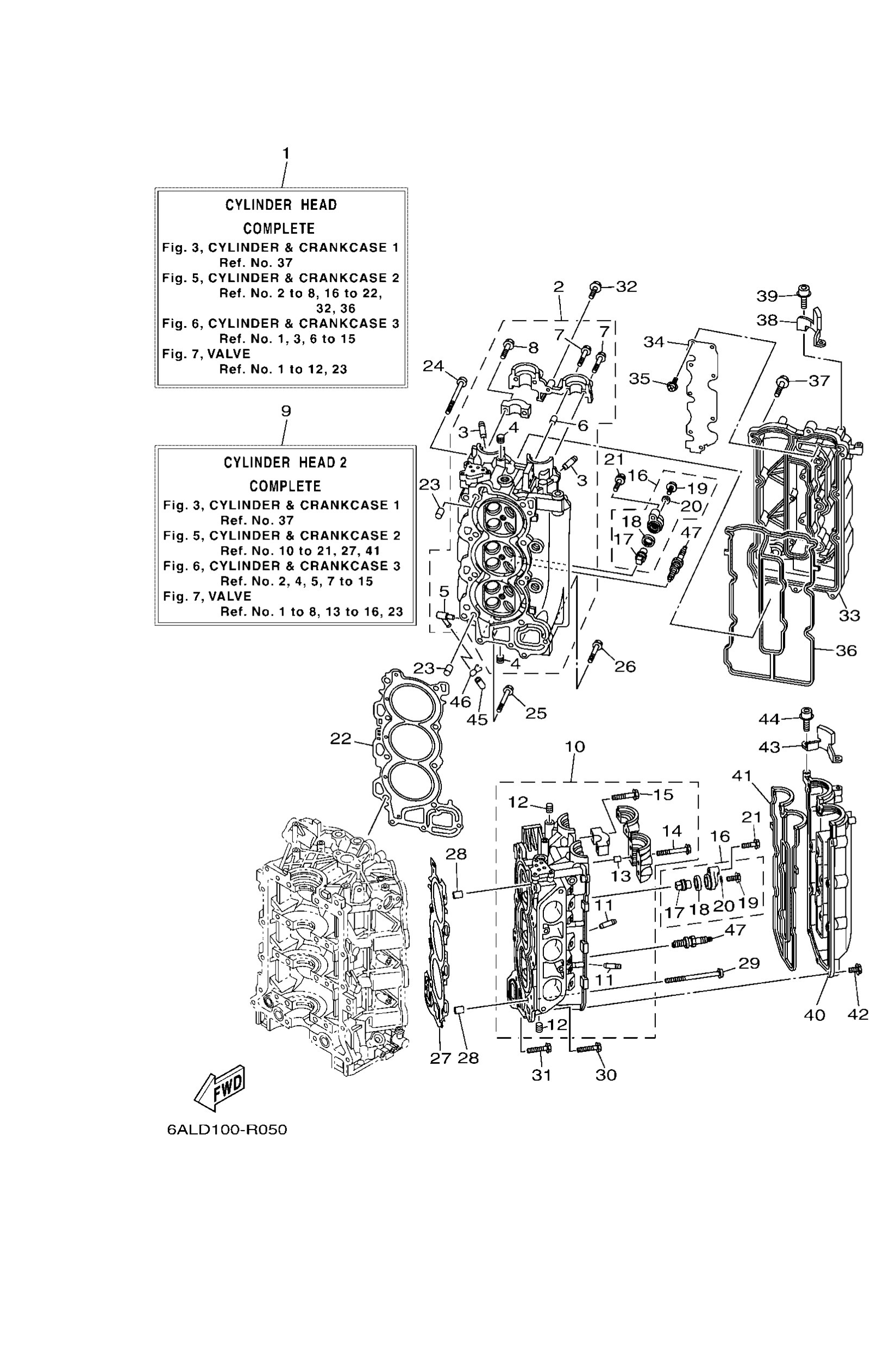

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6P2W009A079S
Cylinder head complete
Loading…
↗
2
6P211110129S
Cylinder head assembly
Loading…
↗
3
6S51113310
Guide, valve 1
Loading…
↗
4
9034451019
Plug, taper screw
Loading…
↗
5
6761137200
Nipple, hose
Loading…
↗
6
9180908006
Pin, dowel
Loading…
↗
7
9011907001
Bolt, with washer
Loading…
↗
8
9011907234
Bolt, with washer
Loading…
↗
9
6P2W009C079S
Cylinder head 2 complete
Loading…
↗
10
6P211120129S
Cylinder head assembly 2
Loading…
↗
14
9011907235
Bolt, with washer
Loading…
↗
16
69J1130102
Anode cover assembly
Loading…
↗
17
6ML1132500
Anode
Loading…
↗
18
67F1132801
Grommet, anode
Loading…
↗
19
9010506M07
Bolt (689)
Loading…
↗
20
9043006M03
Gasket (6f5)
Loading…
↗
21
97E7508540
Bolt, hexagon w/w deep recess
Loading…
↗
22
6P21118100
Gasket, cylinder head 1
Loading…
↗
23
9953014016
Pin, dowel
Loading…
↗
24
9015510009
Screw, flat fillister
Loading…
↗
25
9011908M91
Bolt, with washer
Loading…
↗
26
9011908021
Bolt, with washer
Loading…
↗
27
6P21118200
Gasket, cylinder head 2
Loading…
↗
32
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
33
6P211191009S
Cover, cylinder head 1
Loading…
↗
34
6P21113500
Plate, breather 3
Loading…
↗
35
9760704208
Screw, pan head with washer
Loading…
↗
36
6P21119300
Gasket, head cover 1
Loading…
↗
38
6P21514200
Guide 1
Loading…
↗
39
9011006150
Bolt, hexagon socket head
Loading…
↗
40
6P211192009S
Cover, cylinder head 2
Loading…
↗
41
6P21119400
Gasket, head cover 2
Loading…
↗
43
6P21514300
Guide
Loading…
↗
45
6P21344800
Cap
Loading…
↗
46
9046708M18
Clip
Loading…
↗
47
9470200400
Plug, spark (lfr6a-11)
Loading…
↗
