F25DMH (2011)
CYLINDER & CRANKCASE 2

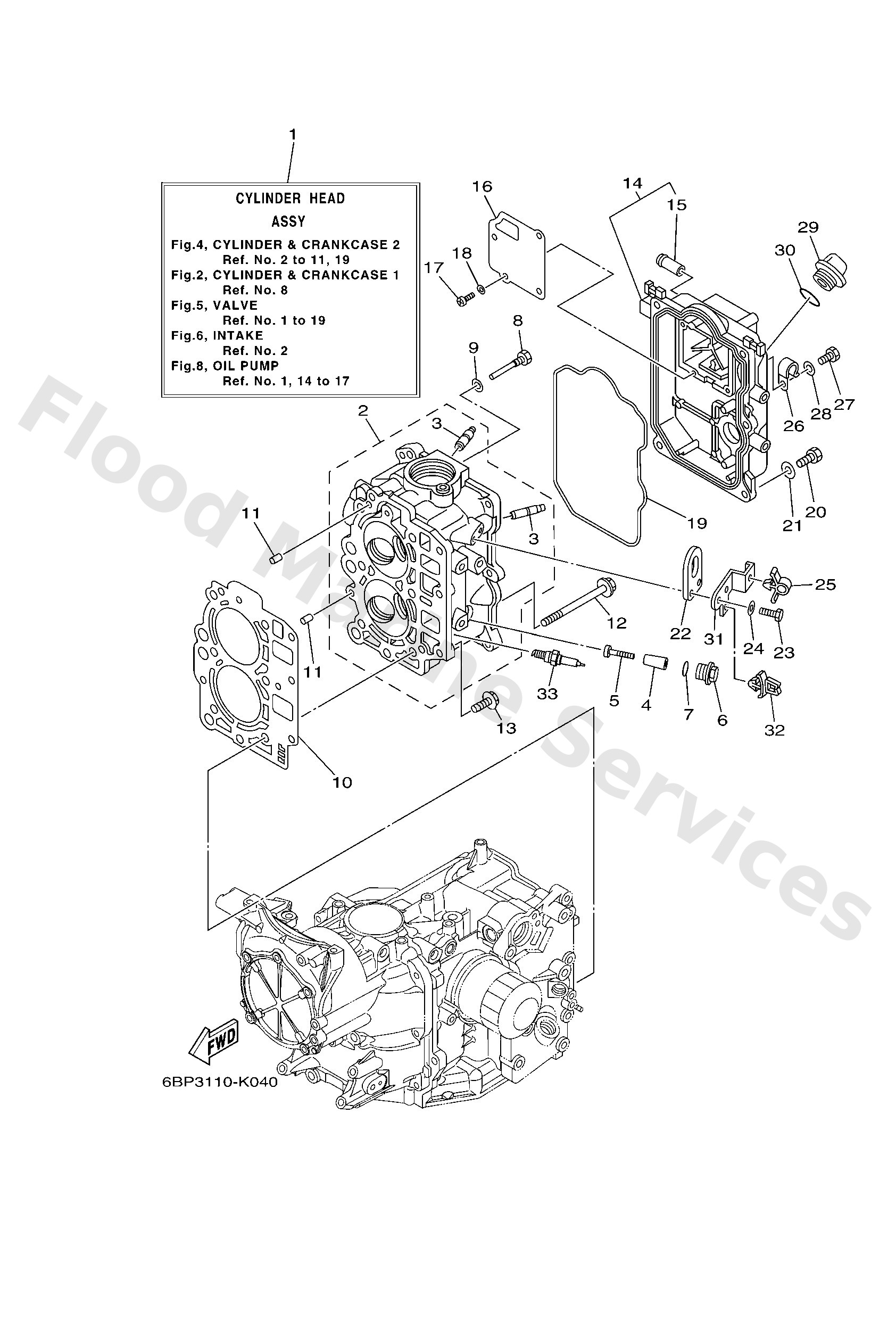

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6BLW009A001S
Cylinder head complete
Loading…
↗
2
6BL11111001S
Head, cylinder 1
Loading…
↗
3
62Y1113330
Guide, valve 1
Loading…
↗
4
6BL1132500
Anode
Loading…
↗
5
9898005035
Screw, bind
Loading…
↗
6
6G81119701
Plug, blind
Loading…
↗
7
9321013M63
O-ring (6g8)
Loading…
↗
8
9010906M65
Bolt(62y)
Loading…
↗
9
9043006014
Gasket 256113960000
Loading…
↗
10
6BL1118100
Gasket, cylinder head 1
Loading…
↗
11
9360612019
Pin, dowel (614)
Loading…
↗
12
9010509005
Bolt, flange
Loading…
↗
13
9011906MA3
Bolt, with washer
Loading…
↗
14
6BL11191001S
Cover, cylinder head 1
Loading…
↗
15
62Y1448500
Pipe, joint
Loading…
↗
16
6BG1116800
Cover, breather
Loading…
↗
17
9850704010
Screw, pan head(6g8)
Loading…
↗
18
9290704600
Washer(jf2)
Loading…
↗
19
6BL1135600
Seal, cylinder 2
Loading…
↗
20
9709506020
Bolt(7u8)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
62Y1111900
Hanger, engine
Loading…
↗
25
9046409023
Clamp
Loading…
↗
26
9046508M83
Clamp
Loading…
↗
27
9709506012
Bolt(gh1)
Loading…
↗
29
6G81536300
Plug, oil
Loading…
↗
30
9321024M79
O-ring
Loading…
↗
31
6BL8239800
Plate 3
Loading…
↗
32
9046406001
Clamp
Loading…
↗
33
9470200418
Plug, spark (dpr6eb-9)
Loading…
↗
