F40FED (2016)
CYLINDER & CRANKCASE 2

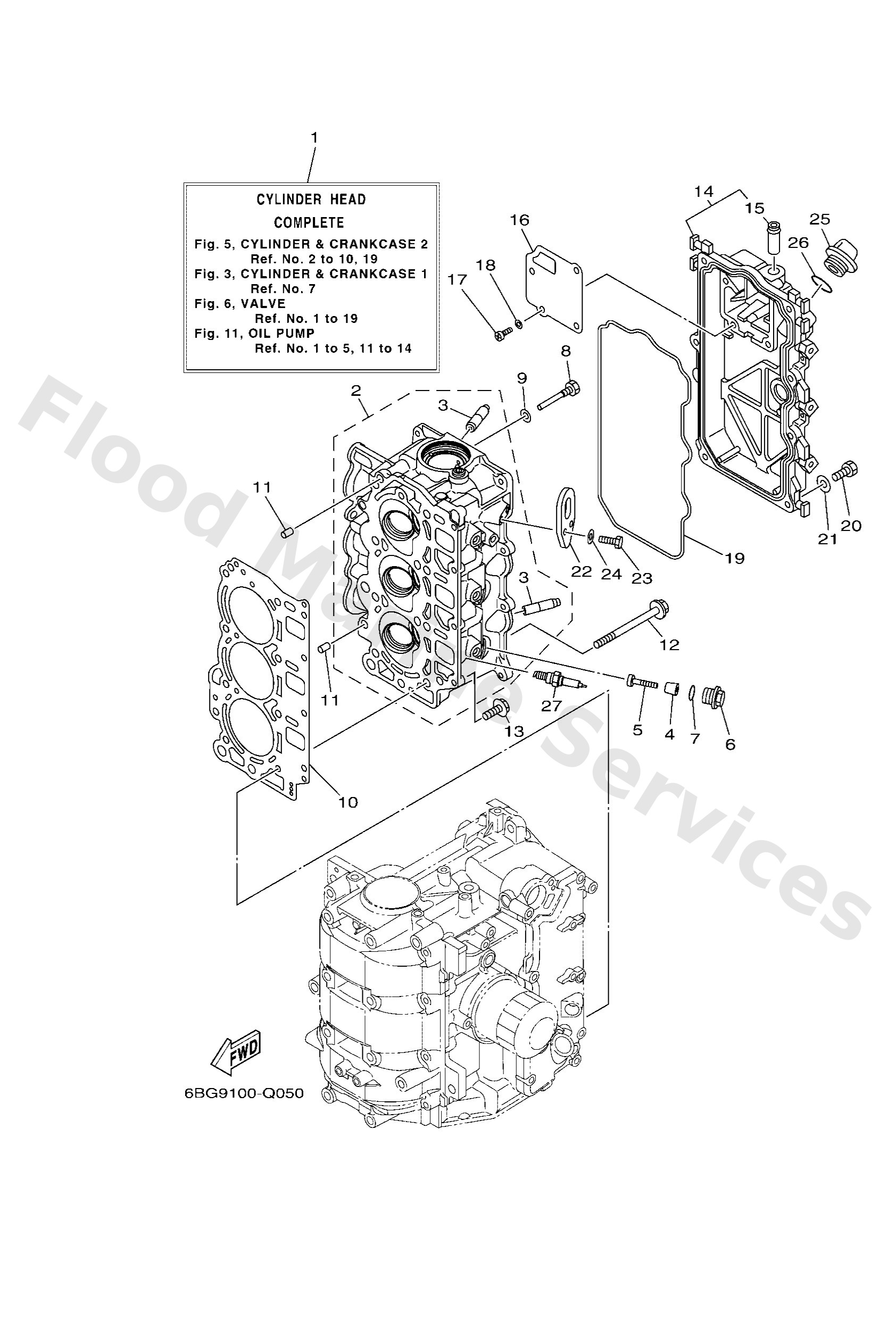

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6BGW009A029S
Cylinder head complete
Loading…
↗
2
6BG11111109S
Head, cylinder 1
Loading…
↗
3
62Y1113330
Guide, valve 1
Loading…
↗
4
6G81132500
Anode
Loading…
↗
5
9898005025
Screw, panhead (a93)
Loading…
↗
6
6G811197A0
Plug, blind
Loading…
↗
7
9321013M63
O-ring (6g8)
Loading…
↗
8
9010906M65
Bolt(62y)
Loading…
↗
9
9043006014
Gasket 256113960000
Loading…
↗
10
6BG1118100
Gasket, cylinder head 1
Loading…
↗
11
9953008012
Pin, dowel(6g8)
Loading…
↗
12
9010509009
Bolt, flange
Loading…
↗
13
9011906MA3
Bolt, with washer
Loading…
↗
14
6BG11191009S
Cover, cylinder head 1
Loading…
↗
15
62Y1448500
Pipe, joint
Loading…
↗
16
6BG1116800
Cover, breather
Loading…
↗
17
9850704010
Screw, pan head(6g8)
Loading…
↗
18
9290704600
Washer(jf2)
Loading…
↗
19
6BG1135600
Seal, cylinder 2
Loading…
↗
20
9709506020
Bolt(7u8)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6BG1111900
Hanger, engine
Loading…
↗
25
6G81536300
Plug, oil
Loading…
↗
26
9321024M79
O-ring
Loading…
↗
27
9470200418
Plug, spark (dpr6eb-9)
Loading…
↗
