F4AMH (2005)
CYLINDER & CRANKCASE 2

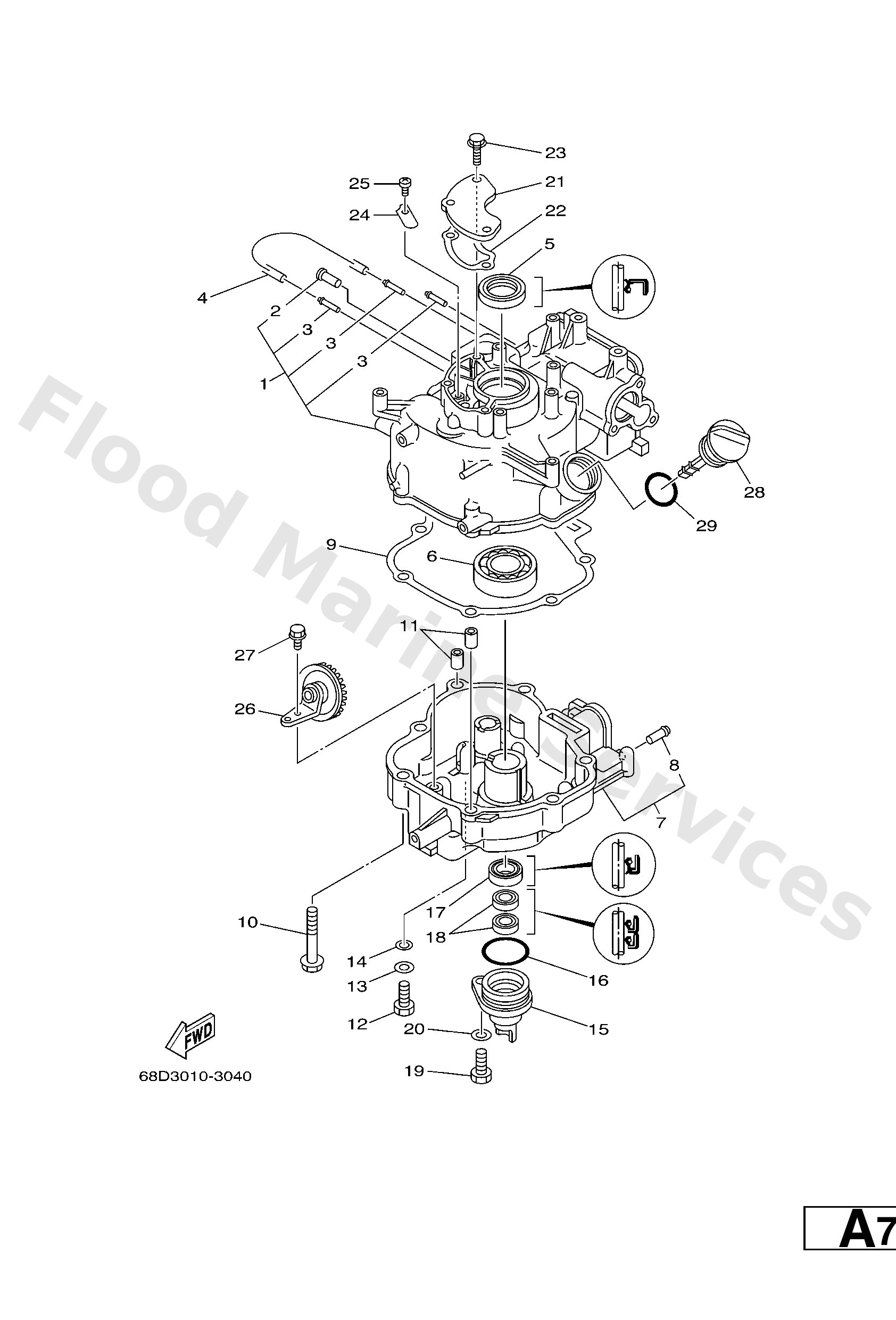

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
68DE1311021S
Cylinder 1
Loading…
↗
2
6502437800
Pipe, joint 2
Loading…
↗
3
6H11448500
Pipe, joint
Loading…
↗
4
9044507806
Hose (l200)
Loading…
↗
5
9310225090
Oil seal (25x40x5-256)
Loading…
↗
6
93306205YD
Bearing (6k8)
Loading…
↗
7
68DE5111001S
Crankcase 1
Loading…
↗
9
68D11351A0
Gasket, cylinder
Loading…
↗
10
9757508550
Bolt, with washer
Loading…
↗
11
9951010114
Pin, dowel(3vd)
Loading…
↗
12
9709508020
Bolt, hexagon
Loading…
↗
13
9299508600
Washer, plain (663)
Loading…
↗
14
9020108818
Washer
Loading…
↗
15
68DE5396005B
Housing, oil seal
Loading…
↗
16
9321035537
O-ring
Loading…
↗
17
9310220108
Oil seal
Loading…
↗
18
9310210004
Oil seal
Loading…
↗
21
68DE116800
Cover, Breather
Loading…
↗
22
68DE1169A0
Gasket, Breather Cover
Loading…
↗
23
9011906M80
Bolt(gj3)
Loading…
↗
24
68DE534600
Breather 1
Loading…
↗
25
9850304006
Screw, pan head (7h3)
Loading…
↗
26
68DE310200
Gear unit assembly
Loading…
↗
27
9581706012
Bolt, flange
Loading…
↗
28
68DE536200
Plug, oil level
Loading…
↗
29
9321024M79
O-ring
Loading…
↗
