F5AMH (2014)
CYLINDER & CRANKCASE 2

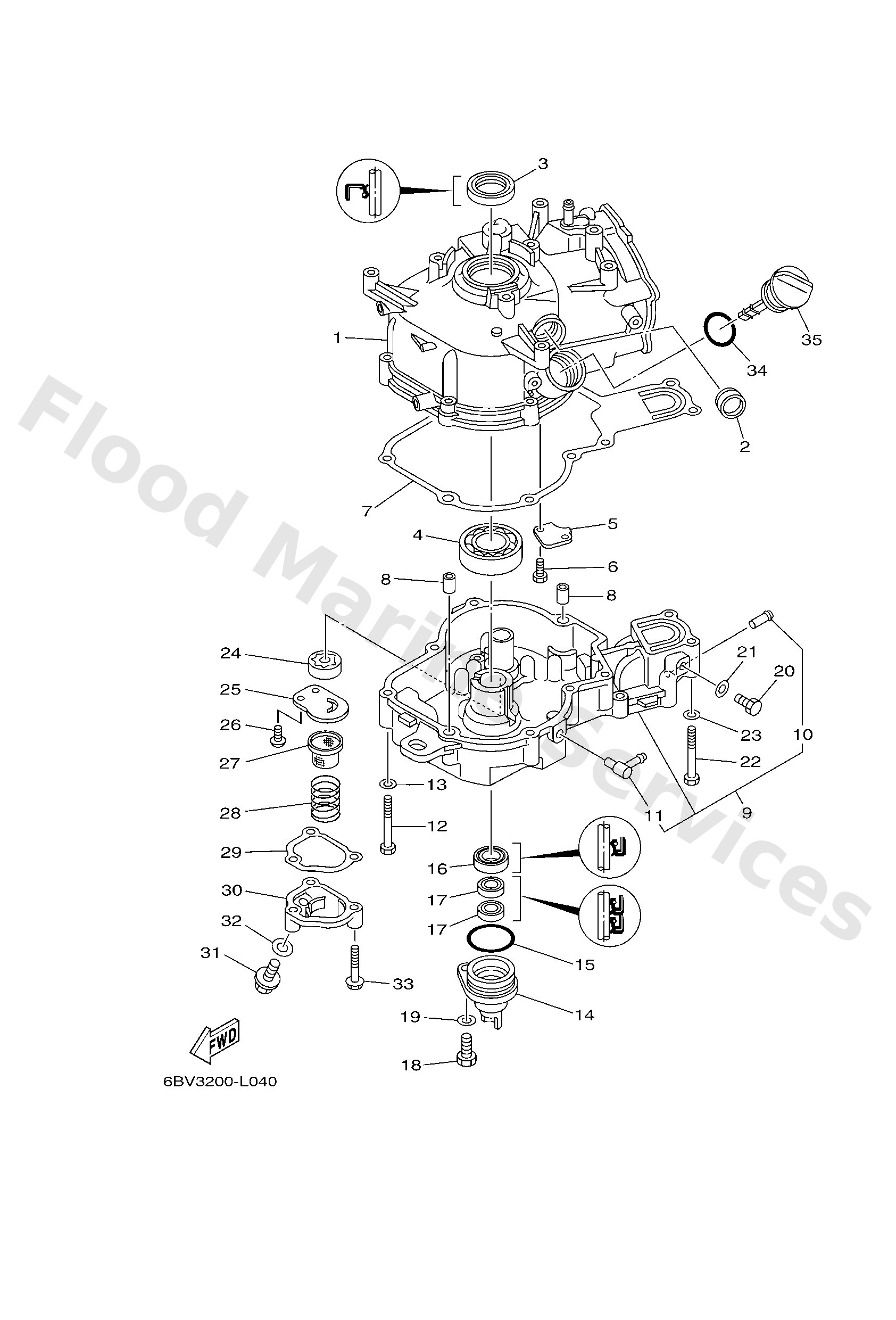

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6BXE1311001S
Cylinder 1
Loading…
↗
2
3Y61536100
Gauge, level
Loading…
↗
3
9310225022
Oil seal
Loading…
↗
4
93306205B2
Bearing
Loading…
↗
5
6BXE116800
Cover, breather
Loading…
↗
6
9701305010
Bolt, hexagon
Loading…
↗
7
6BX1135100
Gasket, cylinder
Loading…
↗
8
9953010114
Pin, dowel(3vd)
Loading…
↗
9
6BXE5111001S
Crankcase 1
Loading…
↗
10
6502437800
Pipe, joint 2
Loading…
↗
11
6761137200
Nipple, hose
Loading…
↗
12
9701306050
Bolt, hexagon
Loading…
↗
13
9290306600
Washer, plain (646)
Loading…
↗
14
68DE5396005B
Housing, oil seal
Loading…
↗
15
9321035537
O-ring
Loading…
↗
16
9310220108
Oil seal
Loading…
↗
17
9310210004
Oil seal
Loading…
↗
18
9709508020
Bolt, hexagon
Loading…
↗
19
9299508600
Washer, plain (663)
Loading…
↗
20
9709508014
Bolt, hexagon deep recess
Loading…
↗
21
9043008800
Gasket (256-11198-00)
Loading…
↗
24
6BXE331000
Rotor assembly
Loading…
↗
25
6BXE331600
Cover, pump
Loading…
↗
26
9851706012
Screw, pan
Loading…
↗
27
51Y1341100
Strainer, oil
Loading…
↗
28
9050118576
Spring, compression (3y1)
Loading…
↗
29
6BXE347500
Gasket
Loading…
↗
30
6BXE3417001S
Cover, strainer
Loading…
↗
31
9010508M76
Bolt, washer based
Loading…
↗
32
9020108818
Washer
Loading…
↗
33
9757506535
Bolt, hexagon w/w deep recess
Loading…
↗
34
9321024M79
O-ring
Loading…
↗
35
68DE536200
Plug, oil level
Loading…
↗
