Yamaha Outboard Parts - CYLINDER & CRANKCASE 2 - F8FMH (2022) | Flood Marine

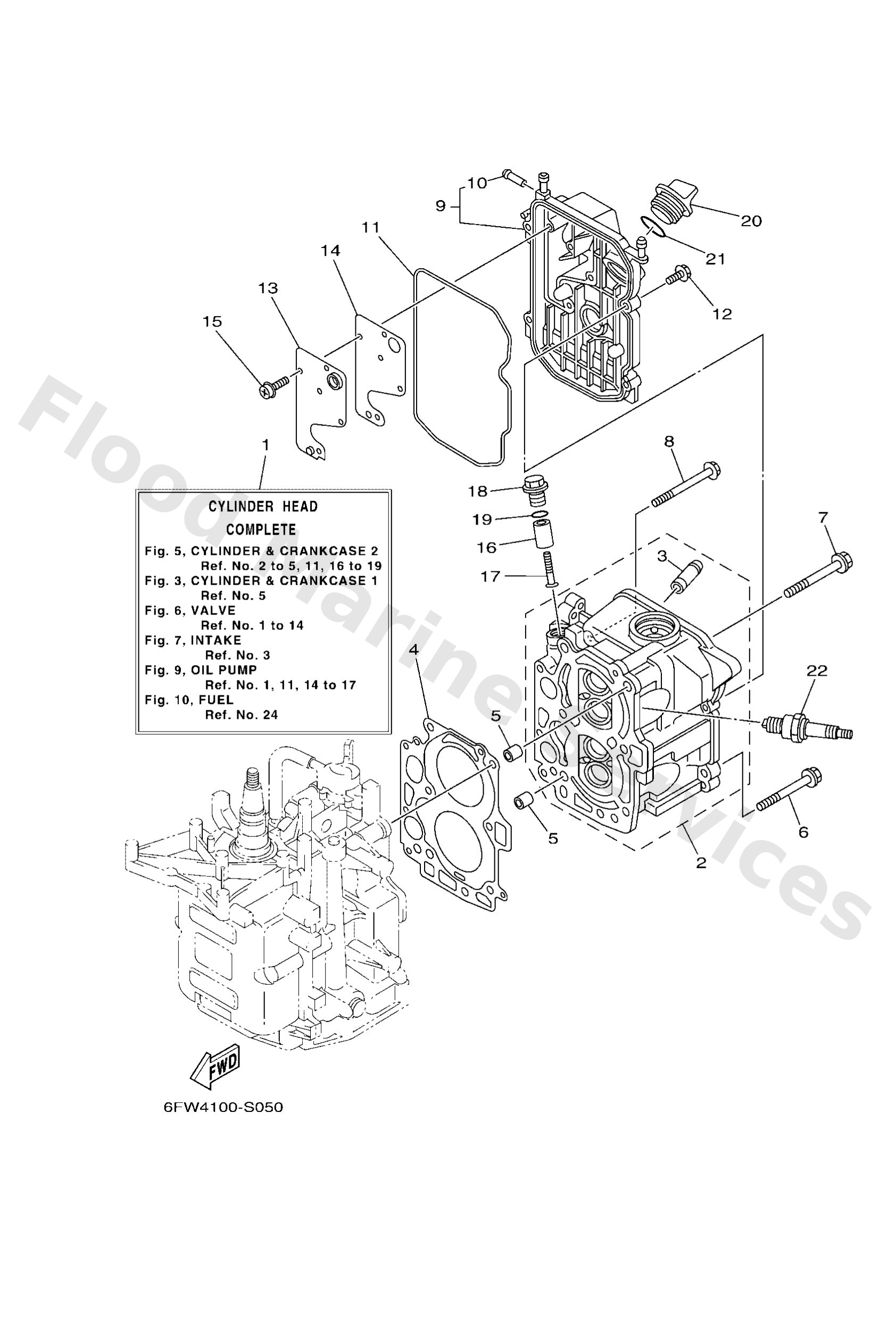

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

Reference
Description
Price


1
6AUW009A021S
Cylinder head complete
Loading…

↗
2
6AU11111001S
Head, cylinder 1
Loading…

↗
3
6AU1113310
Guide, valve 1
Loading…

↗
4
68T1118100
Gasket, cylinder head 1
Loading…

↗
5
9953010114
Pin, dowel(3vd)
Loading…

↗
6
9010508M36
Bolt (6g8)
Loading…

↗
7
9010508M78
Bolt, washer based
Loading…

↗
8
9011906049
Bolt, with washer
Loading…

↗
9
68T11191011S
Cover, cylinder head 1
Loading…

↗
10
6502437800
Pipe, joint 2
Loading…

↗
11
68T1135600
Seal, cylinder 2
Loading…

↗
12
97E9506520
Bolt, hexagon w/w deep recess
Loading…

↗
13
68T1116800
Cover, breather
Loading…

↗
14
68T11169A0
Gasket, breather cover
Loading…

↗
15
9760704210
Screw, pan head with washer
Loading…

↗
16
6G81132500
Anode
Loading…

↗
17
9898005025
Screw, panhead (a93)
Loading…

↗
18
6G811197A0
Plug, blind
Loading…

↗
19
9321013M63
O-ring (6g8)
Loading…

↗
20
6G81536300
Plug, oil
Loading…

↗
21
9321024M79
O-ring
Loading…

↗
22
9470200274
Plug, spark (br6hs-10)
Loading…

↗
