F9.9FMH (2011)
CYLINDER & CRANKCASE 2

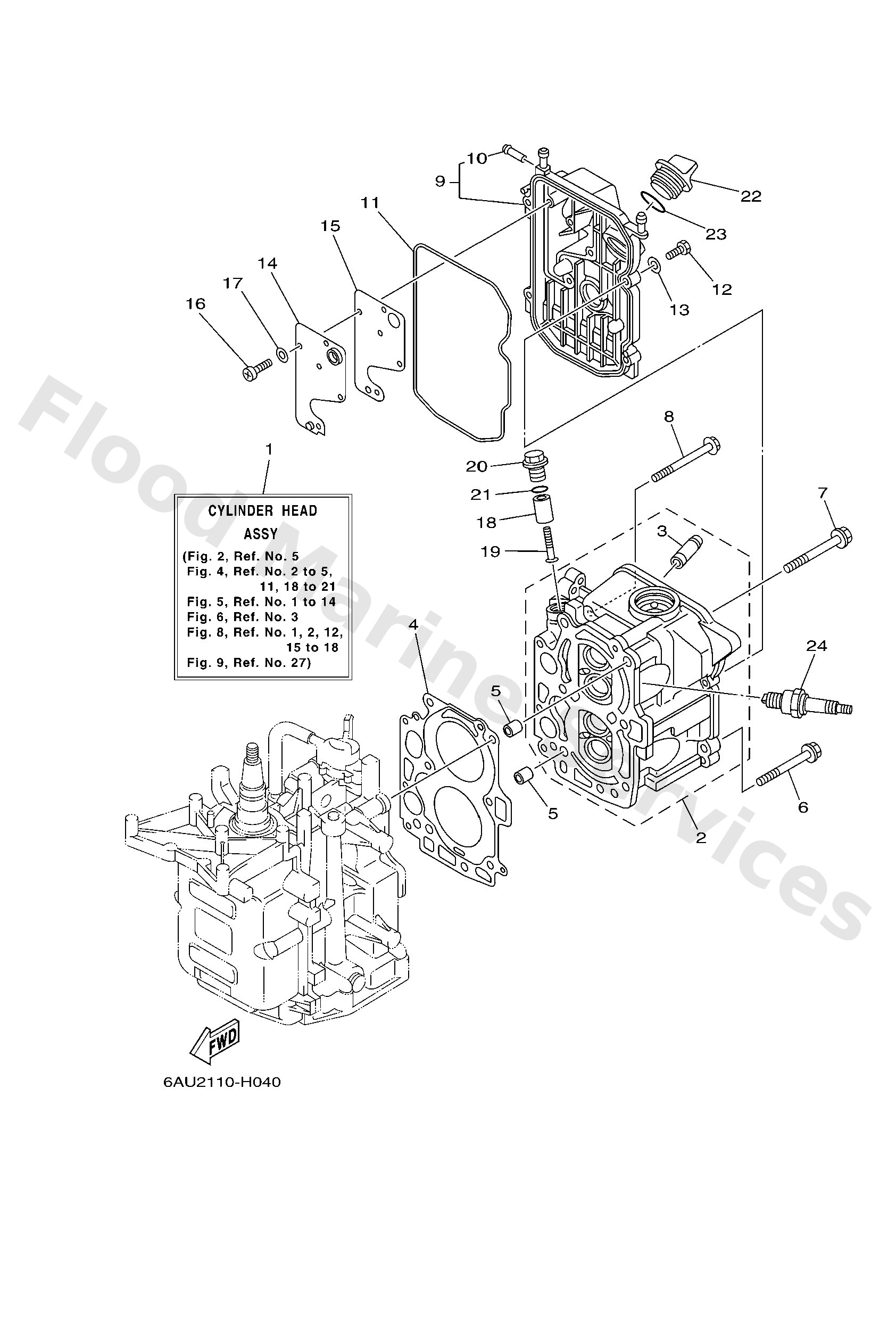

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6AUW009A011S
Cylinder head complete
Loading…
↗
2
6AU11111001S
Head, cylinder 1
Loading…
↗
3
6AU1113310
Guide, valve 1
Loading…
↗
4
68T1118100
Gasket, cylinder head 1
Loading…
↗
5
9951010114
Pin, dowel(3vd)
Loading…
↗
6
9010508M36
Bolt (6g8)
Loading…
↗
7
9010508M78
Bolt, washer based
Loading…
↗
8
9011906049
Bolt, with washer
Loading…
↗
9
68T11191001S
Cover, cylinder head 1
Loading…
↗
10
6502437800
Pipe, joint 2
Loading…
↗
11
68T1135600
Seal, cylinder 2
Loading…
↗
12
9709506020
Bolt(7u8)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
68T1116800
Cover, breather
Loading…
↗
15
68T11169A0
Gasket, breather cover
Loading…
↗
16
9850704010
Screw, pan head(6g8)
Loading…
↗
17
9290704600
Washer(jf2)
Loading…
↗
18
6G81132500
Anode
Loading…
↗
19
9788005025
Screw, panhead (a93)
Loading…
↗
20
6G81119701
Plug, blind
Loading…
↗
21
9321013M63
O-ring (6g8)
Loading…
↗
22
6G81536300
Plug, oil
Loading…
↗
23
9321024M79
O-ring
Loading…
↗
24
9470200274
Plug, spark (br6hs-10)
Loading…
↗
