F9.9HMH1 (2024)
CYLINDER & CRANKCASE 2

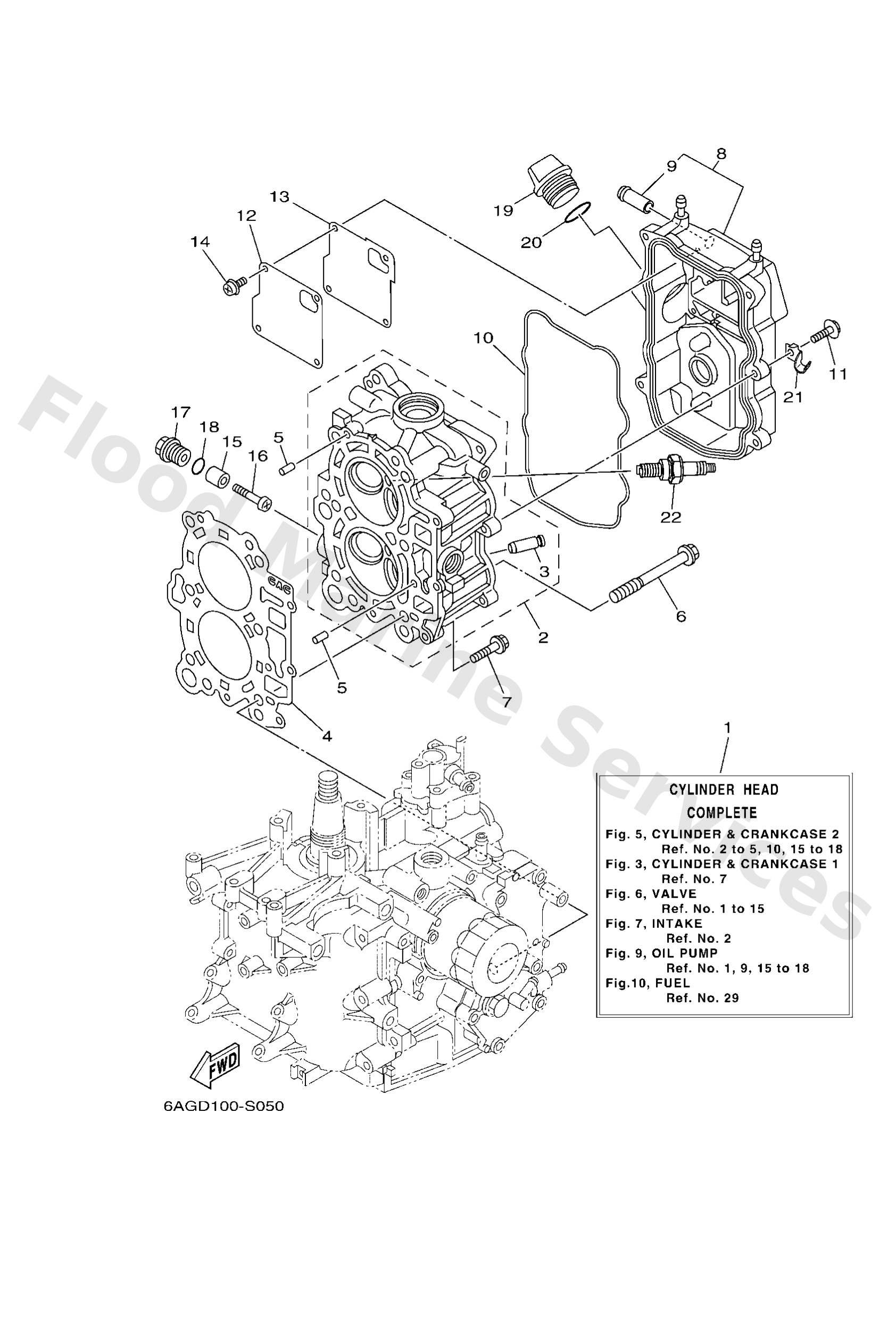

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6AGW009A021S
-
Loading…
↗
2
6AH11111101S
Head, cylinder 1
Loading…
↗
3
6AH1113310
Guide, valve 1
Loading…
↗
4
6AG1118110
Gasket, cylinder head 1
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9010509006
Bolt, flange
Loading…
↗
7
9011906MA3
Bolt, with washer
Loading…
↗
8
6AH11191001S
Cover, cylinder head 1
Loading…
↗
9
6AH1137200
Nipple, hose
Loading…
↗
10
6AH1135600
Seal, cylinder 2
Loading…
↗
11
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
12
6AH1116800
Cover, breather
Loading…
↗
13
6AH1116900
Gasket, breather cover
Loading…
↗
14
9760704210
Screw, pan head with washer
Loading…
↗
15
6G81132500
Anode
Loading…
↗
16
9898005025
Screw, panhead (a93)
Loading…
↗
17
6G811197A0
Plug, blind
Loading…
↗
18
9321013M63
O-ring (6g8)
Loading…
↗
19
6G81536300
Plug, oil
Loading…
↗
20
9321024M79
O-ring
Loading…
↗
21
9046508059
Clamp
Loading…
↗
22
9470200418
Plug, spark (dpr6eb-9)
Loading…
↗
