F9.9HWH1 (2017)
CYLINDER & CRANKCASE 2

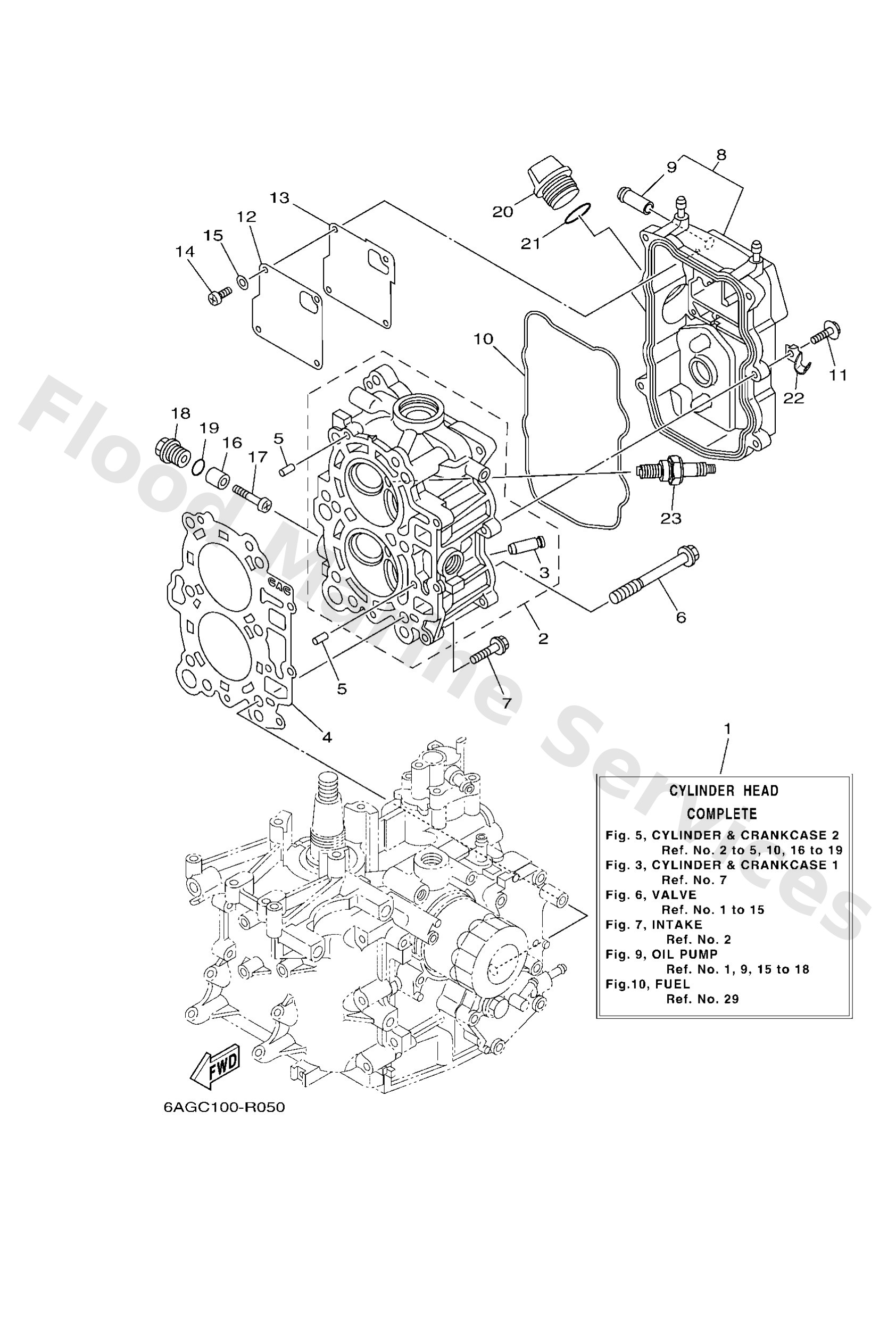

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6AGW009A011S
Cylinder head complete
Loading…
↗
2
6AH11111101S
Head, cylinder 1
Loading…
↗
3
6AH1113310
Guide, valve 1
Loading…
↗
4
6AG1118110
Gasket, cylinder head 1
Loading…
↗
5
9360612019
Pin, Dowel
Loading…
↗
6
9010509006
Bolt, flange
Loading…
↗
7
9011906MA3
Bolt, With Washer
Loading…
↗
8
6AH11191001S
Cover, cylinder head 1
Loading…
↗
9
6AH1137200
Nipple, hose
Loading…
↗
10
6AH1135600
Seal, cylinder 2
Loading…
↗
11
9759506520
Bolt(7u8)
Loading…
↗
12
6AH1116800
Cover, breather
Loading…
↗
13
6AH1116900
Gasket, breather cover
Loading…
↗
14
9850704010
Screw, pan head(6g8)
Loading…
↗
15
9290704600
Washer(jf2)
Loading…
↗
16
6G81132500
Anode
Loading…
↗
17
9898005025
Screw, panhead (a93)
Loading…
↗
18
6G811197A0
Plug, blind
Loading…
↗
19
9321013M63
O-ring (6g8)
Loading…
↗
20
6G81536300
Plug, Oil
Loading…
↗
21
9321024M79
-
Loading…
↗
22
9046508059
Clamp
Loading…
↗
23
9470200418
Plug, spark (dpr6eb-9)
Loading…
↗
