FL150AET (2005)
CYLINDER & CRANKCASE 2

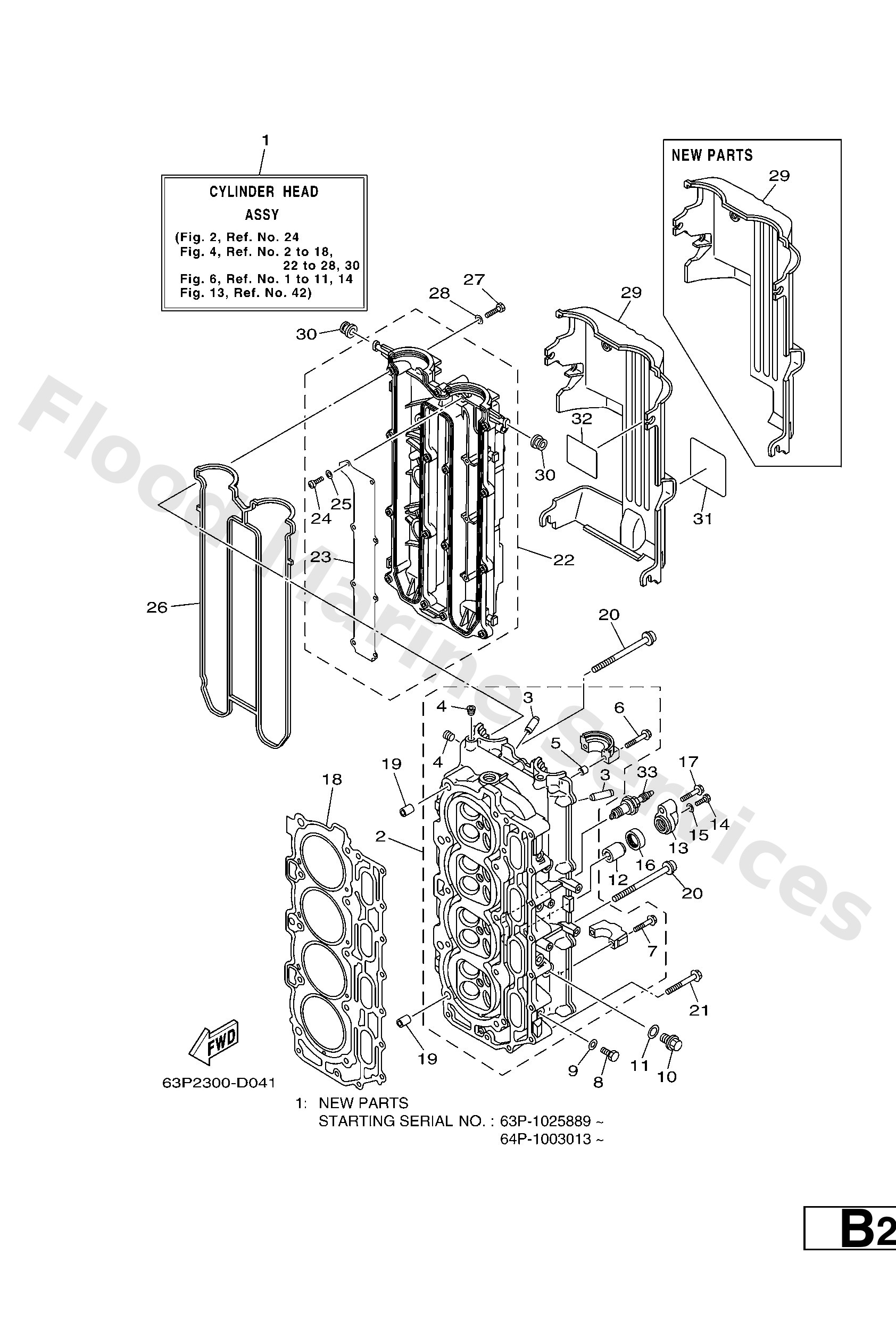

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
63PW009A011S
NEW PARTS *1
Cylinder head complete
Loading…
↗
1
63PW009A001S
Cylinder head complete
Loading…
↗
2
63P111100094
Cylinder head assembly
Loading…
↗
3
69J1113310
Guide, intake valve
Loading…
↗
4
9034451019
Plug, taper screw
Loading…
↗
5
9180908006
Pin, dowel
Loading…
↗
6
9011907235
Bolt, with washer
Loading…
↗
7
9011907234
Bolt, with washer
Loading…
↗
8
9709508014
Bolt, hexagon deep recess
Loading…
↗
9
9043008143
Gasket (256-11198-00)
Loading…
↗
10
9034014M06
Plug, straight screw(62y)
Loading…
↗
11
9043014115
Gasket (663)
Loading…
↗
12
68V1132501
Anode
Loading…
↗
13
69J113270094
Anode cover assembly
Loading…
↗
14
9707506020
Bolt(7u8)
Loading…
↗
28
9299506600
NEW PARTS *1
Washer, plain (646)
Loading…
↗
16
67F1132800
Grommet, anode
Loading…
↗
17
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
18
63P1118100
Gasket, cylinder head 1
Loading…
↗
19
9038710M08
Pin, dowel
Loading…
↗
20
9015510001
Screw, flat fillister
Loading…
↗
21
9011908M91
Bolt, with washer
Loading…
↗
22
63P11191001S
Cover, cylinder head 1
Loading…
↗
23
63P1113500
Plate, breather 3
Loading…
↗
24
9850704008
Screw, pan head(jg1)
Loading…
↗
25
9290704600
Washer(jf2)
Loading…
↗
26
63P1119300
Gasket, head cover 1
Loading…
↗
27
9709506030
NEW PARTS *1
Bolt(jf7)
Loading…
↗
29
63P1119200
Cover, cylinder head 2
Loading…
↗
29
63P1119201
NEW PARTS *1
Cover, cylinder head 2
Loading…
↗
30
9048012072
NEW PARTS *1
Grommet(53y)
Loading…
↗
31
63P8362600
Mark 6
Loading…
↗
32
67F1213860
-
Loading…
↗
33
9470200391
Plug, spark (lfr5a-11)
Loading…
↗
