FL150DET (2015)
CYLINDER & CRANKCASE 2

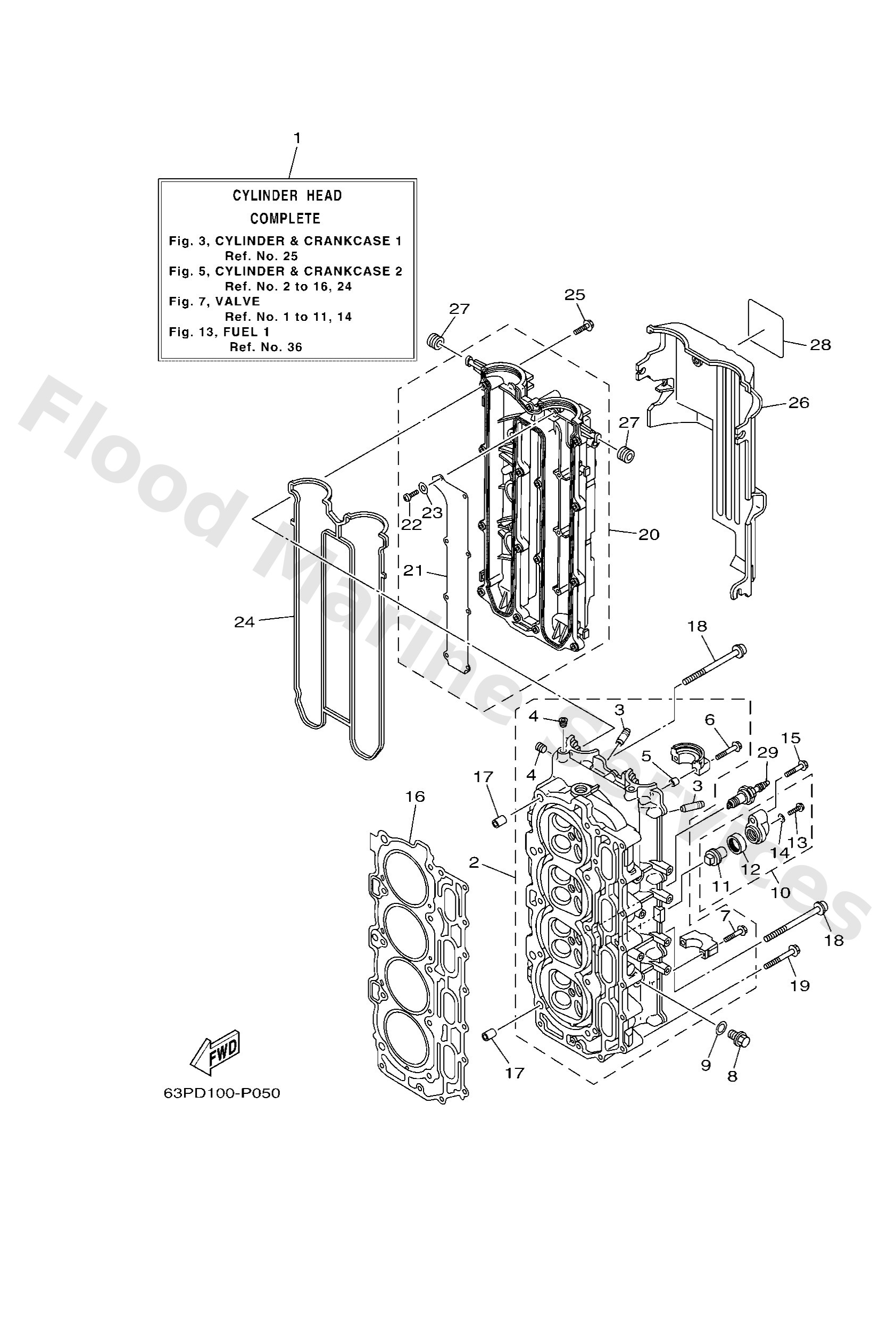

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
63PW009A049S
Cylinder head complete
Loading…
↗
2
63P11110119S
Cylinder head assembly
Loading…
↗
3
6DA1113310
Guide, valve 1
Loading…
↗
4
9034451019
Plug, taper screw
Loading…
↗
5
9180908006
Pin, dowel
Loading…
↗
6
9011907235
Bolt, with washer
Loading…
↗
7
9011907234
Bolt, with washer
Loading…
↗
8
9034014M06
Plug, straight screw(62y)
Loading…
↗
9
9043014115
Gasket (663)
Loading…
↗
10
69J1130100
Anode cover assembly
Loading…
↗
11
67F1132501
Anode
Loading…
↗
12
67F1132800
Grommet, anode
Loading…
↗
13
9010506M07
Bolt (689)
Loading…
↗
14
9043006M03
Gasket (6f5)
Loading…
↗
15
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
16
63P1118100
Gasket, cylinder head 1
Loading…
↗
17
9953014016
Pin, dowel
Loading…
↗
18
9015510006
Screw, flat fillister
Loading…
↗
19
9011908M91
Bolt, with washer
Loading…
↗
20
63P11191009S
Cover, cylinder head 1
Loading…
↗
21
63P1113500
Plate, breather 3
Loading…
↗
22
9850704008
Screw, pan head(jg1)
Loading…
↗
23
9290704600
Washer(jf2)
Loading…
↗
24
63P1119300
Gasket, head cover 1
Loading…
↗
25
9759506530
Bolt, hexagon w/w deep recess
Loading…
↗
26
63P1119201
Cover, cylinder head 2
Loading…
↗
27
9048012314
Grommet(3aa)
Loading…
↗
28
63P8362600
Mark 6
Loading…
↗
29
9470200391
Plug, spark (lfr5a-11)
Loading…
↗
