FL200FET (2016)
CYLINDER & CRANKCASE 2

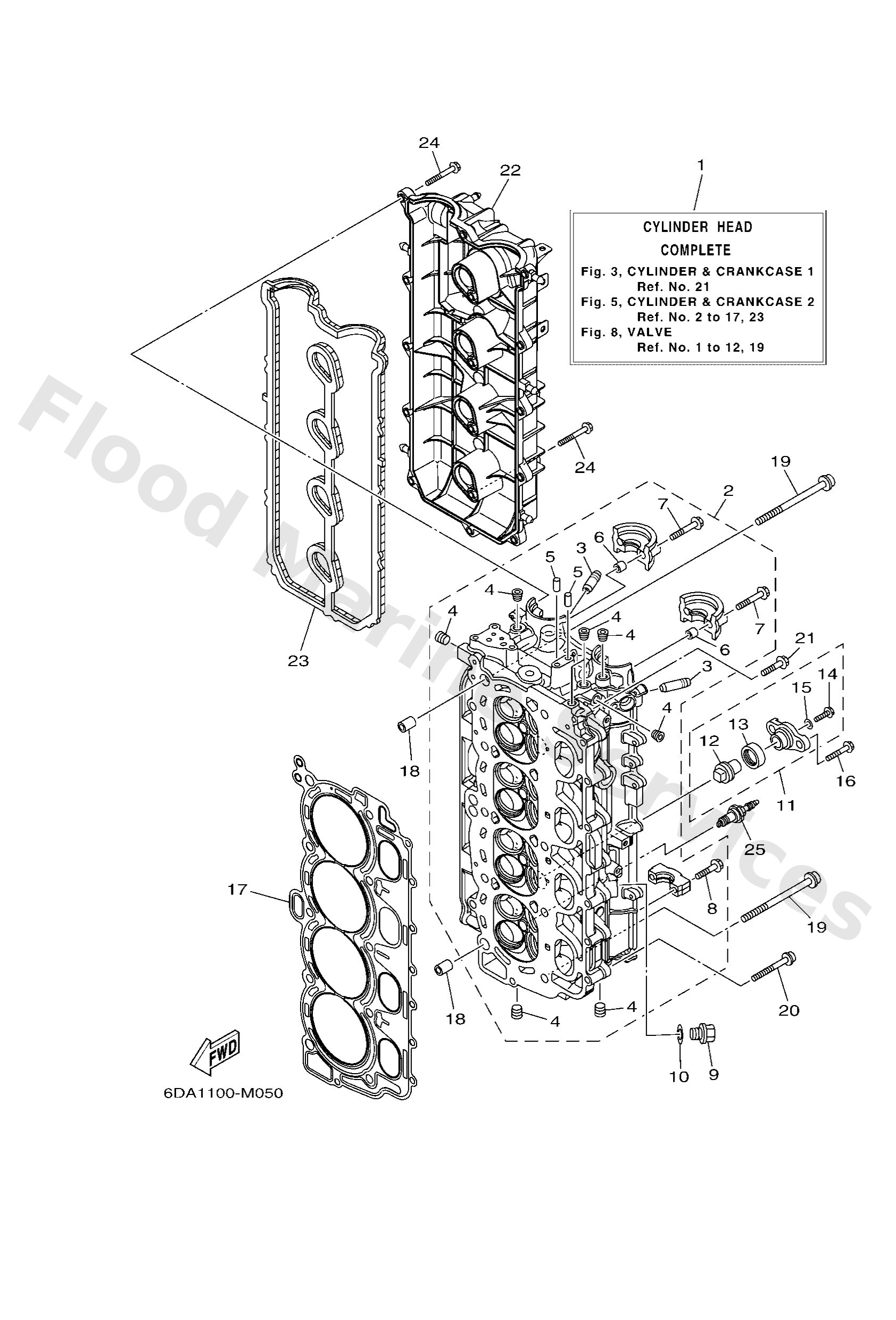

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6DAW009A009S
Cylinder head complete
Loading…
↗
2
6DA11110009S
Cylinder head assembly
Loading…
↗
3
6DA1113310
Guide, valve 1
Loading…
↗
4
9034451019
Plug, taper screw
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9180908006
Pin, dowel
Loading…
↗
7
9011907001
Bolt, with washer
Loading…
↗
8
9011907234
Bolt, with washer
Loading…
↗
9
9034014M06
Plug, straight screw(62y)
Loading…
↗
10
9043014115
Gasket (663)
Loading…
↗
11
67F1130100
Anode cover assembly
Loading…
↗
12
67F1132501
Anode
Loading…
↗
13
67F1132800
Grommet, anode
Loading…
↗
14
9010506M07
Bolt (689)
Loading…
↗
15
9043006M03
Gasket (6f5)
Loading…
↗
16
9589508025
Bolt, flange deep recess
Loading…
↗
17
6DA1118100
Gasket, cylinder head 1
Loading…
↗
18
9038711005
Collar
Loading…
↗
19
9015511002
Screw
Loading…
↗
20
9010508175
Bolt, flange
Loading…
↗
21
9010506151
Bolt, flange
Loading…
↗
22
6DA1119100
Cover, cylinder head 1
Loading…
↗
23
6DA1119300
Gasket, head cover 1
Loading…
↗
24
9589506030
Bolt, flange deep recess
Loading…
↗
25
9470200400
Plug, spark (lfr6a-11)
Loading…
↗
