FL225FET (2014)
CYLINDER & CRANKCASE 2

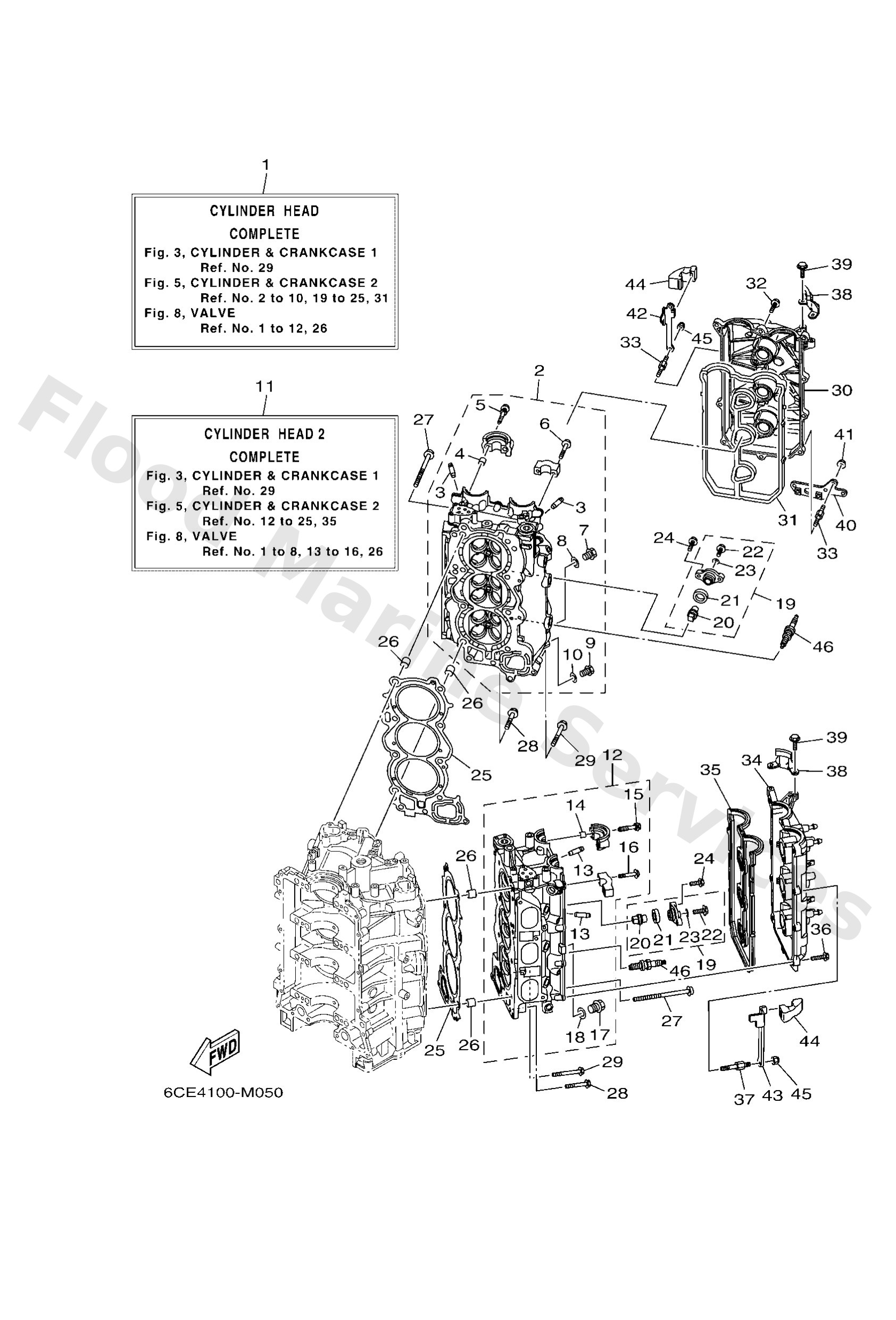

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6CEW009A009S
Cylinder head complete
Loading…
↗
2
6CE11110009S
Head, cylinder with ex valve
Loading…
↗
3
6S51113310
Guide, valve 1
Loading…
↗
4
9180908006
Pin, dowel
Loading…
↗
5
9011907001
Bolt, with washer
Loading…
↗
6
9011907234
Bolt, with washer
Loading…
↗
7
9034018M09
Plug, straight screw
Loading…
↗
8
9043018130
Gasket (1j7)
Loading…
↗
9
9034014M06
Plug, straight screw(62y)
Loading…
↗
10
9043014115
Gasket (663)
Loading…
↗
11
6CEW009C009S
Cylinder head 2 complete
Loading…
↗
12
6CE11120009S
Head, cylinder with ex valve
Loading…
↗
19
67F1130100
Anode cover assembly
Loading…
↗
20
67F1132501
Anode
Loading…
↗
21
67F1132800
Grommet, anode
Loading…
↗
22
9010506M07
Bolt (689)
Loading…
↗
23
9043006M03
Gasket (6f5)
Loading…
↗
24
9588508025
Bolt, flange
Loading…
↗
25
6CB1118100
Gasket, cylinder head 1
Loading…
↗
26
9038711005
Collar
Loading…
↗
27
9015511002
Screw
Loading…
↗
28
9010508175
Bolt, flange
Loading…
↗
29
9010508220
Bolt, flange
Loading…
↗
30
6CB1119102
Cover, cylinder head 1
Loading…
↗
31
6CB1119300
Gasket, head cover 1
Loading…
↗
32
9589506030
Bolt, flange deep recess
Loading…
↗
33
9010906277
Bolt
Loading…
↗
34
6CB1119202
Cover, cylinder head 2
Loading…
↗
35
6CB1119400
Gasket, head cover 2
Loading…
↗
38
6AW1514200
Guide 1
Loading…
↗
39
9588506014
Bolt, flange deep recess
Loading…
↗
40
6CB2134V00
Bracket
Loading…
↗
41
9017906M28
Nut(63v)
Loading…
↗
42
6CB1199800
Bracket 1
Loading…
↗
43
6CB1199900
Bracket 2
Loading…
↗
44
6CB4266200
Damper
Loading…
↗
45
9018506M07
Nut, self-locking(6e5)
Loading…
↗
46
9470200400
Plug, spark (lfr6a-11)
Loading…
↗
