FL225HET (2020)
CYLINDER & CRANKCASE 2

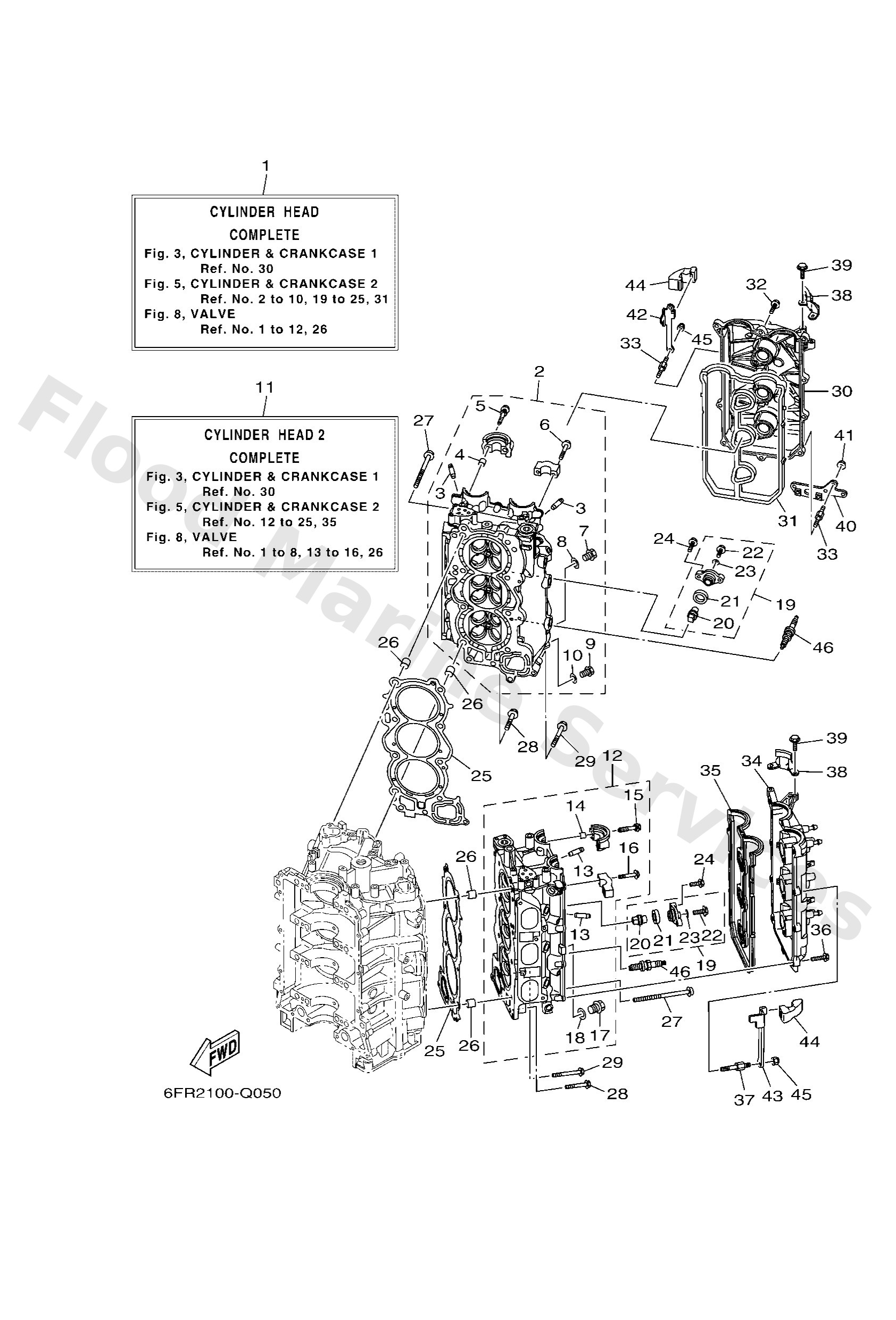

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6CEW009A039S
Cylinder head complete
Loading…
↗
2
6CE11110129S
Cylinder head assembly
Loading…
↗
3
6S51113310
5
Loading…
↗
4
9180908006
Pin, Dowel
Loading…
↗
5
9011907001
Bolt, With Washer
Loading…
↗
6
9011907234
Bolt, With Washer
Loading…
↗
7
9034018M09
6
Loading…
↗
8
90201186F1
Washer, plate (22f)
Loading…
↗
9
9034014M06
Plug, Straight Screw
Loading…
↗
10
9043014115
Gasket
Loading…
↗
11
6CEW009C039S
Cylinder head 2 complete
Loading…
↗
12
6CE11120129S
Cylinder head assembly 2
Loading…
↗
19
67F1130100
5
Loading…
↗
20
67F1132501
1
Loading…
↗
21
67F1132800
5
Loading…
↗
22
9010506M07
Bolt, Flange
Loading…
↗
23
9043006M03
Gasket
Loading…
↗
24
95D9508025
Bolt, flange deep recess
Loading…
↗
25
6CB1118100
Gasket, cylinder head 1
Loading…
↗
26
9038711005
5
Loading…
↗
27
9014911001
Screw
Loading…
↗
28
9010508175
Bolt, Flange
Loading…
↗
29
9010508220
Bolt, flange
Loading…
↗
30
6CB1119102
Cover, cylinder head 1
Loading…
↗
31
6CB1119300
Gasket, head cover 1
Loading…
↗
32
95D9506030
Bolt, flange deep recess
Loading…
↗
33
9010906277
Bolt
Loading…
↗
34
6CB1119202
Cover, cylinder head 2
Loading…
↗
35
6CB1119400
Gasket, head cover 2
Loading…
↗
38
6AW1514200
Guide 1
Loading…
↗
39
95D9506014
Bolt, flange deep recess
Loading…
↗
40
6CB2134V00
Bracket
Loading…
↗
41
9017906M28
Nut
Loading…
↗
42
6CB1199800
Bracket 1
Loading…
↗
43
6CB1199900
Bracket 2
Loading…
↗
44
6CB4266200
Damper
Loading…
↗
45
9018506M07
Nut, Self-Locking
Loading…
↗
46
9470200400
Plug, Spark (Ngk Lfr6A-11)
Loading…
↗
