FL250AET (2010)
CYLINDER & CRANKCASE 2

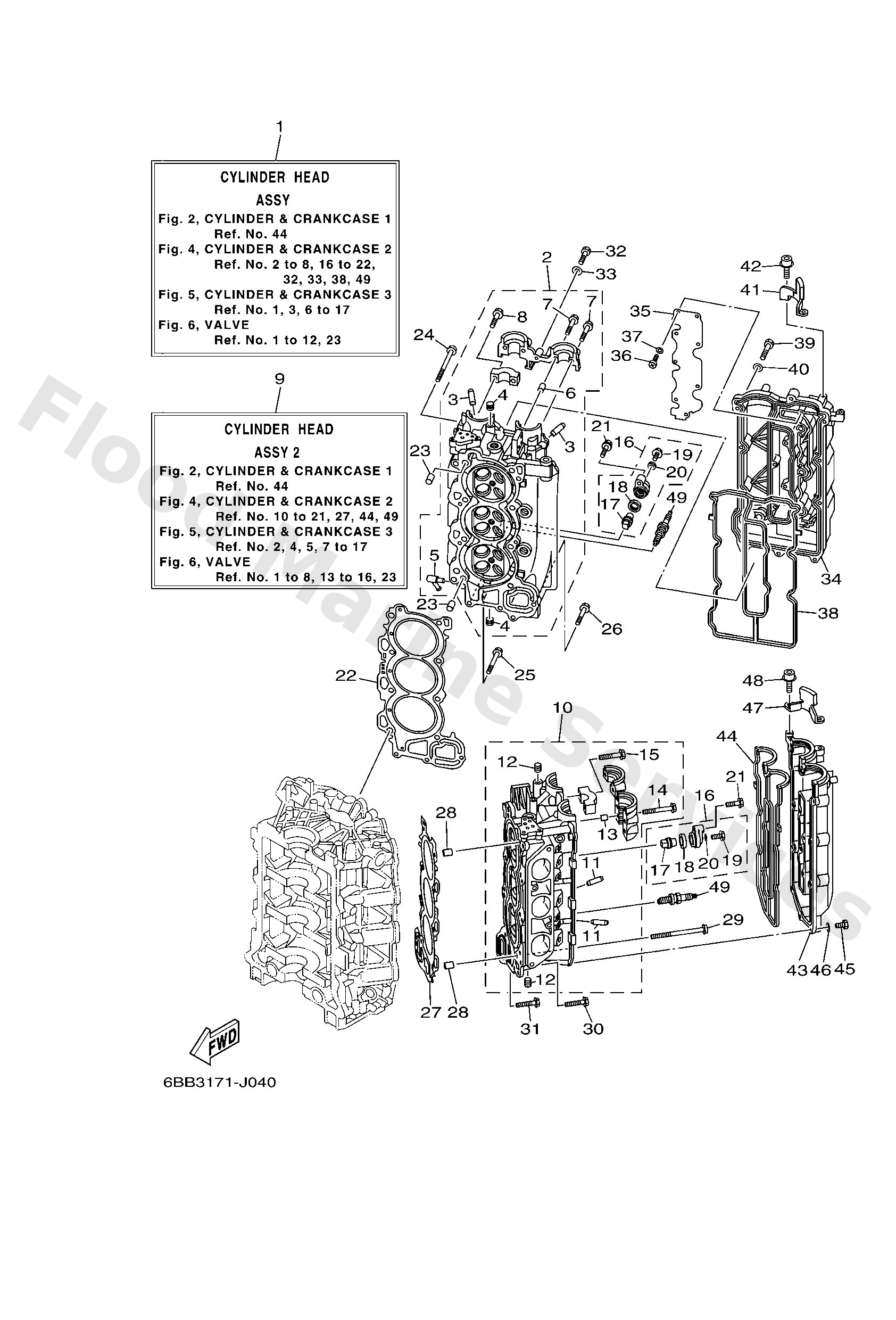

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6P2W009A029S
Cylinder head complete
Loading…
↗
2
6P211110019S
Cylinder head assembly
Loading…
↗
3
69J1113310
4
Loading…
↗
4
9034451019
5
Loading…
↗
5
6761137200
3
Loading…
↗
6
9180908006
Pin, Dowel
Loading…
↗
7
9011907001
Bolt, With Washer
Loading…
↗
8
9011907234
Bolt, With Washer
Loading…
↗
9
6P2W009C029S
Cylinder head 2 complete
Loading…
↗
10
6P211120019S
Cylinder head assembly 2
Loading…
↗
14
9011907235
Bolt/Washer-Cam Caps
Loading…
↗
16
69J1130100
5
Loading…
↗
17
67F1132501
1
Loading…
↗
18
67F1132800
5
Loading…
↗
19
9010506M07
Bolt, Flange
Loading…
↗
20
9043006M03
Gasket
Loading…
↗
21
9757508540
Bolt, With Washer
Loading…
↗
22
6P21118100
Gasket, cylinder head 1
Loading…
↗
23
9038710M08
4
Loading…
↗
24
9015510002
Screw, flat fillister
Loading…
↗
25
9011908M91
Bolt, With Washer
Loading…
↗
26
9011908021
Bolt, With Washer
Loading…
↗
27
6P21118200
Gasket, cylinder head 2
Loading…
↗
32
9709506030
Bolt
Loading…
↗
33
9299506600
10
Loading…
↗
34
6P211191009S
Cover, cylinder head 1
Loading…
↗
35
6P21113500
Plate, breather 3
Loading…
↗
36
9850704008
Screw, Pan Head
Loading…
↗
37
9290704600
Washer
Loading…
↗
38
6P21119300
Gasket, head cover 1
Loading…
↗
41
6P21514200
Guide 1
Loading…
↗
42
9011006150
Bolt, hexagon socket head
Loading…
↗
43
6P211192009S
Cover, cylinder head 2
Loading…
↗
44
6P21119400
Gasket, head cover 2
Loading…
↗
47
6P21514300
Guide
Loading…
↗
49
9470200400
Plug, Spark (Ngk Lfr6A-11)
Loading…
↗
