Yamaha Outboard Parts - CYLINDER & CRANKCASE 2 - FT50GET (2008) | Flood Marine

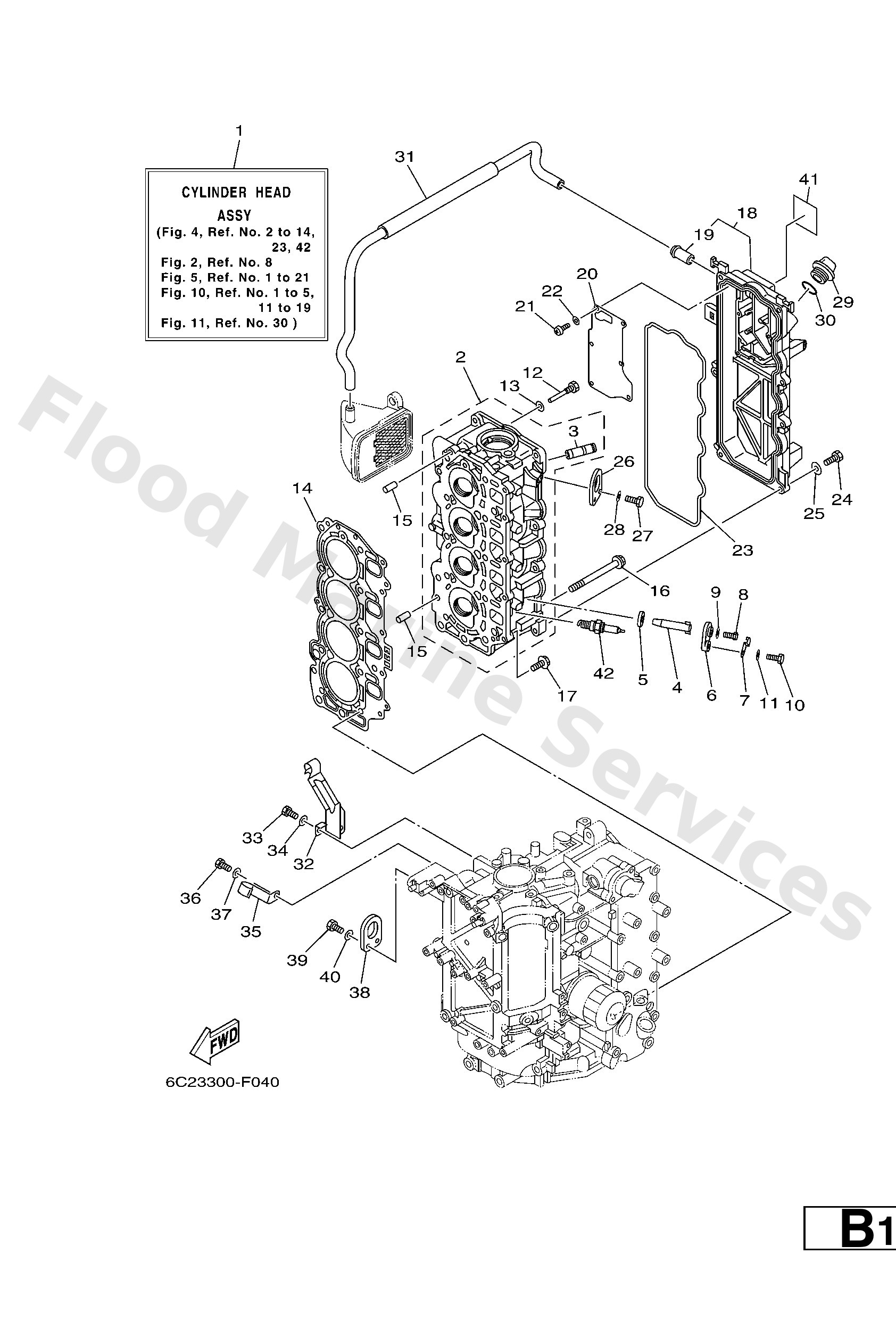

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

Reference
Description
Price


1
6C5W009A119S
Cylinder head complete
Loading…

↗
2
6C511111009S
Head, cylinder 1
Loading…

↗
3
62Y1113330
Guide, valve 1
Loading…

↗
4
62Y1132500
Anode
Loading…

↗
5
66M1132800
Grommet, anode
Loading…

↗
6
66M113270094
Cover, anode
Loading…

↗
7
66M1253500
Plate
Loading…

↗
8
9709505012
Bolt, hexagon
Loading…

↗
9
9299505600
Washer, plain (646)
Loading…

↗
10
9709506020
Bolt(7u8)
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
9010906M65
Bolt(62y)
Loading…

↗
13
9043006014
Gasket 256113960000
Loading…

↗
14
6C51118101
Gasket, cylinder head 1
Loading…

↗
15
9953008012
Pin, dowel(6g8)
Loading…

↗
16
9010509005
Bolt, flange
Loading…

↗
17
9011906MA3
Bolt, with washer
Loading…

↗
18
6C511191019S
Cover, cylinder head 1
Loading…

↗
19
62Y1448500
Pipe, joint
Loading…

↗
20
6C51116800
Cover, breather
Loading…

↗
21
9850704010
Screw, pan head(6g8)
Loading…

↗
22
9290704600
Washer(jf2)
Loading…

↗
23
62Y1135600
Seal, cylinder 2
Loading…

↗
26
62Y1111900
Hanger, engine
Loading…

↗
29
6G81536300
Plug, oil
Loading…

↗
30
9321024M79
O-ring
Loading…

↗
31
6C51531A01
Hose, breather 1
Loading…

↗
32
6C51537800
Holder
Loading…

↗
33
9709506014
Bolt(gj3)
Loading…

↗
35
6C51537811
Holder
Loading…

↗
41
62Y1213860
Mark, Caution
Loading…

↗
42
9470200418
Plug, spark (dpr6eb-9)
Loading…

↗
