FT50GET (2010)
CYLINDER & CRANKCASE 2

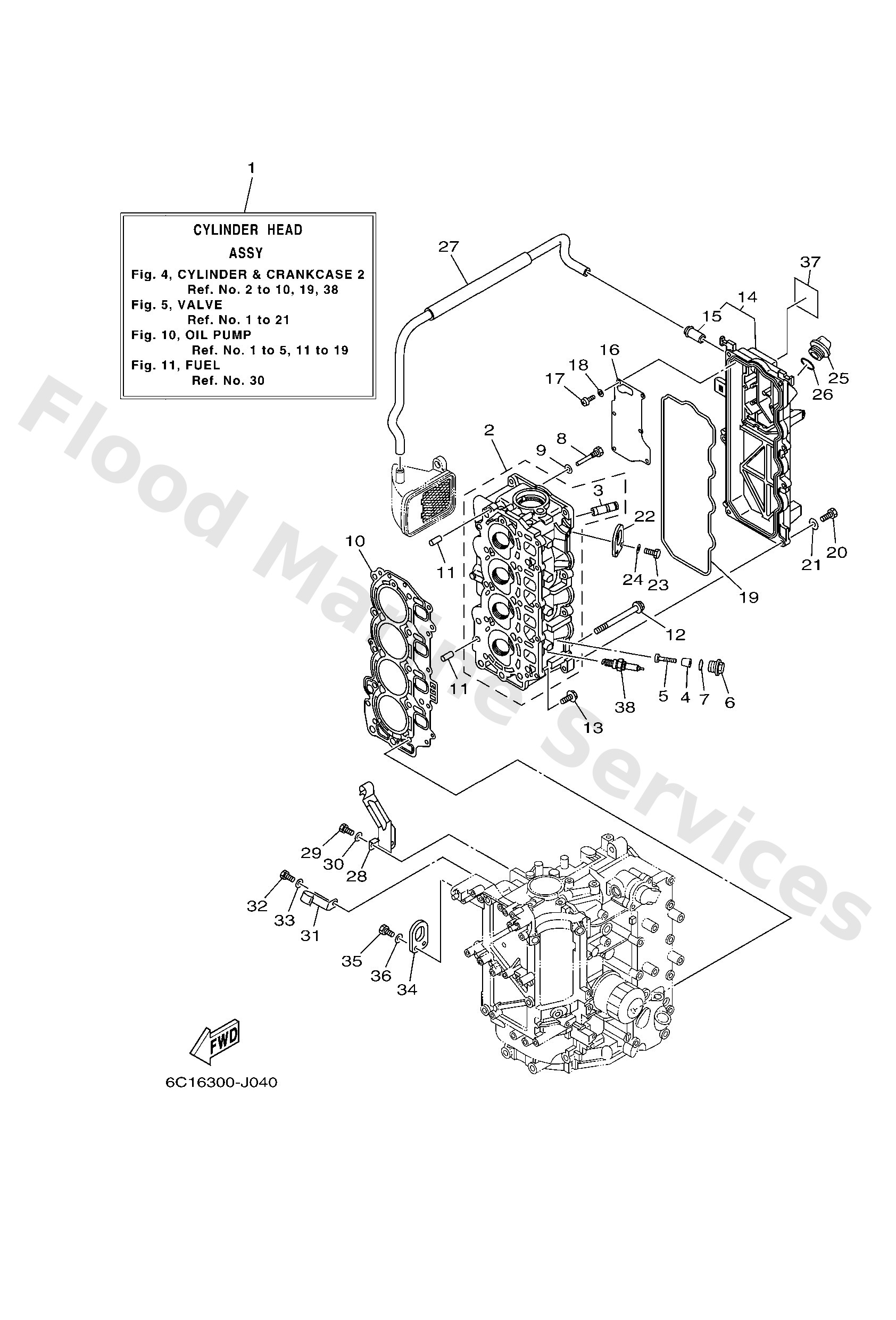

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6C5W009A129S
Go to P/N ) PE0-OM-100005
Cylinder head complete
Loading…
↗
2
6C511111019S
Go to P/N ) PE0-OM-100005
Head, cylinder 1
Loading…
↗
3
62Y1113330
Guide, valve 1
Loading…
↗
4
6G81132500
Go to P/N ) PE0-OM-100005
Anode
Loading…
↗
5
9788005025
Go to P/N ) PE0-OM-100005
Screw, panhead (a93)
Loading…
↗
6
6G81119701
Go to P/N ) PE0-OM-100005
Plug, blind
Loading…
↗
7
9321013M63
Go to P/N ) PE0-OM-100005
O-ring (6g8)
Loading…
↗
8
9010906M65
Bolt(62y)
Loading…
↗
9
9043006014
Gasket 256113960000
Loading…
↗
10
6C51118101
Gasket, cylinder head 1
Loading…
↗
11
9953008012
Pin, dowel(6g8)
Loading…
↗
12
9010509005
Bolt, flange
Loading…
↗
13
9011906MA3
Bolt, with washer
Loading…
↗
14
6C511191019S
Cover, cylinder head 1
Loading…
↗
15
62Y1448500
Pipe, joint
Loading…
↗
16
6C51116800
Cover, breather
Loading…
↗
17
9850704010
Screw, pan head(6g8)
Loading…
↗
18
9290704600
Washer(jf2)
Loading…
↗
19
62Y1135600
Seal, cylinder 2
Loading…
↗
20
9709506020
Bolt(7u8)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
62Y1111900
Hanger, engine
Loading…
↗
25
6G81536300
Plug, oil
Loading…
↗
26
9321024M79
O-ring
Loading…
↗
27
6C51531A01
Hose, breather 1
Loading…
↗
28
6C51537800
Holder
Loading…
↗
29
9709506014
Bolt(gj3)
Loading…
↗
31
6C51537811
Holder
Loading…
↗
37
62Y1213860
Mark, Caution
Loading…
↗
4
9470200418
(NGK DPR6EB)
Plug, spark (dpr6eb-9)
Loading…
↗
1
6C5W009A119S
Cylinder head complete
Loading…
↗
2
6C511111009S
Head, cylinder 1
Loading…
↗
4
62Y1132500
Anode
Loading…
↗
5
66M1132800
Grommet, anode
Loading…
↗
5
item_description
Loading…
↗
6
66M113270094
Cover, anode
Loading…
↗
7
66M1253500
Plate
Loading…
↗
8
9709505012
Bolt, hexagon
Loading…
↗
9
9299505600
Washer, plain (646)
Loading…
↗
4
62Y12138**
-
Loading…
↗
