FT60GET (2023)
CYLINDER & CRANKCASE 2

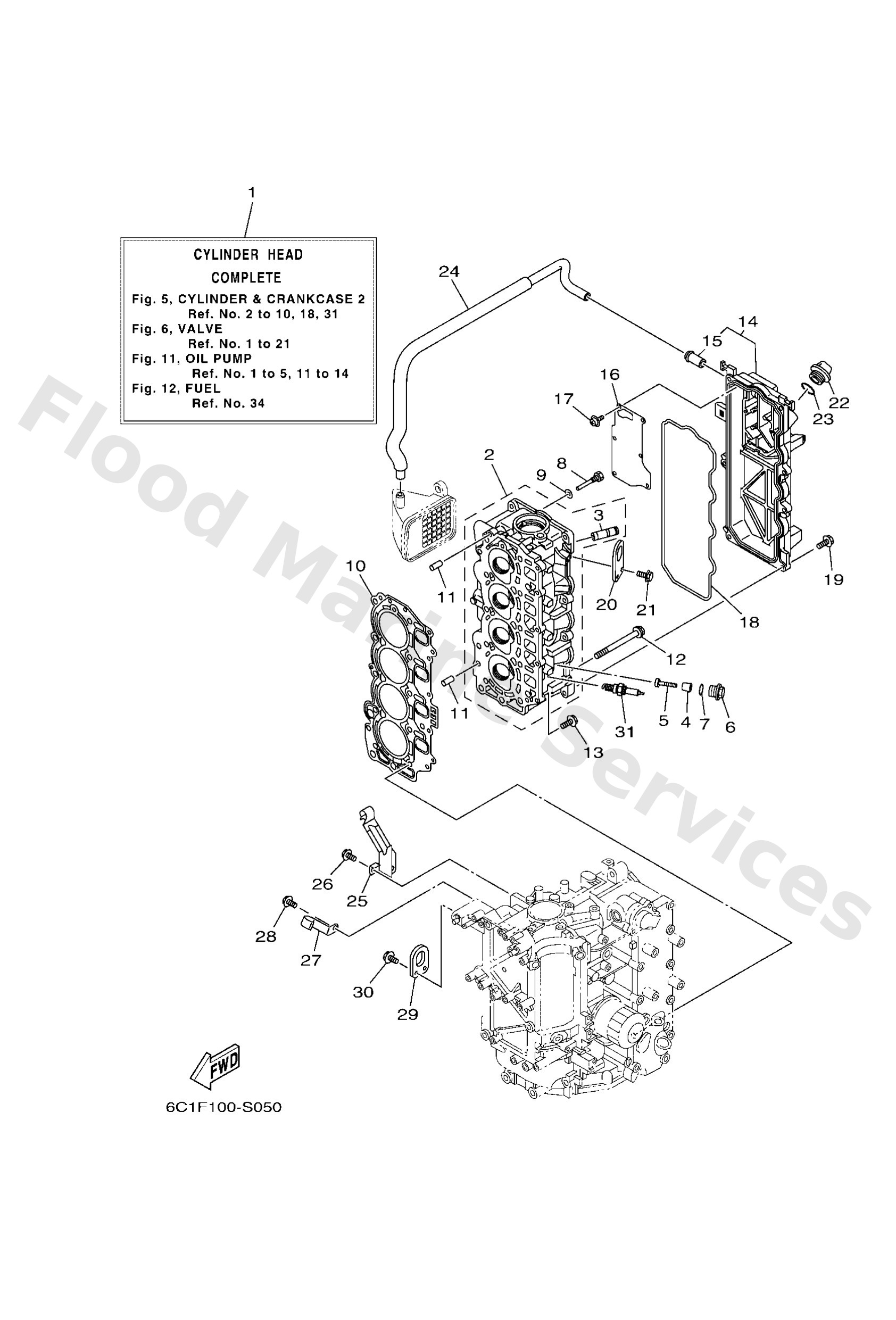

Diagram: CYLINDER & CRANKCASE 2
Parts List
Reference
Description
Price
1
6C5W009A139S
Cylinder head complete
Loading…
↗
2
6C511111209S
Head, cylinder 1
Loading…
↗
3
62Y1113331
Guide, valve 1
Loading…
↗
4
6G81132500
Anode
Loading…
↗
5
9898005025
Screw, panhead (a93)
Loading…
↗
6
6G811197A0
Plug, blind
Loading…
↗
7
9321013M63
O-ring (6g8)
Loading…
↗
8
9010906M65
Bolt(62y)
Loading…
↗
9
9043006014
Gasket 256113960000
Loading…
↗
10
6C51118101
Gasket, cylinder head 1
Loading…
↗
11
9953008012
Pin, dowel(6g8)
Loading…
↗
12
9010509009
Bolt, flange
Loading…
↗
13
9011906MA3
Bolt, with washer
Loading…
↗
14
6C511191029S
Cover, cylinder head 1
Loading…
↗
15
62Y1448500
Pipe, joint
Loading…
↗
16
6C51116800
Cover, breather
Loading…
↗
17
9760704210
Screw, pan head with washer
Loading…
↗
18
62Y1135600
Seal, cylinder 2
Loading…
↗
19
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
20
6CJ1111900
Hanger, engine
Loading…
↗
22
6G81536300
Plug, oil
Loading…
↗
23
9321024M79
O-ring
Loading…
↗
24
6C51531A10
Hose, breather 1
Loading…
↗
25
6C51537800
Holder
Loading…
↗
26
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
27
6C51537811
Holder
Loading…
↗
29
62Y1111900
Hanger, engine
Loading…
↗
31
9470200418
Plug, spark (dpr6eb-9)
Loading…
↗
